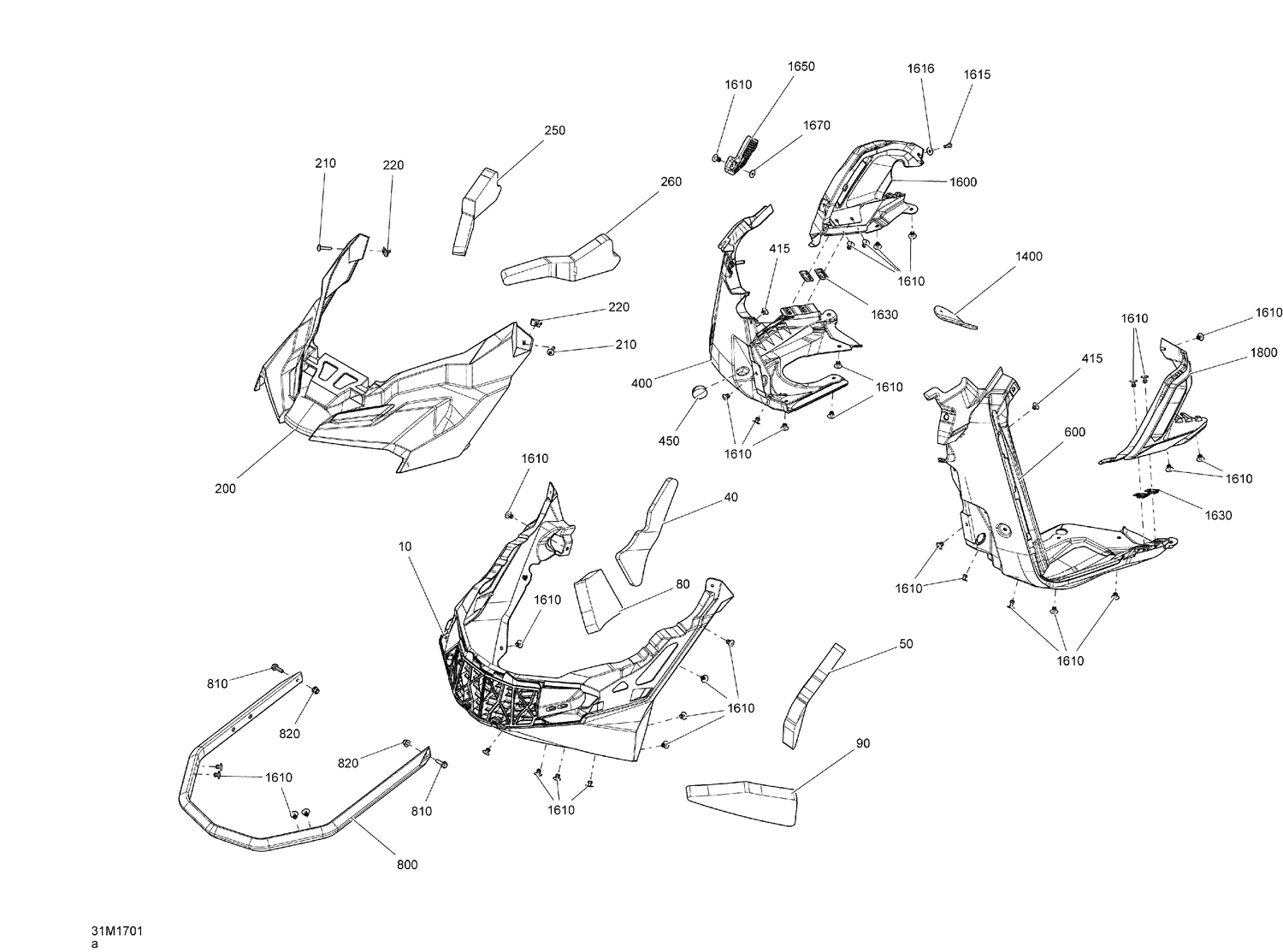

09- Bottom Pan
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502007172 | Black Front Bottom Pan |
| 40 | 502007243 | RH Bottom Pan Upper Foam |
| 50 | 502007244 | LH Bottom Pan Upper Foam |
| 80 | 502007245 | RH Bottom Pan Lower Foam |
| 90 | 502007246 | LH Bottom Pan Lower Foam |
| 200 | 502007173 | Black Bottom Pan Cap |
| 210 | 250000587 | Torx Screw M5 X 26 |
| 220 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 250 | 502007263 | RH Bottom Pan Cap Foam |
| 260 | 502007264 | LH Bottom Pan Cap Foam |
| 400 | 502007340 | Black RH Bottom Pan |
| 415 | 293150103 | Pop Rivet 3/16" |
| 450 | 414916600 | Black, Nylon Cap |
| 600 | 502007175 | Black LH Bottom Pan |
| 800 | 860201167 | Black Front Bumper This part replaces 502007176. |
| 810 | 207662044 | Hex. Flange Screw M6 X 20 |
| 820 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1400 | 502006935 | Snow Deflector |
| 1600 | 502007306 | Black - RH Side Bottom Pan Panel |
| 1610 | 293150104 | Pop Rivet 3/16" |
| 1615 | 250000652 | Socket Screw M5 X .80 X 16 |
| 1616 | 250200025 | Washer M5 |
| 1630 | 517305109 | Rivet Plate |
| 1650 | 517305280 | Stopper Bumper |
| 1670 | 517124300 | Washer |
