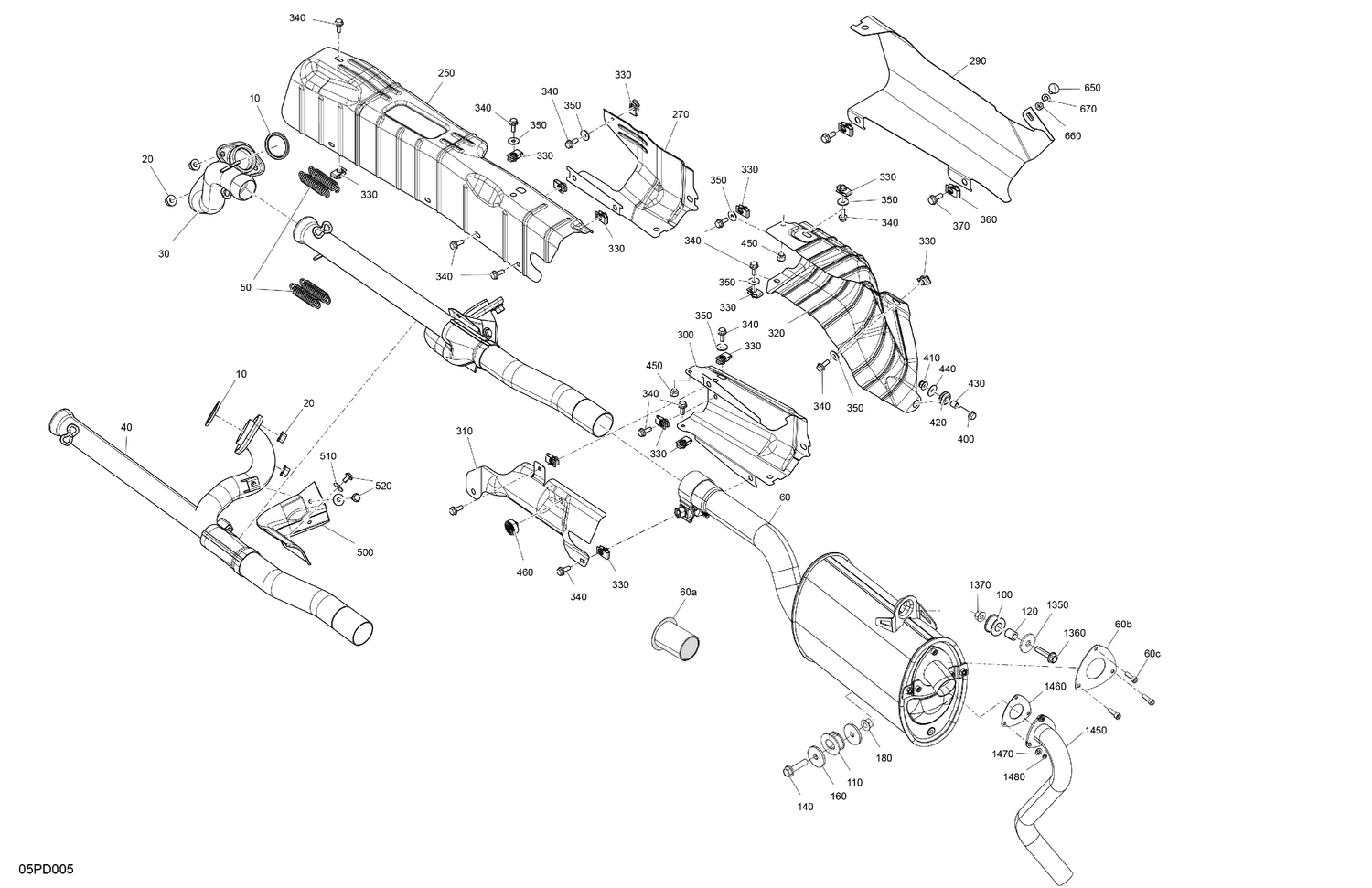

02- Engine - Exhaust
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707600317 | Gasket |
| 20 | 233081436 | Hex. Flange Nut |
| 30 | 707600627 | Front Head Pipe |
| 40 | 707601456 | Rear Head Pipe |
| 50 | 415107100 | Spring |
| 60a | 707601803 | Spark Arrester |
| 60b | 707601799 | Gasket |
| 60c | 205062060 | Socket Head Screw M6 X 20 |
| 100 | 707603323 | Vibration Damper |
| 110 | 707600448 | Rubber |
| 120 | 293900116 | Spacer Bushing |
| 140 | 207683544 | Hex. Flange Screw M8 X 35 |
| 160 | 250200158 | Flat Washer M8 |
| 180 | 233081436 | Hex. Flange Nut |
| 250 | 707603724 | Heat Shield |
| 270 | 707601484 | Protector |
| 290 | 707600996 | Heat Shield |
| 300 | 707601485 | Protector |
| 310 | 707602604 | Heat Shield |
| 320 | 707601425 | Protector |
| 330 | 250100198 | Panel Nut M6 X 1.0 |
| 340 | 207661644 | Hex. Flange Screw M6 X 16 |
| 350 | 234062410 | Flat Washer 6 mm |
| 360 | 250100198 | Panel Nut M6 X 1.0 |
| 370 | 207661644 | Hex. Flange Screw M6 X 16 |
| 400 | 207662544 | Hex. Flange Screw M6 X 25 |
| 410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 420 | 293720130 | Overmolded Grommet |
| 430 | 293900105 | Bushing |
| 440 | 224060201 | Flat Washer |
| 450 | 293830005 | Rubber Bumper |
| 460 | 708000506 | Rubber Stopper |
| 500 | 707600932 | Pipe Protector |
| 510 | 250200082 | Flat Washer |
| 520 | 250001090 | Hex. Flange Screw M6 X 12 S.Grip |
| 650 | 207761244 | Carriage Bolt M6 X 12 |
| 660 | 232561434 | Elastic Stop Nut M6 |
| 670 | 234061410 | Flat Washer 6 mm |
| 1350 | 503032900 | Washer |
| 1360 | 207683534 | Hex. Flange Screw M8 X 35 |
| 1370 | 233081436 | Hex. Flange Nut |
| 1450 | 707601604 | Welded Pipe |
| 1460 | 707601799 | Gasket |
| 1470 | 234062410 | Flat Washer 6 mm |
