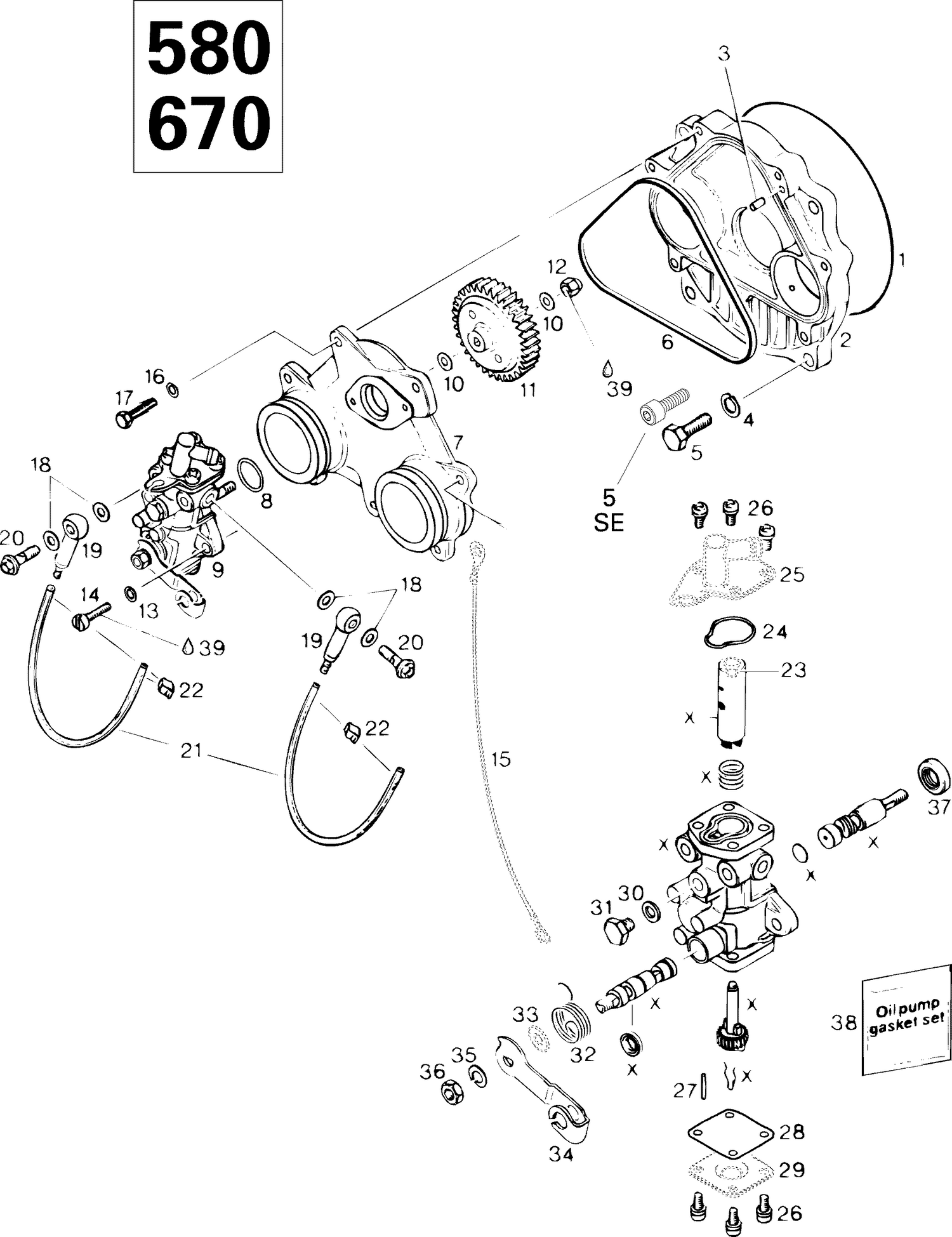

02- Oil Injection System 670SE
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420831360 | O-Ring |
| 2 | 420910312 | Rotary Valve Cover Ass'y |
| 3 | 420929650 | Drive Pin 5 X 10 |
| 4 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 5 | 205082044 | Socket Head Screw M8 X 20 This part replaces 222982065. |
| 6 | 420831700 | Rubber Ring |
| 7 | 420910320 | Oil Pump Mounting Flange |
| 8 | 420230370 | O-Ring |
| 9 | 420995523 | Oil Pump Ass‘y |
| 10 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 11 | 420935940 | Oil Pump Gear 44 Teeth |
| 12 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 13 | 420945750 | Lock Washer |
| 14 | 420240761 | Cylindrical Slotted Screw M5 x 16 |
| 15 | Not | Available As Spare Part - Mass Cable Ass'y |
| 16 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 17 | 207162044 | Hex. Screw M6 X 20 This part replaces 222062065. |
| 18 | 404146600 | Sealing Washer |
| 19 | 420956010 | Valve Ass’Y |
| 20 | 404146800 | Banjo Bolt M6 X 16 |
| 21 | 219704404 | Oil Hose 1500Mm Long |
| 22 | 420853840 | Clamp |
| 23 | Not | Available As Spare Part - Retainer |
| 24 | 420230475 | O-Ring |
| 25 | Not | Available As Spare Part - Plate |
| 26 | 420241975 | SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership |
| 27 | Not | Available As Spare Part - Pin |
| 28 | 420850200 | Gasket |
| 29 | Not | Available As Spare Part - Cam Casing Plate |
| 30 | 420227505 | GASKET - Call your local BRP dealership |
| 31 | 420841580 | Hex. Screw M6 X 8 |
| 32 | 420838022 | Spring |
| 33 | Not | Available As Spare Part - Washer |
| 34 | 420848253 | Lever |
| 35 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 36 | 420242621 | Hex. Nut M6 |
| 37 | 420850230 | Oil Seal |
| 38 | 420995045 | GASKET SET - Call your local BRP dealership |
