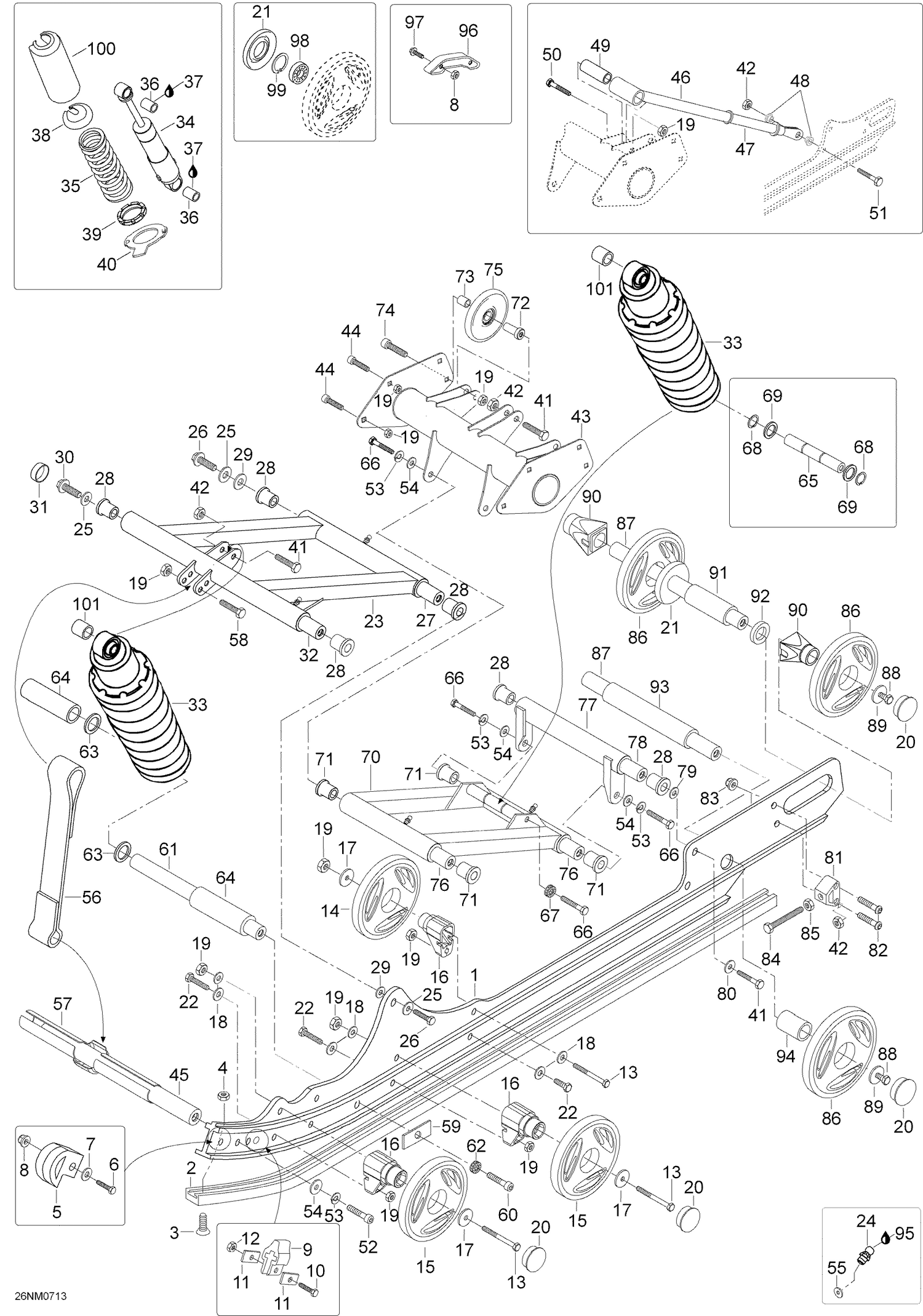

08- Rear Suspension

08- Rear Suspension

Parts (100)

RefPart NumberDescription
1 605253361 Runner
2 605353362 Shoe
3 40059 Socket head screw M6 x 60
4 33010 Lock Nut M6 (1=10Pcs)
5 605348954 Runner protector
6 40031 Hex. screw M6 x 25
7 20003 Washer A6,4
8 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Hex. screw M6 x 30
11 548470 Washer
12 33010 Lock Nut M6 (1=10Pcs)
13 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
14 503191316 Idler wheel, (141)
15 503191313 Idler wheel, (141)
16 605451906 Support
17 211200041 Washer 8mm
18 234081410 Flat Washer 8 mm This part replaces 20104.
19 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
20 570063600 Protector
21 503190434 Labyrinth Seal
22 40037 Hex. screw M8 x 25
23 5145588 Front arm
24 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
25 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
26 40099 Hex. screw M12 x 45
27 605352383 Shaft
28 31024 Cushion
29 20040 Washer
30 40243 Hex. screw M12 x 60
31 5448025 Cap
32 5346135 Shaft
34 23233 Shock, rear arm
34 605623010 Shock, front arm
35 25058 Spring, front arm
35 25063 SPRING - Call your local BRP dealership
36 31094 Cushion
37 320006 Loctite 641, 50ml
38 230076 Spring stopper
39 230078 Adjusting Cam
40 605348748 ARM ADJUSTING ASS'Y - Call your local BRP dealership
41 40016 Hex. screw M10 x 45
42 33012 Elastic stop nut M10
43 605253615 Upper arm
44 205982086 SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership This part replaces 40351.
45 5343471 Shaft
46 5347851 Poker tube
48 5447853 SLIDE BEARING - Call your local BRP dealership
49 5447848 Bearing sleeve - Call your local BRP dealership
50 40011 Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership
51 40042 Screw M10 x 35
52 40134 Screw Socket HD.DIN 912
53 20047 Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership
54 20105 Washer, hardened, 10mm
55 20003 Washer A6,4
56 605449385 Stopper strap
57 605349381 Retainer for stopper strap - Call your local BRP dealership
58 207084544 Hex. Screw M8 X 45 This part replaces 40008.
59 605449294 Support Plate
60 40371 Socket head screw M12 x 55
61 605350690 Shaft
62 20074 Lock washer 12mm
63 31013 Shim Ring
64 605349896 Sleeve
65 605451897 REARSHOCK SHAFT - Call your local BRP dealership
66 40014 Hex. screw M10 x 40
67 20068 Lock washer 10mm
68 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
69 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
70 605349313 Rear arm
71 31027 Cushion
72 5447945 Sleeve
73 5447946 Sleeve
74 605640006 Socket head screw M8 x 90
75 46027 Idler Wheel - Call your local BRP dealership
76 5346865 SHAFT - Call your local BRP dealership
77 5345535 Rear arm
78 5346900 Shaft
79 20116 Washer
80 512056700 Lock washer
81 5341633 Tensioner
82 40392 Socket head screw M8 x 45
83 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
84 40239 Hex. screw M10 x 100
85 232006414 Hex. Nut M10 This part replaces 33004.
86 503191110 Idler fheel 165/Full Moon
87 503190429 Rear Axle
88 40050 Hex. screw M10 x 35
89 503190439 Washer
90 503190428 Rear Wheel Spacer
91 503196317 Spacer This part replaces 503190430.
92 503190432 Washer
93 605353255 Sleeve
94 605353256 Sleeve
95 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
96 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
97 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
98 293350115 Ball Bearing This part replaces 503190795.
99 371901700 CIRCLIP - Call your local BRP dealership
100 5346754 Shock protector
