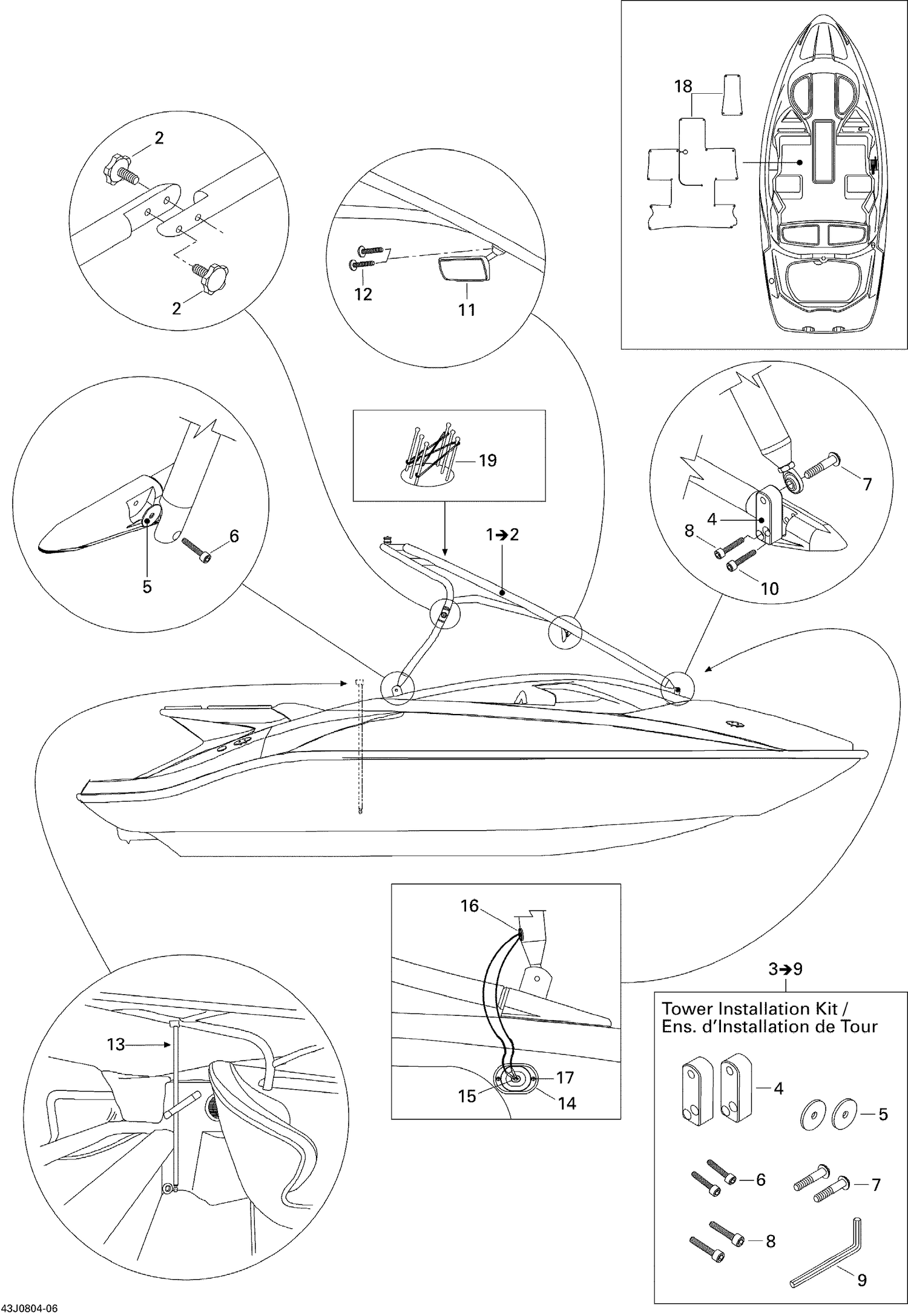

| Ref | Part Number | Description |
|---|
| 2 |
204072011 |
Soft Touch Knob |
| 4 |
Not |
Available As Spare Part - Front Insert |
| 5 |
204100158 |
Washer, Nylon |
| 6 |
204100094 |
SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership |
| 7 |
Not |
Available As Spare Part - Socket Head Screw 1/2"-13 x 1" |
| 8 |
Not |
Available As Spare Part - Socket Head Screw 3/18"-16 x 1-1/4" |
| 9 |
Not |
Available As Spare Part - Allen Wrench 5/16" |
| 10 |
204100194 |
SOCKET SCREW, 3/8-16 X 1 - Call your local BRP dealership |
| 11 |
295100386 |
SKI MIRROR - Call your local BRP dealership This part replaces 204071420. |
| 12 |
204100129 |
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership |
| 13 |
204072003 |
TOWER SUPPORT - Call your local BRP dealership |
| 14 |
204072417 |
Recess Cable Cup |
| 15 |
204072418 |
Grommet |
| 16 |
204072437 |
Grommet |
| 17 |
250000092 |
Phillips Tapping Screw 3.5 X 19 |
| 18 |
204950106 |
COCKPIT CARPET - Call your local BRP dealership |
