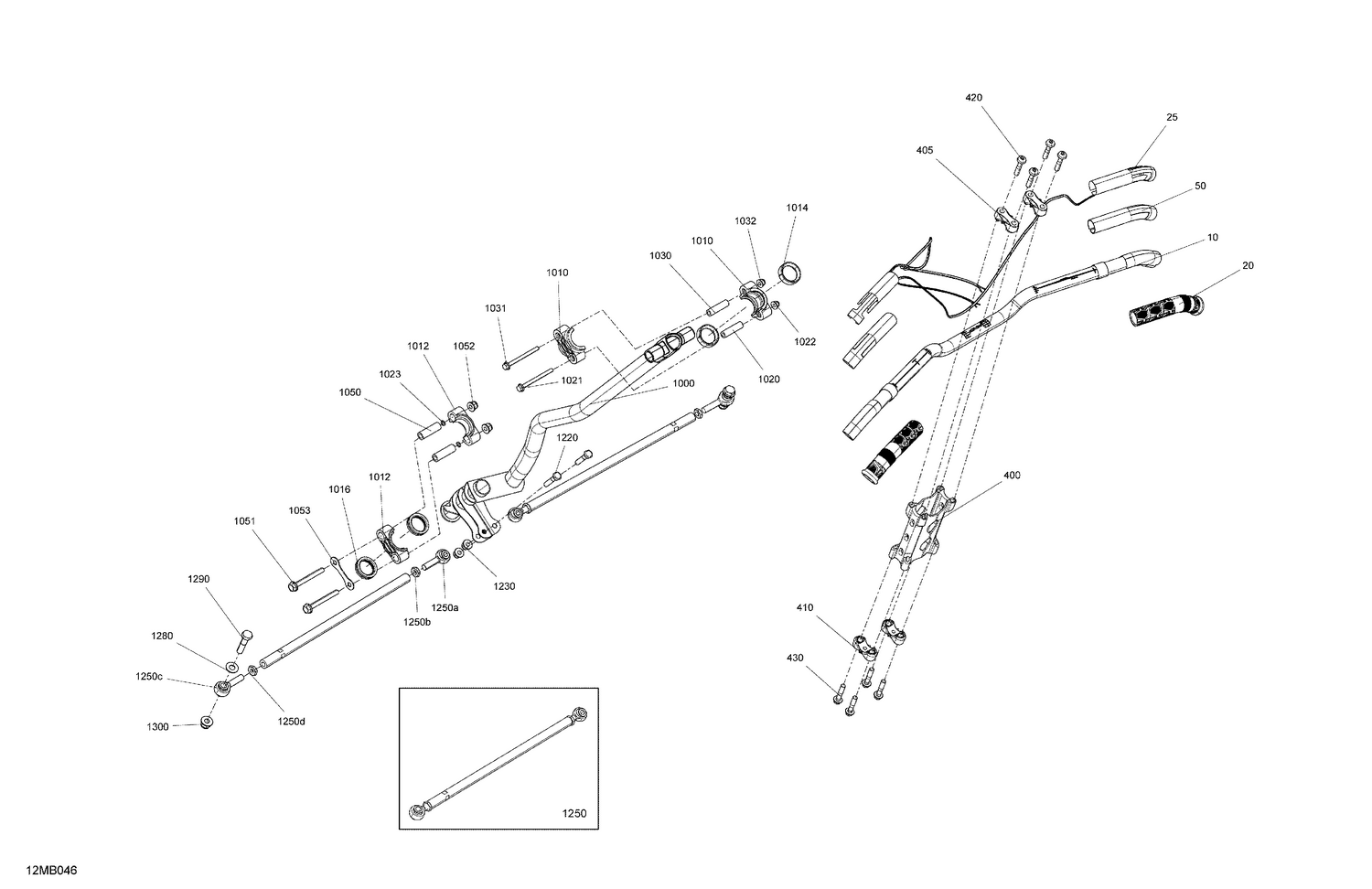

03- Mechanic - Steering
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506152825 | Aluminum Handle Bar |
| 20 | 506152560 | Grip 148mm |
| 25 | 506152856 | Heated Film |
| 50 | 506153176 | Thermal Insulation |
| 405 | 506152894 | Steering Support |
| 410 | 506152894 | Steering Support |
| 420 | 250000904 | Button Head Torx Screw M8 X 38 |
| 430 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 1010 | 506152219 | Upper Half Housing |
| 1012 | 506153048 | Lower Half Housing |
| 1014 | 506152292 | Upper Vibration Ring |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1021 | 250001114 | Hex. Flange Screw M6 x 75 |
| 1022 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1023 | 293300123 | O-Ring |
| 1030 | 506152297 | Housing Bushing |
| 1031 | 250001114 | Hex. Flange Screw M6 x 75 |
| 1032 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1050 | 506152937 | Housing Bushing |
| 1051 | 207687044 | Hex. Flange Screw M8 X 70 |
| 1052 | 233281416 | Hex. Elastic Flange Nut M8 |
| 1053 | 506152938 | Stopper Plate |
| 1220 | 207084044 | Hex. Screw M8 X 40 |
| 1230 | 233281416 | Hex. Elastic Flange Nut M8 |
| 1250a | 506152081 | LH Thread Ball Joint |
| 1250b | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 1250c | 506152019 | RH Threaded Ball Joint |
| 1250d | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1280 | 506152582 | Washer |
| 1290 | 207004544 | Hex. Screw M10 X 45 |
