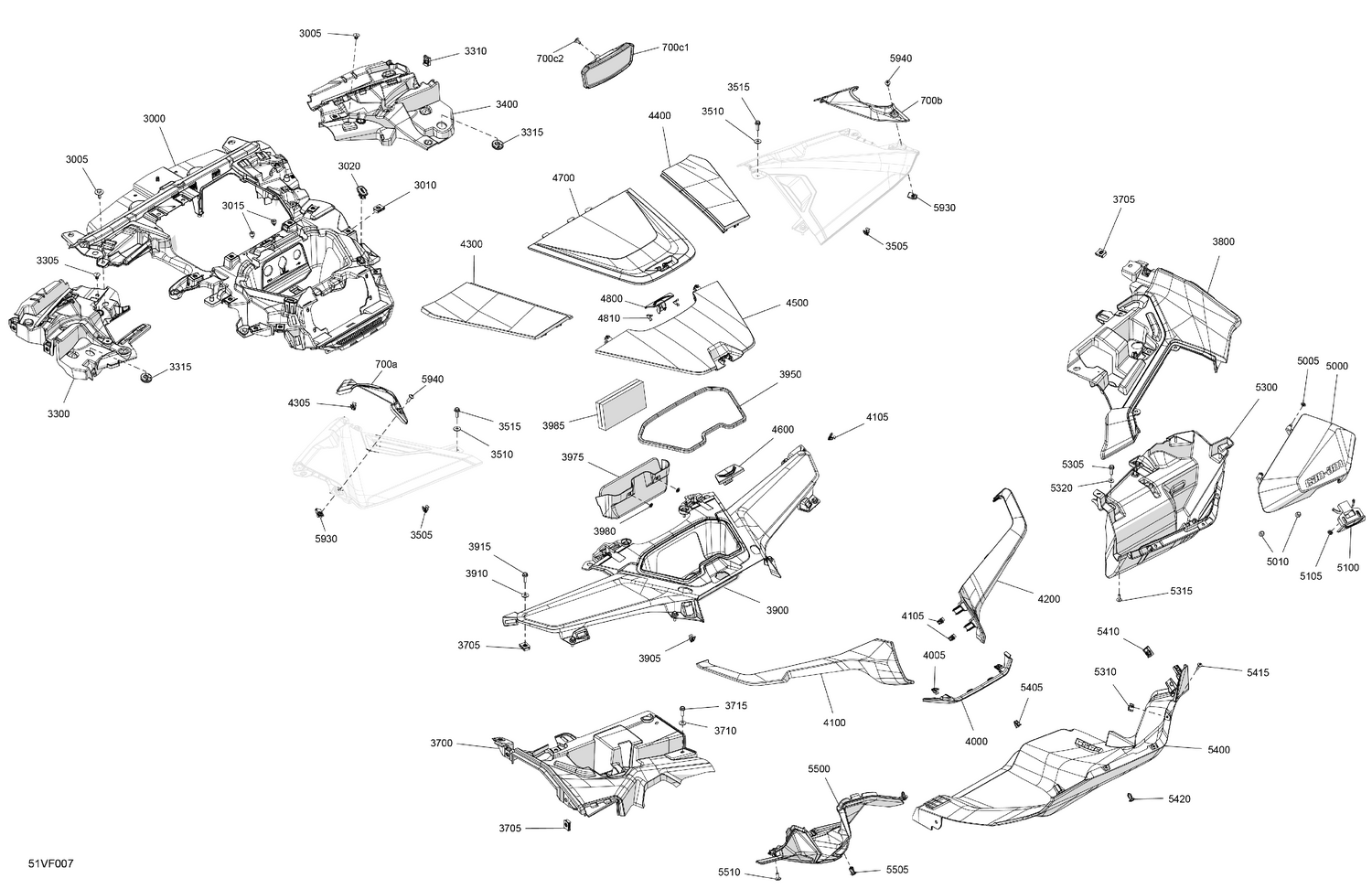

07- Cab Interior - Dashboard
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 700a | 707901084 | LH Front Cage Trim |
| 700b | 707901085 | RH Front Cage Trim |
| 700c1 | 707900502 | Central Mirror |
| 700c2 | 250000767 | Torx Truss Screw M6 X 12 |
| 3000 | 707901264 | Central Dashboard Support |
| 3005 | 250001165 | Hex Sems Screw M6X20 |
| 3010 | 250100208 | Panel Nut M6 X 1.0 |
| 3015 | 293830005 | Rubber Bumper |
| 3020 | 269801838 | Push Cap Linq Link Light |
| 3300 | 707901019 | LH Front Dashboard Support |
| 3305 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 3310 | 250100208 | Panel Nut M6 X 1.0 |
| 3315 | 705010718 | Grommet |
| 3400 | 707901020 | RH Front Dashboard Support |
| 3505 | 517306478 | Clip |
| 3510 | 234062670 | Stainless Steel Flat Washer |
| 3515 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 3700 | 715010386 | LH Front Dashboard Kit |
| 3705 | 250100208 | Panel Nut M6 X 1.0 |
| 3710 | 234062670 | Stainless Steel Flat Washer |
| 3715 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 3800 | 707900948 | RH Rear Dashboard |
| 3900 | 715010383 | Central Dashboard Kit |
| 3905 | 517306478 | Clip |
| 3910 | 234062670 | Stainless Steel Flat Washer |
| 3915 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 3950 | 293250587 | Cover Gasket |
| 3975 | 707901158 | Storage Compartment |
| 3980 | 250100163 | Pressure Nut |
| 3985 | 264000135 | Sealed Compartment Foam |
| 4000 | 707900971 | Deep Black, Front Central Trim |
| 4005 | 517306478 | Clip |
| 4100 | 707900967 | Deep Black, LH Panel Trim |
| 4105 | 517306478 | Clip |
| 4200 | 707900968 | Deep Black, RH Front Trim |
| 4300 | 707900958 | Deep Black, LH Central Panel Trim |
| 4305 | 517306478 | Clip |
| 4400 | 707900959 | Deep Black, RH Central Panel Trim |
| 4500 | 707900962 | Deep Black, Central Box Cover |
| 4600 | 707901351 | Lid Latch |
| 4700 | 707901337 | Front Fuse Box Cover |
| 4800 | 707901351 | Lid Latch |
| 4810 | 293730121 | Clip |
| 5000 | 707900918 | Glove Box Cover |
| 5005 | 250100163 | Pressure Nut |
| 5010 | 293830005 | Rubber Bumper |
| 5100 | 707901055 | Glove Box Latch |
| 5105 | 250100163 | Pressure Nut |
| 5300 | 707901054 | Lower Glove Box |
| 5305 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 5310 | 250000958 | Panel Nut M5 X 0.8 |
| 5315 | 250000959 | Screw PT Type K-50 X 16 |
| 5320 | 234062670 | Stainless Steel Flat Washer |
| 5400 | 707900973 | RH Interior Panel |
| 5405 | 517306478 | Clip |
| 5410 | 250100208 | Panel Nut M6 X 1.0 |
| 5415 | 250000724 | Torx Screw M5 X 20 |
| 5420 | 293150230 | Tuflok Plastic Rivet |
| 5500 | 709402715 | Protective Trim |
| 5505 | 293150230 | Tuflok Plastic Rivet |
| 5510 | 250000721 | Torx Truss Screw M6 X 16 |
| 5930 | 250000958 | Panel Nut M5 X 0.8 |
