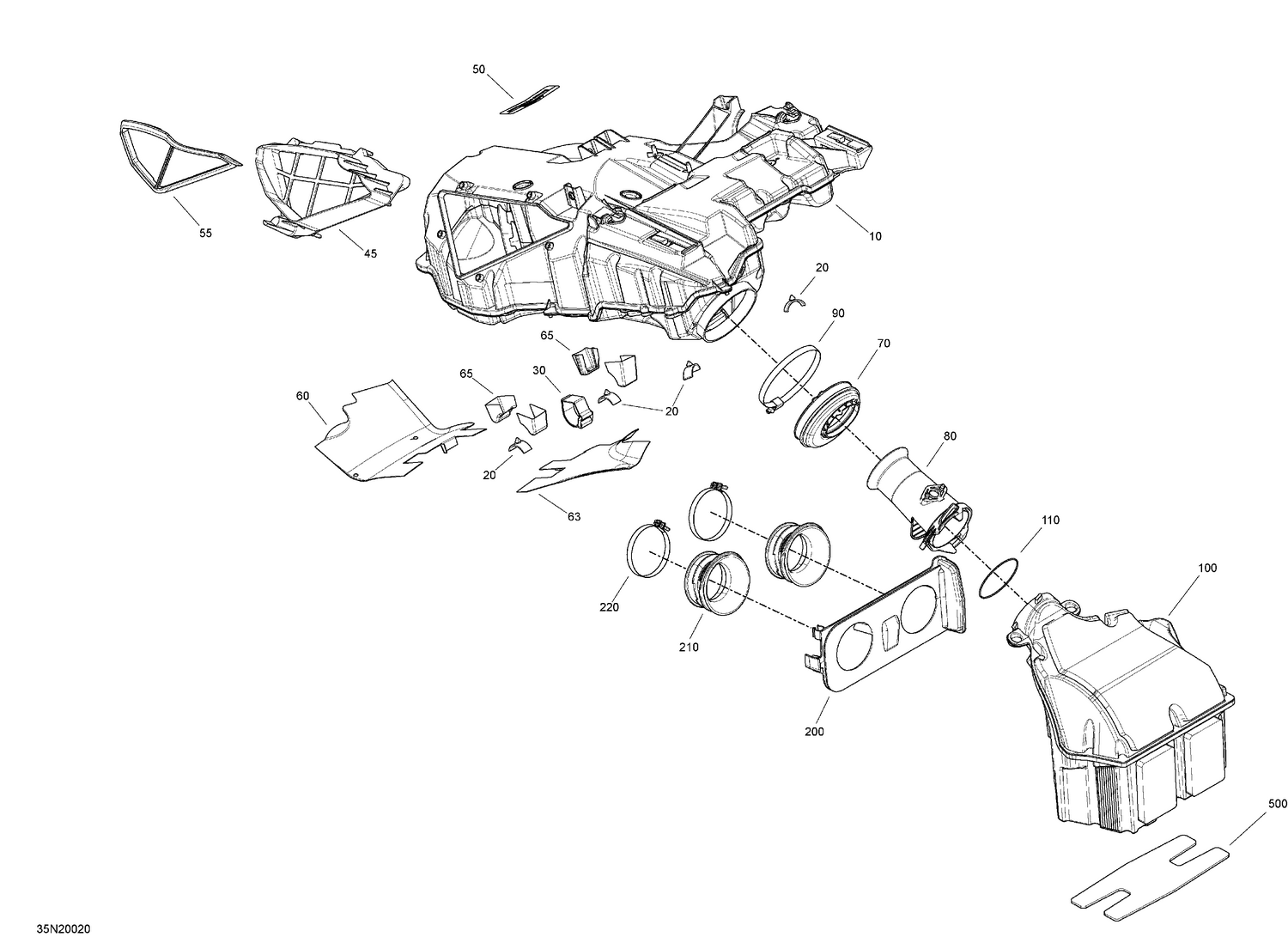

02- Engine - Air Intake
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 508000790 | Chamber Ass'y |
| 20 | 508000537 | Stopper |
| 30 | 508000820 | Velcro Strip |
| 45 | 508001020 | Adaptor |
| 50 | 516006903 | Hot Parts Decal |
| 55 | 508000609 | Air Filter |
| 60 | 508000675 | Heat Shield |
| 63 | 508000676 | Heat Shield |
| 65 | 508000677 | Heat Shield |
| 70 | 508000548 | Boot |
| 80 | 508000662 | Flute |
| 90 | 514052983 | Norma Gear Clamp |
| 100 | 508000660 | Primary Chamber Ass'y |
| 110 | 293300115 | O-Ring |
| 200 | 508000613 | Plate Adapter |
| 210 | 508000614 | Air Intake Adapter |
| 220 | 508000346 | Gemi Clamp |
