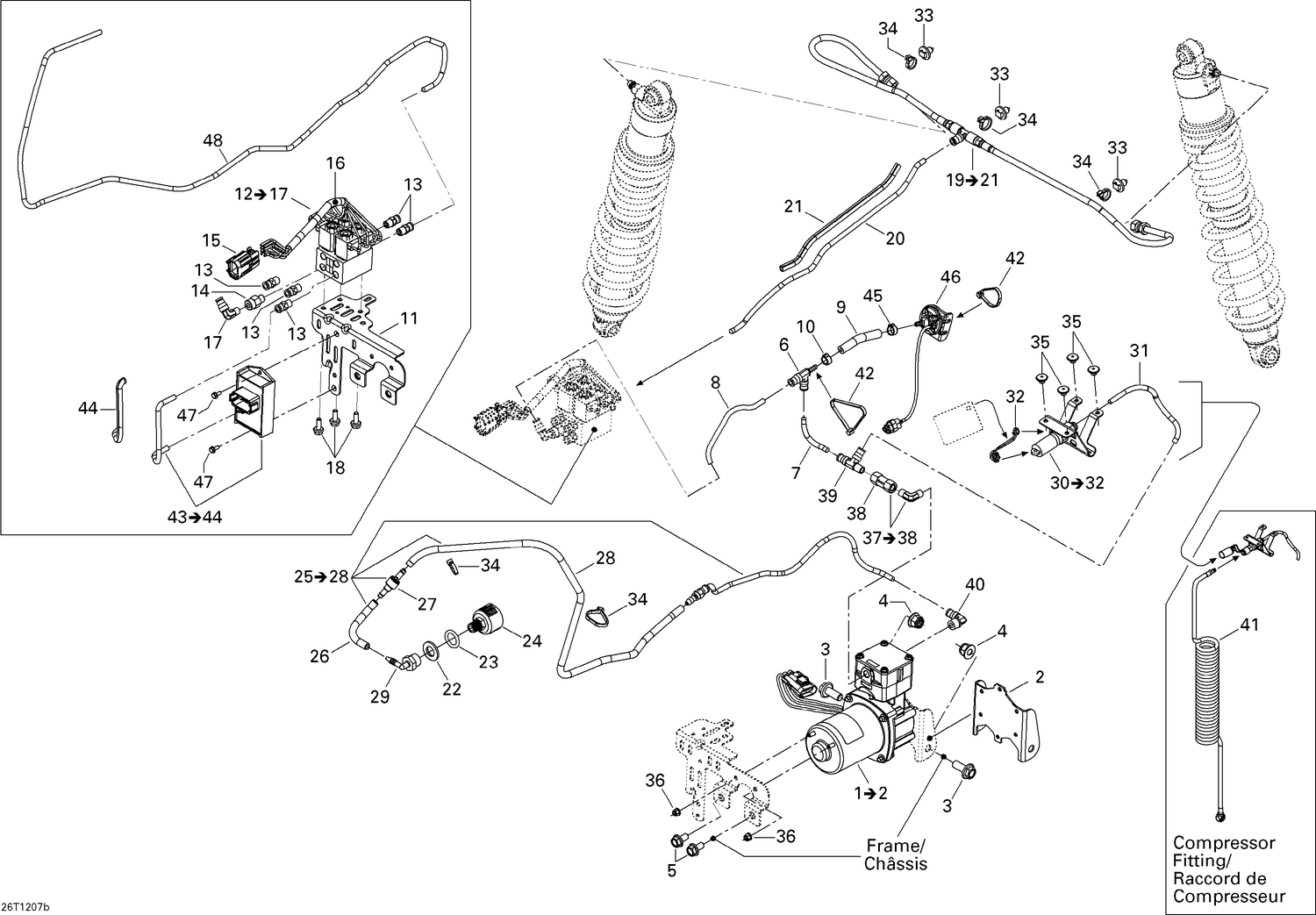

08- Rear Suspension
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 715900072 | Compressor Bracket |
| 3 | 207602544 | Hex. Flange Screw M10 X 25 |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 |
| 5 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 6 | 706000935 | T-FITTING - Call your local BRP dealership |
| 7 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 8 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 9 | 415129495 | HOSE - Call your local BRP dealership |
| 10 | 293650207 | Clamp Oetiker |
| 11 | 706000941 | Front Compressor Support |
| 13 | 706000869 | Connector |
| 14 | 706000860 | Check Valve |
| 15 | 710001927 | Housing |
| 16 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 17 | 706000872 | Elbow 90° |
| 18 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 20 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 21 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 22 | 234071410 | Flat Washer 14 mm |
| 23 | 293300146 | O-RING - Call your local BRP dealership |
| 24 | 706000832 | FILTER - Call your local BRP dealership |
| 26 | 219704410 | Polyurethane Hose 10000Mm Long |
| 27 | 513033469 | Check Valve |
| 28 | 219704410 | Polyurethane Hose 10000Mm Long |
| 29 | 706000796 | ELBOW 90 - Call your local BRP dealership |
| 31 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 32 | 414811400 | O-Ring |
| 33 | 293730040 | Mount Dart This part replaces 293730018. |
| 34 | 293750002 | Tie Wrap 142 mm |
| 35 | 390406500 | Pop Rivet 3/16" |
| 36 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 38 | 706000940 | Check Valve |
| 39 | 706000795 | T-FITTING - Call your local BRP dealership |
| 40 | 706000793 | ELBOW 90 - Call your local BRP dealership |
| 41 | 706000808 | Auxiliary Hose |
| 42 | 293750008 | Tie Wrap 368 mm |
| 44 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 45 | 293650207 | Clamp Oetiker |
| 46 | 710001825 | Air Suspension Sensor |
| 47 | 210241080 | HEX. FLANGED SCREW M4 X 10 - Call your local BRP dealership |
