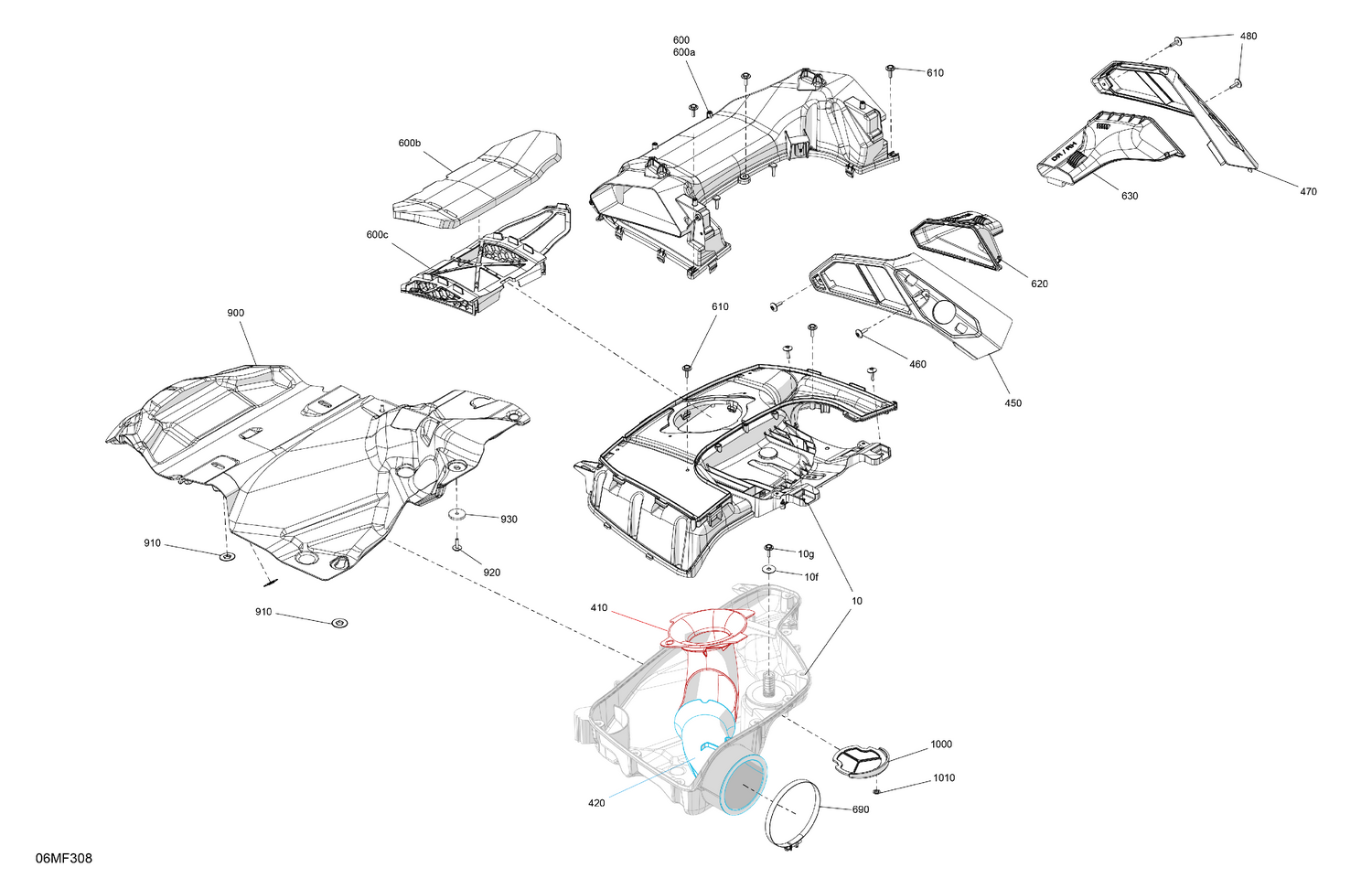

02- Engine - Air Intake
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10f | 224060201 | Flat Washer |
| 10g | 250000725 | Screw M4 X 16 |
| 410 | 508001129 | Resonator Hose IN |
| 420 | 508001130 | Resonator Hose OUT |
| 450 | 508001136 | LH Air Filter |
| 460 | 250000889 | Screw M4 X 16 |
| 470 | 508001137 | RH Air Filter |
| 480 | 250000889 | Screw M4 X 16 |
| 600a | 508001289 | Upper Intake Silencer Duct |
| 600b | 508001224 | Acoustic Insulation |
| 600c | 508001222 | Foam Support |
| 610 | 250000725 | Screw M4 X 16 |
| 620 | 508001199 | LH Upper Resonator |
| 630 | 508001200 | RH Resonator |
| 690 | 293650247 | Gemi Clamp |
| 900 | 508001198 | Acoustic Panel |
| 910 | 508000853 | Push Nut |
| 920 | 250000725 | Screw M4 X 16 |
| 930 | 508001358 | Thermal Insulation |
| 1000 | 508000815 | Pop Off Filter |
