Parts Catalog

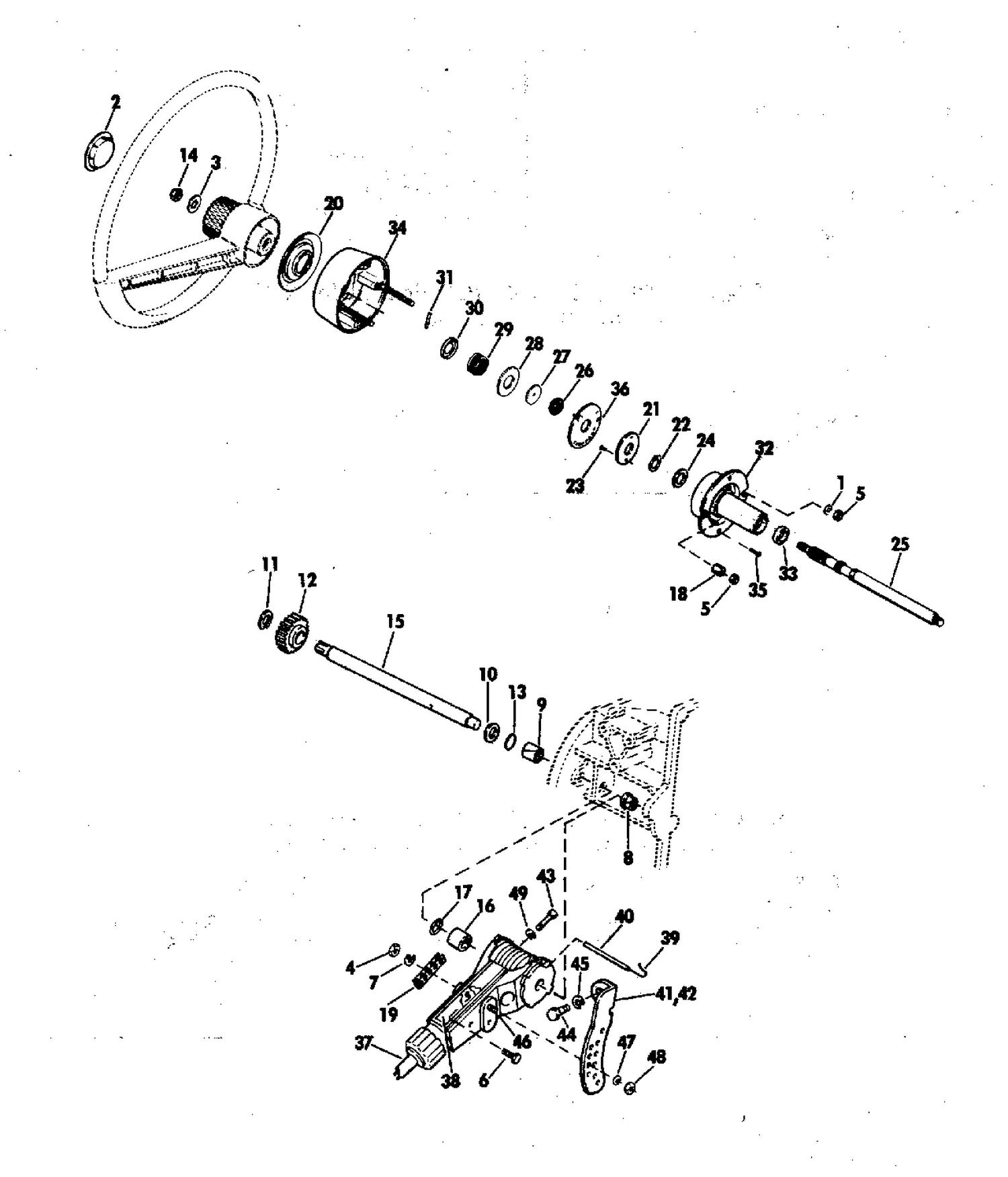

TRU-COURSE STEERING OPTIONAL ITEM - ALL MODELS

Parts (58)

Ref	Part Number	Description
2	0121609	MEDALLION
3	0121639	SPRING WASHER, Steering wheel
5	0306390	JAM NUT, Stud
6	0306409	VIS, collecteur vers carter-moteur
9	0308693	BUSHING, Front
10	0308697	WASHER
11	0911316	RETAINING RING This part replaces 0313238.
12	0908461	GEAR, Shaft
14	0904880	LOCKNUT, Steering shaft
15	0908020	SHAF, Steering pulley
16	0908022	SPACER
17	0908060	BOW WASHER, Shoulder screw
18	0908218	NUT, Long
19	0908235	BRACKET, Support, steering helm
20	0121581	LENS
21	0121654	WASHER, Thrust, wheel to housing
22	0121736	RING, Retaining
23	0121605	SCREW
24	0121653	WASHER, Thrust shaft
25	0908021	GASKET, Exh outlet
25	0908234	SHAFT, Steering
26	0121598	GEAR, Drive
27	0121594	GEAR, Cluster
28	0121597	GEAR, Output
29	0121586	SPRING, Coil
30	0121641	WASHER, Coupled
32	0171895	HELM, Bearing & seal assy
33	0121650	SEAL
34	0980015	BEZEL ASSY, Black
34	0980072	BEZEL ASSY, White
35	0121655	SCREW, Bezel to helm
36	0171871	SUPPORT PLATE ASSEMBLY
37	0979910	CABLE ASSEMBLY, 10 ft
37	0979911	CABLE ASSEMBLY, 11 ft
37	0979912	CABLE ASSEMBLY, 12 ft
37	0979913	CABLE ASSEMBLY, 13 ft
37	0979914	CABLE ASSEMBLY, 14 ft
37	0979915	CABLE ASSEMBLY, 15 ft
37	0979916	CABLE ASSEMBLY, 16 ft
37	0979917	CABLE ASSEMBLY, 17 ft
37	0979918	CABLE ASSEMBLY, 18 ft
37	0979919	CABLE ASSEMBLY, 19 ft
37	0979920	CABLE ASSEMBLY, 20 ft
37	0979921	CABLE ASSEMBLY, 21 ft
37	0979922	CABLE ASSEMBLY, 22 ft
37	0979923	CABLE ASSEMBLY, 23 ft
37	0980124	CABLE ASSEMBLY, 24 ft
37	0980248	CABLE ASSEMBLY, 8 ft
38	0908827	CABLE COVER, Drum This part replaces 0908368.
39	0908369	PIN, Cable guard
40	0908827	CABLE COVER, Drum This part replaces 0908370.
41	0908371	BRACKET, Positioning, helm end
42	0910300	BRACKET, Positioning drive end This part replaces 0908372.
43	0908373	BRACKET,Positioning,drive end
44	0306834	BOLT, Throttle lever retainer
45	0120177	L'WASHER, Alternator to brkt
46	0300977	SCREW
48	0328742	NUT This part replaces 0306338.
