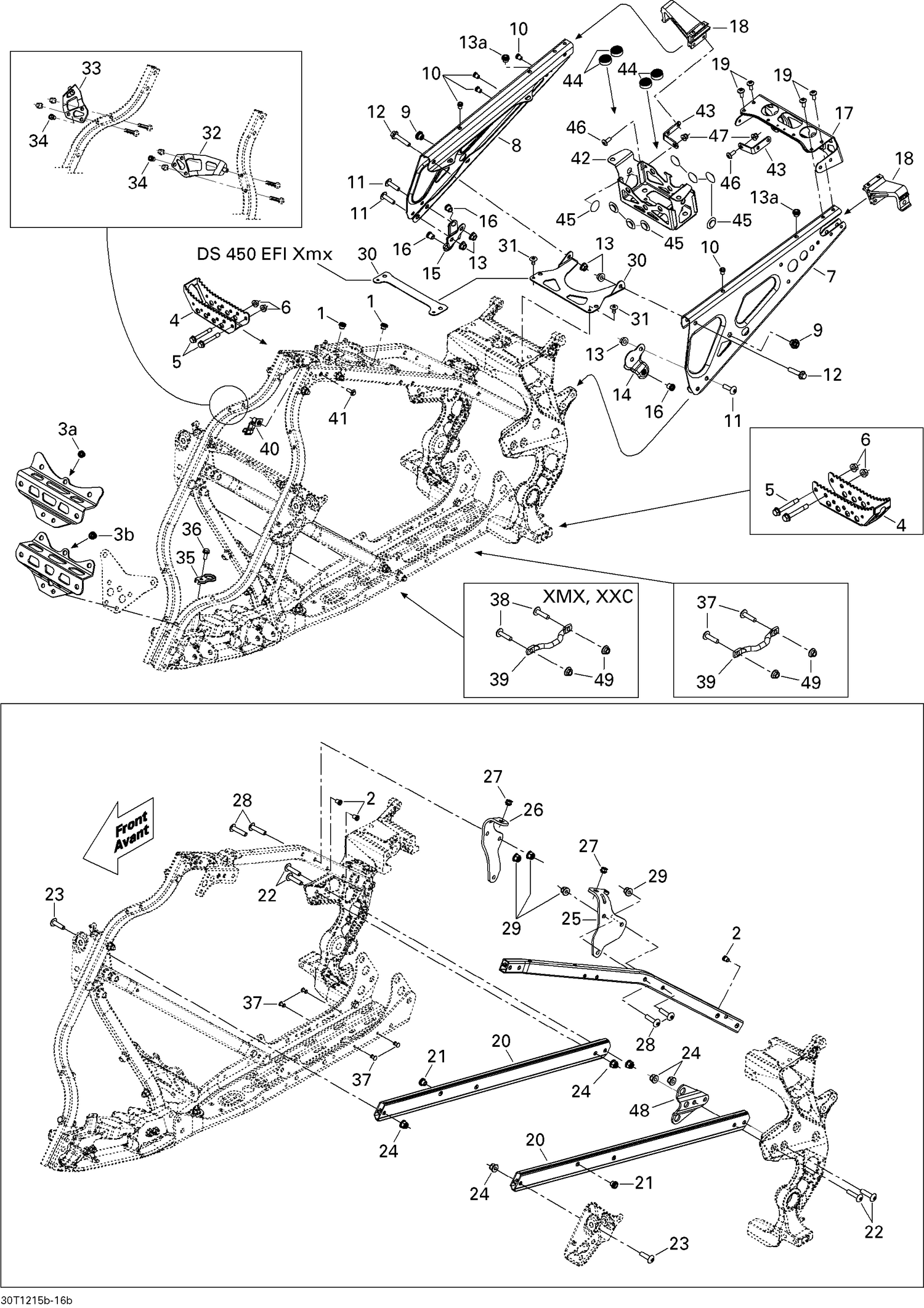

| Ref | Part Number | Description |
|---|
| 1 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 2 |
293450268 |
Insert M5 X 0.8 |
| 3a |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 3b |
XXX |
Not Available As Spare Parts |
| 4 |
705201044 |
FOOTREST - Call your local BRP dealership |
| 5 |
207586034 |
HEX. FLANGED SCREW M8 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 6 |
233181434 |
Hex. Flange Nut M8 |
| 7 |
705202547 |
EXTENTION - Call your local BRP dealership |
| 8 |
705202548 |
EXTENTION - Call your local BRP dealership |
| 9 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 10 |
293450268 |
Insert M5 X 0.8 |
| 11 |
250000745 |
Hex Torx Truss M8 X30 This part replaces 250000197. |
| 12 |
207684034 |
Hex. Flange Screw M8 X 40 |
| 13 |
233181434 |
Hex. Flange Nut M8 |
| 13a |
293450275 |
Insert |
| 14 |
707600399 |
LH Bracket |
| 15 |
705201485 |
RH Bracket |
| 16 |
293450275 |
Insert |
| 17 |
705201898 |
PLATE SUPPORT - Call your local BRP dealership |
| 18 |
705002094 |
REAR FENDER SUPPORT - Call your local BRP dealership |
| 19 |
250000223 |
Torx Screw M6 X 16 |
| 20 |
705201950 |
Side Member |
| 21 |
293450275 |
Insert |
| 22 |
250000256 |
Torx Truss Screw M8 X 35 |
| 23 |
250000745 |
Hex Torx Truss M8 X30 This part replaces 250000197. |
| 24 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 25 |
705201380 |
LH ENGINE SUPPORT - Call your local BRP dealership |
| 26 |
705201381 |
RH ENGINE SUPPORT - Call your local BRP dealership |
| 27 |
293450278 |
Insert |
| 28 |
250000256 |
Torx Truss Screw M8 X 35 |
| 29 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 30 |
705201406 |
REAR BRACE - Call your local BRP dealership |
| 31 |
293150008 |
Pop Rivet 3/16" |
| 32 |
705201461 |
LH BODY ATTACHMENT PLATE - Call your local BRP dealership |
| 33 |
705201462 |
RH BODY ATTACHMENT PLATE - Call your local BRP dealership |
| 34 |
293450268 |
Insert M5 X 0.8 |
| 35 |
705201550 |
RADIATOR GUIDE - Call your local BRP dealership |
| 36 |
207561634 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 37 |
250000792 |
Torx Screw M5 X 20 This part replaces 250000465. |
| 38 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
| 39 |
705002639 |
NET ATTACHMENT - Call your local BRP dealership |
| 40 |
707000561 |
Cable Support |
| 41 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 42 |
705202456 |
SUPPORT - Call your local BRP dealership |
| 43 |
707000864 |
BRACKET - Call your local BRP dealership |
| 44 |
708000506 |
Rubber Stopper |
| 45 |
708000862 |
Rubber Stopper |
| 46 |
250000223 |
Torx Screw M6 X 16 |
| 47 |
233261434 |
Flange Elastic Nut M6 |
| 48 |
705202636 |
Solenoide Support |
