Home / BRP / EVINRUDE / 1986 / 225 / 01- Cylinder Head, Front - 1000 EFI

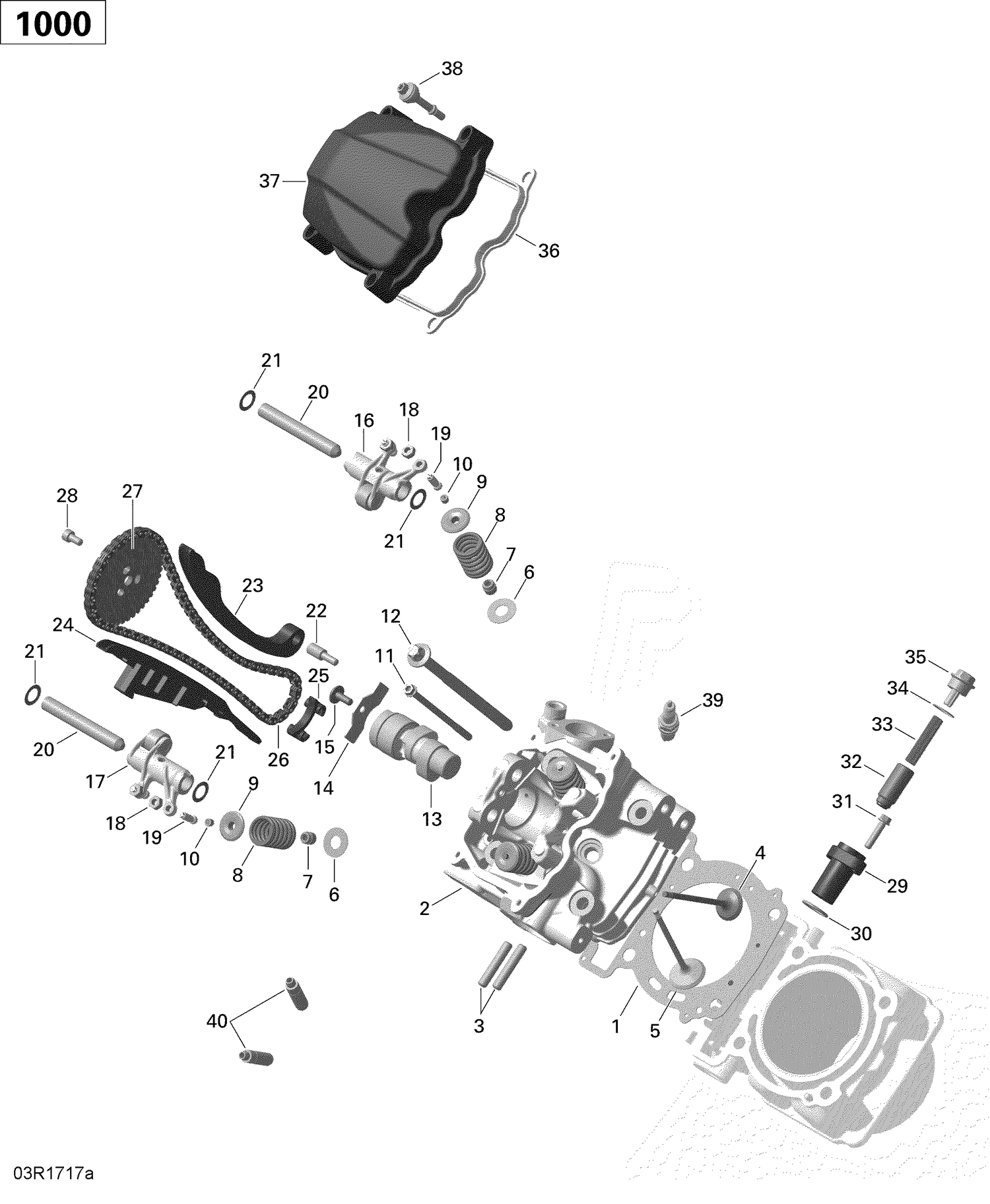

01- Cylinder Head, Front - 1000 EFI

01- Cylinder Head, Front - 1000 EFI

Parts (38)

RefPart NumberDescription
1 420630195 Cylinder Head Gasket
3 420941014 Stud M8 x 26
4 420253171 Exhaust Valve, 27 Mm This part replaces 420254361.
5 420254359 Intake Valve 31MM This part replaces 420254351.
6 420627525 Thrust Washer This part replaces 420627770.
7 420230515 Valve Stem Seal
8 420239295 Valve Spring
9 420254132 Valve Spring Retainer
10 420254120 Cotter Valve
11 420440612 Torx Flange Screw M6 X 105
12 420441287 Torx Screw M10 X 159 This part replaces 420441284.
13 420281802 CAMSHAFT - Call your local BRP dealership This part replaces 420637410.
14 420627743 Holding Strip
15 420241522 Torx Screw M6 X 16 This part replaces 420241529.
16 420254907 Inlet Rocker Arm This part replaces 420254905.
17 420254911 Exhaust Rocker Arm This part replaces 420254915.
18 420242913 Hex Nut M6 This part replaces 420242910.
19 420241337 Adjustment Screw M6 X 0.75 This part replaces 420241335.
20 420229712 Pin #12, Small, M6 X 90
21 420944382 Shim
22 420240943 Bearing Screw M6
23 420436019 Chain Tension Guide This part replaces 420436017.
24 420236583 Chain Guide
25 420236351 Chain Guide
26 420297068 Silent Chain This part replaces 420297067.
27 420254438 Timing Gear 42T This part replaces 420254435.
28 420840032 Allen Screw M6 X 12 This part replaces 420840031.
29 420236510 Chain Tensioner Housing
30 420430373 O-Ring This part replaces 420430370.
31 420641238 Torx Flange Screw M6 X 25
32 420236521 Chain Tensioner Plunger This part replaces 420236520.
33 420238120 Spring
34 420250890 O-Ring
35 420641150 Plug Screw
36 420630260 Gasket
37 420610393 Valve Cover
38 420440568 Hex Screw M6 X 30 This part replaces 420440567.
39 715900637 Spark Plug NGK DCPR8E This part replaces 707000246.
