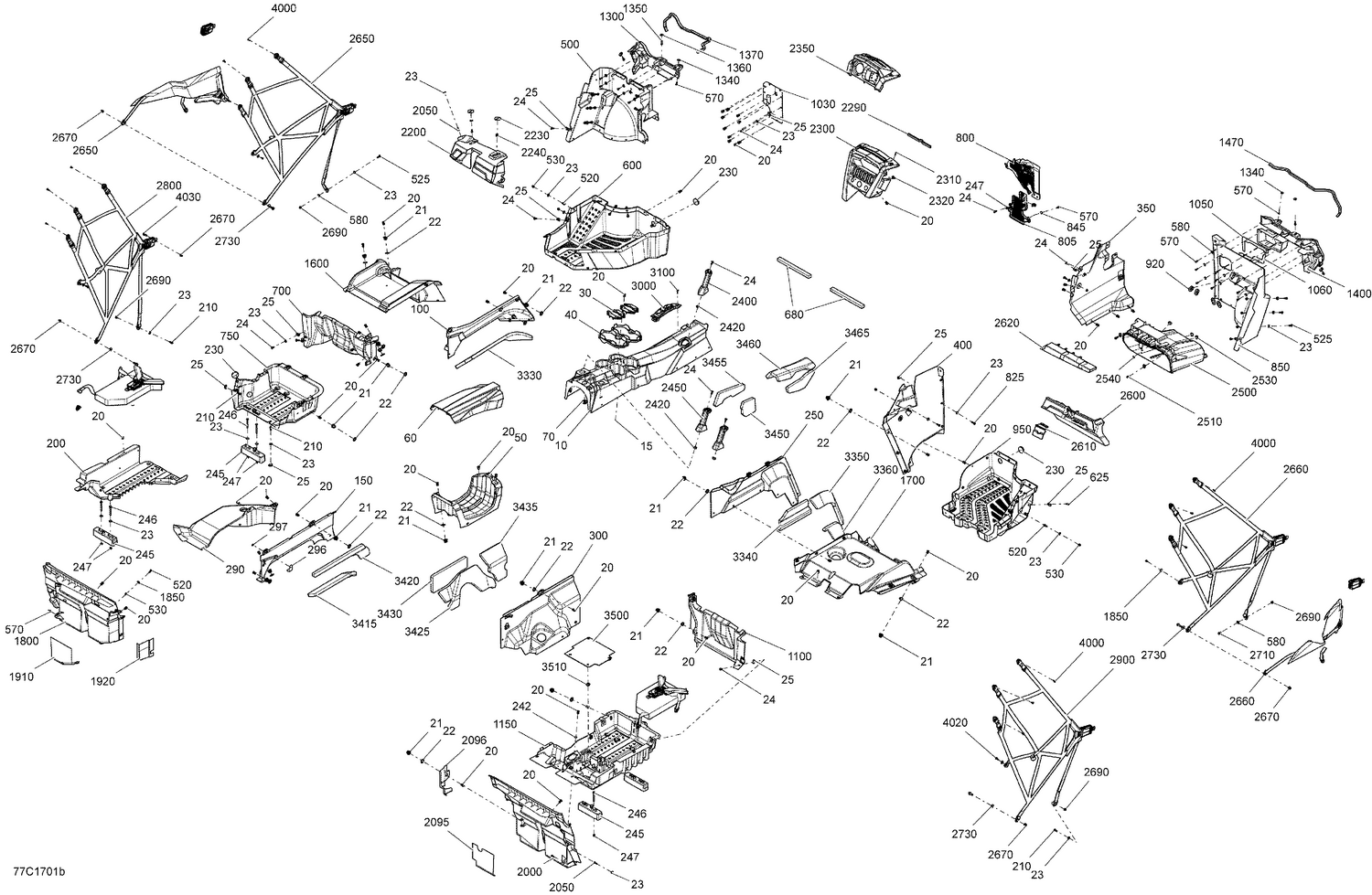

09- Cab Interior - Commander MAX
Parts (106)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 732610072 | Push Nut |
| 20 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 21 | 707900133 | Insert |
| 22 | 503189273 | Washer |
| 23 | 234062670 | Stainless Steel Flat Washer |
| 24 | 250000722 | Torx Screw M6 X 20 |
| 25 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 30 | 707900036 | Cup Retainer |
| 40 | 707900100 | Cup Holder |
| 50 | 707900075 | Rear Central Console |
| 60 | 707900229 | Rear Console Cover Kit |
| 70 | 517303756 | Grommet |
| 100 | 707900001 | LH Side Console |
| 150 | 707900391 | Rear LH consol |
| 200 | 707900387 | Under cover |
| 210 | 207662054 | Hex. Flange Screw M6 X 20 |
| 230 | 293250242 | Rubber Cover |
| 242 | 506151252 | Washer |
| 245 | 707900099 | Support Plate |
| 246 | 207667056 | Hex. Flange Screw M6 X 70 |
| 247 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 250 | 707900002 | RH Side Console |
| 290 | 707900388 | Rear Floor cap |
| 296 | 705205445 | INSERT SUPPORT - Call your local BRP dealership |
| 297 | 293150103 | Pop Rivet 3/16" |
| 300 | 707900080 | RH Rear Console Panel |
| 350 | 707900193 | Front Side Dash Panel |
| 500 | 707900175 | LH Front Upper Floor |
| 520 | 250000712 | Torx Screw M6 X 20 |
| 525 | 250000758 | Torx Screw M6 X 25 |
| 530 | 233261494 | Hex. Flange Elastic Nut M6 |
| 570 | 250000720 | Torx Screw K50 X 16 |
| 580 | 234062410 | Flat Washer 6 mm |
| 600 | 707900022 | LH Lower Floor |
| 625 | 250000807 | Torx Truss Screw M6 X 25 |
| 680 | 293250318 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 700 | 707900082 | LH Rear Upper Floor Cover |
| 750 | 707900331 | Rear Floor |
| 800 | 707900178 | Grille |
| 805 | 707900180 | Grille |
| 825 | 250000843 | Torx Truss Screw M6 X 30 |
| 845 | 250200025 | Washer M5 |
| 850 | 707900004 | RH Front Floor |
| 920 | 705003668 | Oblong Grommet |
| 950 | 707900023 | RH Lower Floor |
| 1030 | 707900125 | DEFLECTOR - Call your local BRP dealership |
| 1050 | 293250252 | Upper Seal |
| 1060 | 293250253 | Bottom Seal |
| 1100 | 707900083 | Seat Cover |
| 1150 | 707900670 | RH Lower Rear Floor This part replaces 707900231. |
| 1300 | 707900029 | SUPPORT_PANEL LH - Call your local BRP dealership |
| 1340 | 224060201 | Flat Washer |
| 1350 | 207162544 | Hex. Screw M6 X 25 |
| 1360 | 224061201 | Flat Washer |
| 1370 | 219704365 | Was 293200017 Neoprene Seal |
| 1400 | 707900030 | SUPPORT_PANEL RH - Call your local BRP dealership |
| 1470 | 219704365 | Was 293200017 Neoprene Seal |
| 1600 | 707900130 | Under Seat Cover |
| 1700 | 707900006 | RH Under Seat Plate |
| 1800 | 707900220 | DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership |
| 1850 | 250200040 | Flat Washer |
| 1910 | 707900182 | Heat Shield |
| 1920 | 707900183 | Heat Shield |
| 2000 | 707900219 | DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership |
| 2050 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2095 | 707900167 | Heat Shield |
| 2096 | 707900184 | Heat Shield |
| 2200 | 715001250 | Dashboard Ass'y |
| 2230 | 705003841 | Support Plate |
| 2240 | 517302785 | Edge Clip |
| 2310 | 250000724 | Torx Screw M5 X 20 |
| 2320 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 2400 | 707900011 | Passenger Handle |
| 2420 | 707900048 | Connector Tube |
| 2450 | 707900103 | Handle |
| 2510 | 207662034 | Hex. Flange Screw M6 X 20 |
| 2530 | 414859400 | CAP - Call your local BRP dealership |
| 2540 | 293830005 | Rubber Bumper |
| 2600 | 707900221 | LUGGAGE COVER KIT - Call your local BRP dealership |
| 2610 | 707900031 | Latch |
| 2620 | 707900062 | Trim Glove Box This part replaces 707900038. |
| 2670 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2690 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2710 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2730 | 234082410 | Flat Washer 8 mm |
| 2800 | 707900239 | Rear LH Safety Net |
| 2900 | 707900240 | Rear RH Safety Net |
| 3000 | 707900088 | Shift Lever Indicator |
| 3100 | 250000728 | Torx Screw M6 X 25 |
| 3330 | 707900621 | LH Lower Lateral Console Foam This part replaces 707900044. |
| 3340 | 707900622 | RH Lateral Console Foam This part replaces 707900045. |
| 3350 | 707900623 | RH Lateral Console Foam This part replaces 707900055. |
| 3360 | 707900624 | RH Lateral Console Foam This part replaces 707900056. |
| 3415 | 707900625 | LH Rear Lateral Foam This part replaces 707900333. |
| 3420 | 707900626 | LH Rear Lateral Foam This part replaces 707900120. |
| 3425 | Not | Available As Spare Part - Acoustic Foam |
| 3430 | Not | Available As Spare Part - Acoustic Foam |
| 3435 | 707900627 | RH Rear Lateral Foam This part replaces 707900206. |
| 3450 | Not | Available As Spare Part - Acoustic Foam |
| 3455 | 707900628 | Front Central Foam This part replaces 707900210. |
| 3460 | 707900629 | Front Central Foam This part replaces 707900211. |
| 3465 | 707900630 | Front Central Foam This part replaces 707900212. |
| 3500 | 707900163 | Battery Cover |
| 3510 | 705003264 | Grommet |
| 4000 | 250000742 | Torx Screw M5 X 14 |
| 4020 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
