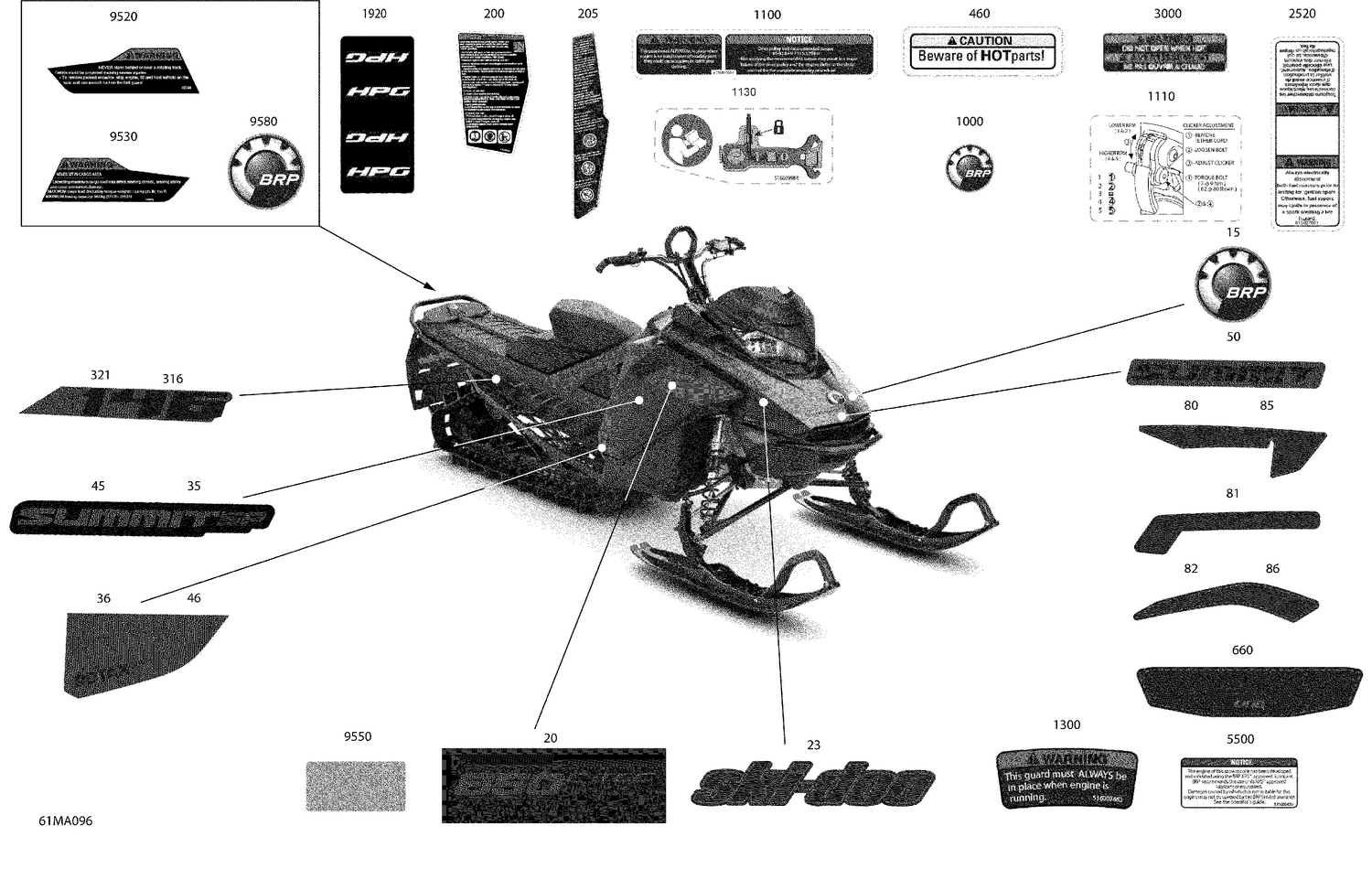

07- Body - Decals
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm |
| 20 | 516010148 | Decal "850 E-TEC" |
| 23 | 516010026 | Decal "Ski-Doo" |
| 35 | 516010327 | Decal RH Upper Panel "Summit SP" |
| 36 | 516010147 | Decal RH Lower Panel ROTAX POWER |
| 45 | 516010326 | Decal LH Upper Panel "Summit SP" |
| 46 | 516010146 | Decal LH Lower Panel ROTAX POWER |
| 50 | 516010325 | Decal Front Hood "Summit" |
| 80 | 516010414 | Decal RH Front Hood |
| 81 | 516010415 | Decal RH Central Hood |
| 82 | 516010417 | Decal RH Rear Hood |
| 85 | 516010413 | Decal LH Front Hood |
| 86 | 516010416 | Decal LH Rear Hood |
| 200 | 516009232 | LH Warning Decal Security |
| 205 | 516010558 | RH Warning Decal Security |
| 460 | 516005280 | Caution Decal Hot Parts |
| 660 | 516009856 | Standard Decal "Linq" |
| 1000 | 704904615 | BRP Logo13 mm |
| 1100 | 516007667 | Warning Decal |
| 1110 | 516009265 | Decal Ramp Clicker |
| 1130 | 516009984 | Decal Tool |
| 1300 | 516007652 | Engine Guard Warning Decal |
| 1920 | 516007763 | Shock Decal "HPG" |
| 2520 | 516007661 | Warning Decal, Injectors |
| 3000 | 516005904 | Warning Decal |
| 5500 | 516008439 | Oil Warning Decal |
| 9520 | 516008594 | LH Safety Label |
| 9530 | 516010575 | Cargo Load Instruction Label |
| 9550 | 516009954 | Protective Decal |
