Home / BRP / 2022 / 001 - BoonDocker Series / 001 - BOONDOCKER STD 3900 600R E-TEC, 2022 000SANK00 000SENL00 / PRIMER SYSTEM

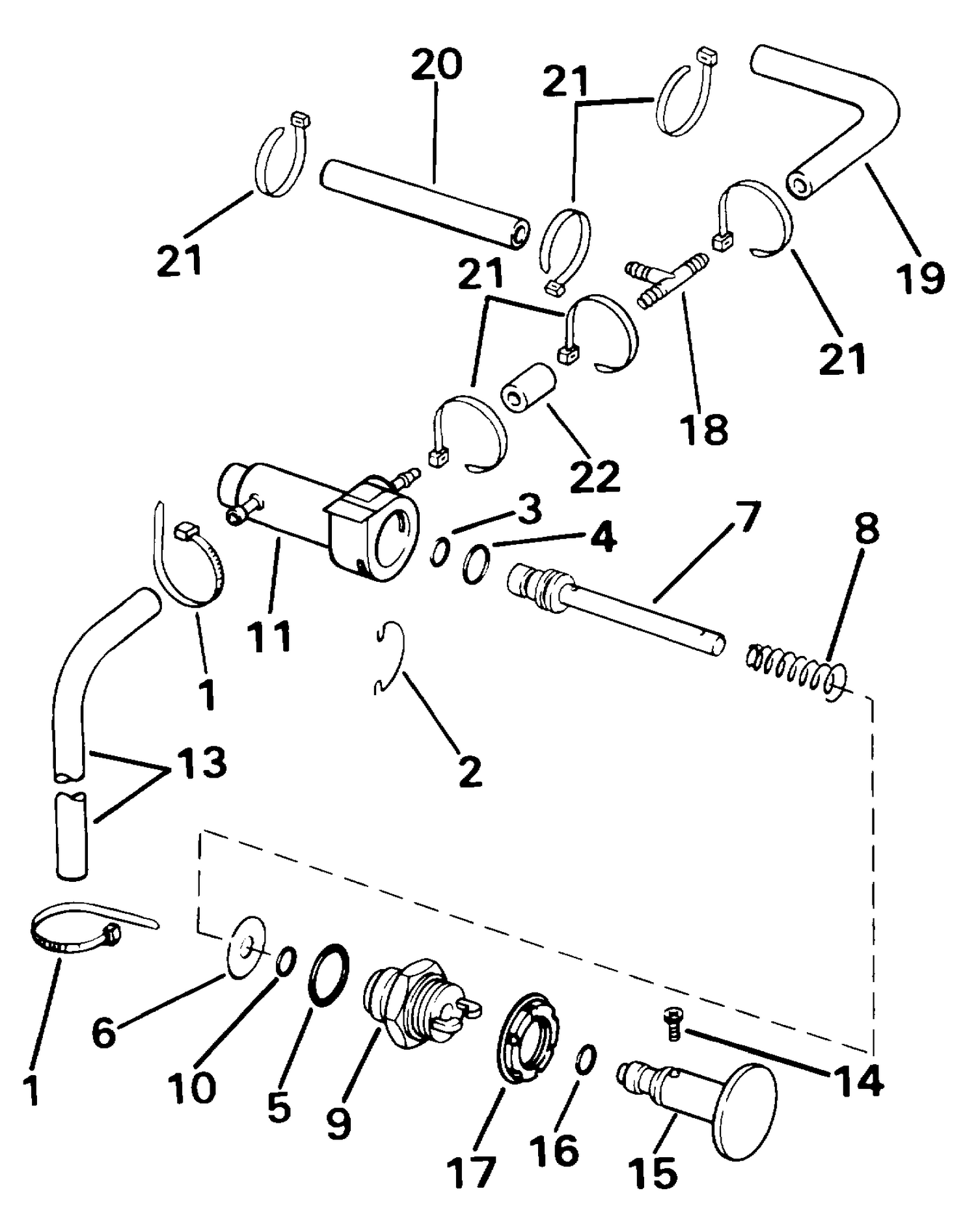

PRIMER SYSTEM

PRIMER SYSTEM

Parts (7)

RefPart NumberDescription
1 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
14 0329054 SCREW
15 0334365 KNOB
16 0330992 JOINT TORIQUE, bouton
17 0335573 NUT, Primer pump
18 0325569 T, amorçage
20 HOSE, Tee to manifold 2 1/4 in. (57mm)
