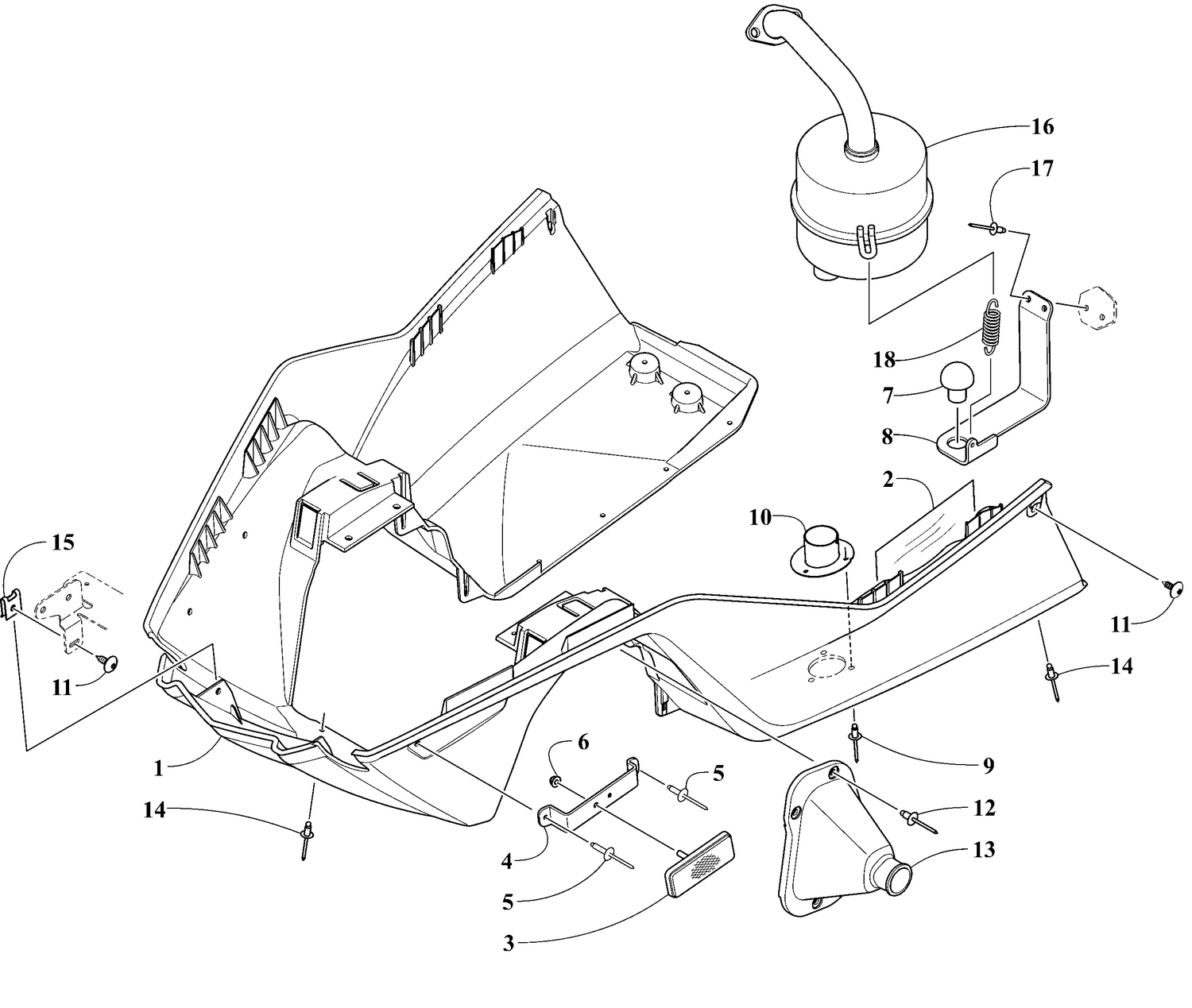

Bottom Pan and Exhaust
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5718-989 | Belly Pan With Reflectors |
| 2 | 2606-571 | Foil |
| 3 | 6606-819 | Decal Amber Reflector |
| 4 | 6716-118 | RH Reflector Support |
| 4 | 6716-119 | LH Reflector Support |
| 5 | 0623-778 | Rivet |
| 6 | 8427-502 | Hex Flanged Nut M5X0.8 |
| 7 | 0612-111 | Molded Rubber Bumper |
| 8 | 0712-914 | Muffler Support Bracket |
| 9 | 8061-508 | Black, Rivet |
| 10 | 2712-084 | Black, Outlet Belly Pan |
| 11 | 2623-166 | Self Tapping Screw |
| 12 | 8060-508 | Black, Rivet |
| 13 | 0605-464 | RH Tie Rod Boot |
| 13 | 0605-465 | LH Tie Rod Boot |
| 14 | 8061-506 | Black, Rivet |
| 15 | 1623-939 | U Type Nut |
| 16 | 1712-779 | Muffler |
| 17 | 8060-484 | Zinc Rivet |
