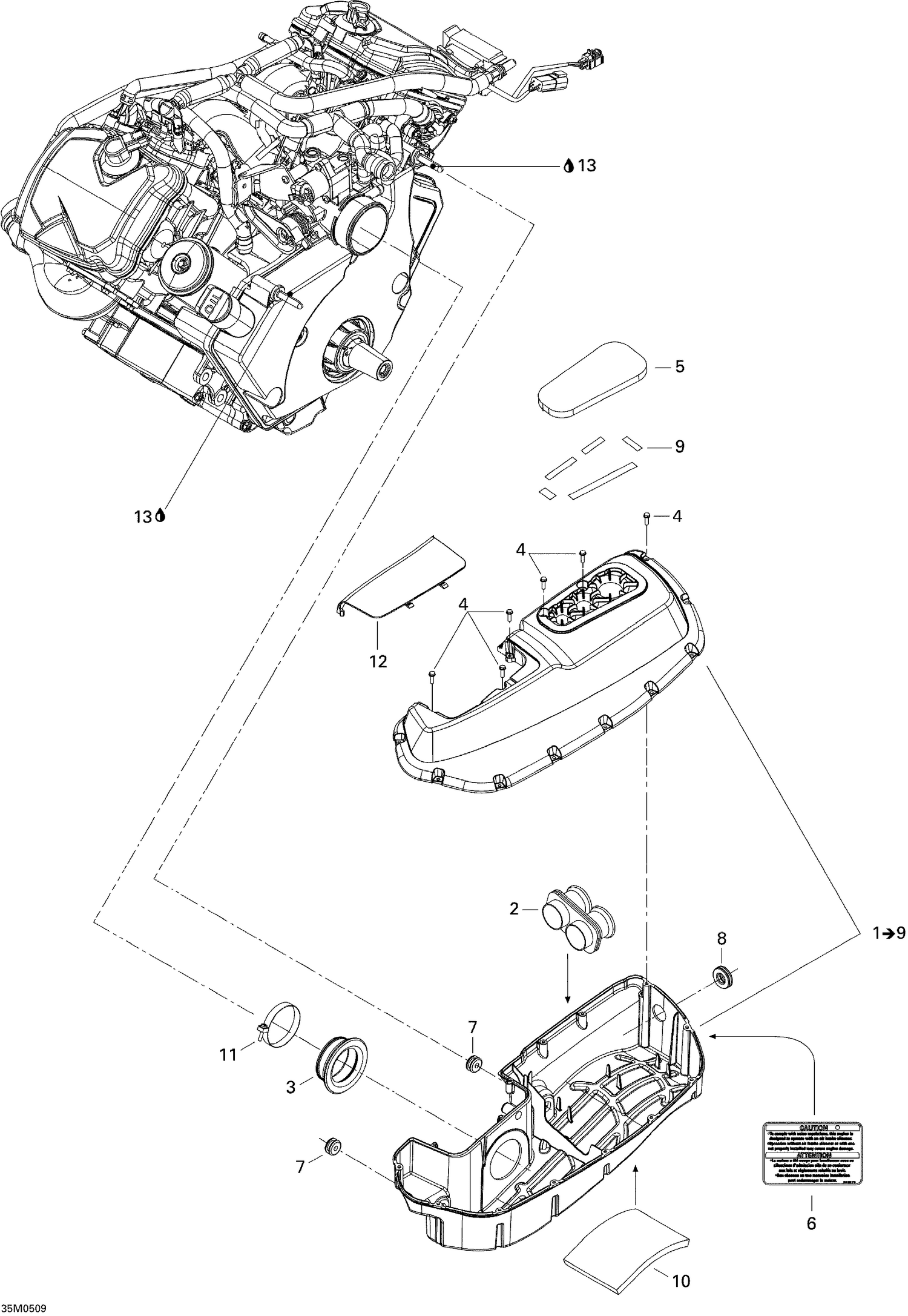

| Ref | Part Number | Description |
|---|
| 2 |
273000107 |
Inlet Tube |
| 3 |
508000254 |
INTAKE ADAPTATOR - Call your local BRP dealership |
| 4 |
243141680 |
Hex. Screw M4.8 X 1.8 |
| 5 |
508000251 |
AIR FILTER - Call your local BRP dealership |
| 6 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 7 |
508000331 |
Grommet |
| 8 |
570065500 |
GROMMET - Call your local BRP dealership |
| 9 |
415110900 |
VELCRO 1/2? - Call your local BRP dealership |
| 10 |
508000250 |
Inferior Foam |
| 11 |
508000382 |
GEMI CLAMP - Call your local BRP dealership |
| 12 |
508000253 |
Door |
