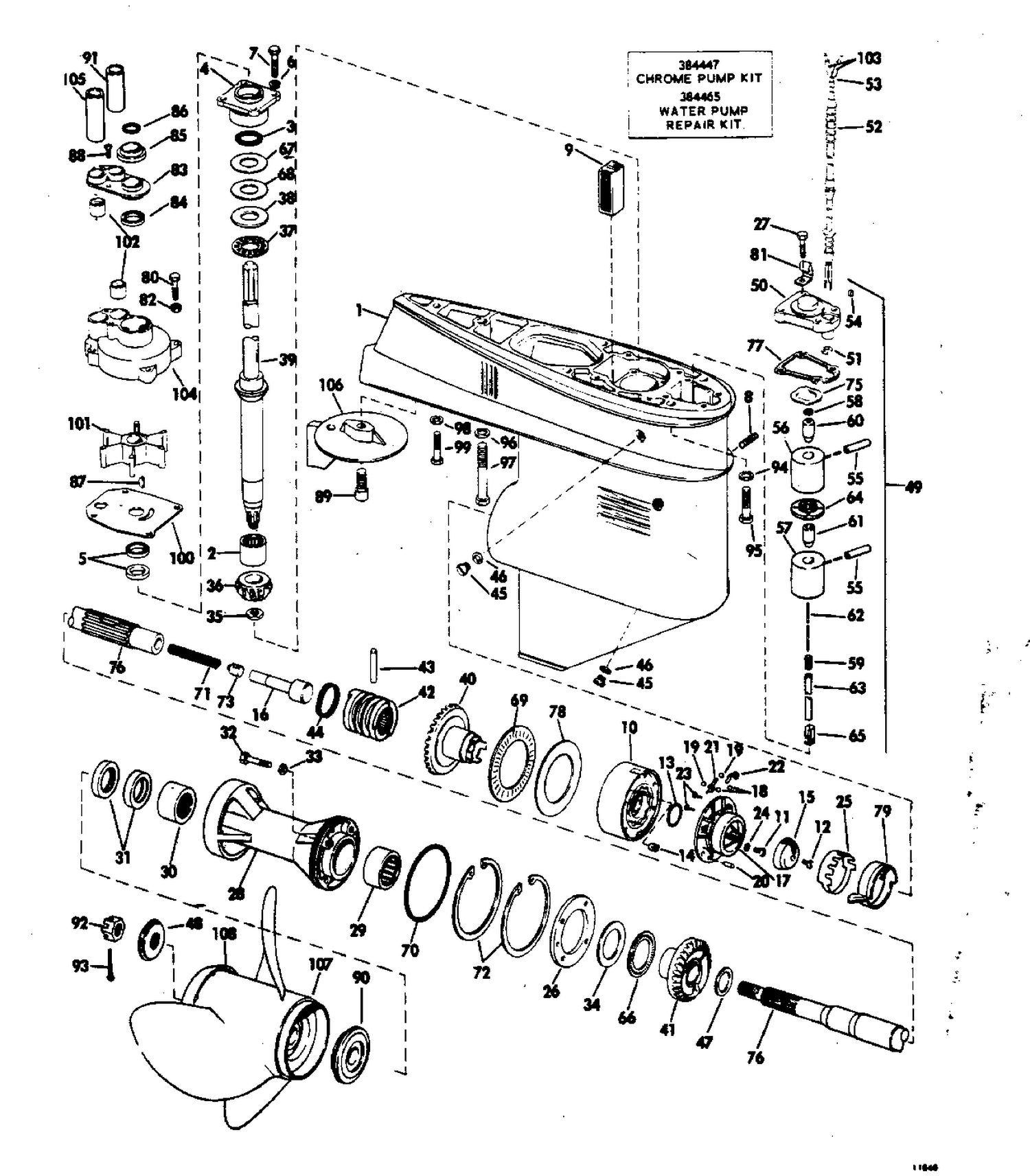

| Ref | Part Number | Description |
|---|
| 1 |
0385412 |
GEARCASE & BRG ASSY |
| 10 |
0385056 |
OIL PUMP ASSEMBLEY |
| 13 |
0314491 |
O RING |
| 18 |
0315164 |
BALL, Shift detent |
| 25 |
0315642 |
BAND, Seal valve housing |
| 27 |
0329894 |
SCREW This part replaces 0302510. |
| 28 |
0397087 |
BEARING HOUSING SEAL ASSY. This part replaces 0384523. |
| 32 |
0316563 |
SCREW |
| 33 |
0317178 |
O RING |
| 36 |
0317169 |
PINION |
| 39 |
0385414 |
DRIVESHAFT ASSY |
| 40 |
0385342 |
GEAR AND BRUSHING ASSY. |
| 41 |
0316482 |
GAER, Reverse |
| 42 |
0317181 |
SHIFTER, Cluch dog |
| 49 |
0383878 |
FLAME ARRESTOR |
| 65 |
0315484 |
O RING |
| 67 |
0314742 |
SHIM BEARING HOUSING |
| 71 |
0314020 |
SPING, Propeller shaft |
| 73 |
0315235 |
RETAINER, Clutch dog |
| 75 |
0314126 |
WAVE WAHSER, Solenoid |
| 76 |
0384546 |
PROPELLER SHAFT ASSY |
| 77 |
0314876 |
GASKET, Solenoid cover |
| 78 |
0317165 |
THRUST WASHER, Fwd |
| 79 |
0315403 |
SEAL, Valve housing |
| 80 |
0323626 |
SCREW This part replaces 0302873. |
| 81 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0316386. |
| 82 |
0329241 |
RONDELLE This part replaces 0305981. |
| 83 |
0383879 |
COVER & SEAL |
| 85 |
0305760 |
GROMMET |
| 89 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 91 |
0314081 |
GUIDE WATER TUBE |
| 94 |
0307708 |
RONDELLE GROWER |
| 95 |
0552898 |
SCR,Grc to hsg,short |
| 96 |
0306314 |
L'WASHER,Scr,long |
| 97 |
0313697 |
SCR,Grc to hsg.long |
| 99 |
0306503 |
SCREW, Short |
| 100 |
0317841 |
PLATE, Impeller housing This part replaces 0314828. |
| 101 |
0385072 |
IMPELLER ASSEMBLY |
| 102 |
0314832 |
GROMMET, Water tube |
| 104 |
0315505 |
IMPELLER HOUSING, Gearcase |
| 105 |
0314765 |
GUIDE, Water tube |
| 106 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0316981. |
| 107 |
0382761 |
PROPELLER ,14 x 11 |
| 107 |
0382765 |
PROPELLER 13 X 19 |
| 107 |
0382766 |
PROP. 12-3/4 X 21 (STD) |
| 107 |
0384136 |
PROPELLER 12-3/4 X 23 |
| 107 |
0384139 |
PROP., 13 - 3/8 x 17 - SST |
| 107 |
0384142 |
PROP., 13 x 19 - SST |
| 107 |
0384703 |
PROP, 12-3/4 x 23 sst cupped |
| 107 |
0389512 |
PRO, 12-3/4 x 21 sst cupped This part replaces 0384702. |
| 107 |
0765181 |
PROPELLER This part replaces 0382762. |
| 107 |
0765182 |
PROPELLER - W Models This part replaces 0382763. |
| 107 |
0765183 |
PROPELLER, WDEL Models This part replaces 0382764. |
| 108 |
0314188 |
CONVERGING RING |
| 0385413 |
0385413 |
GEARCASE ASSY., Complete |
