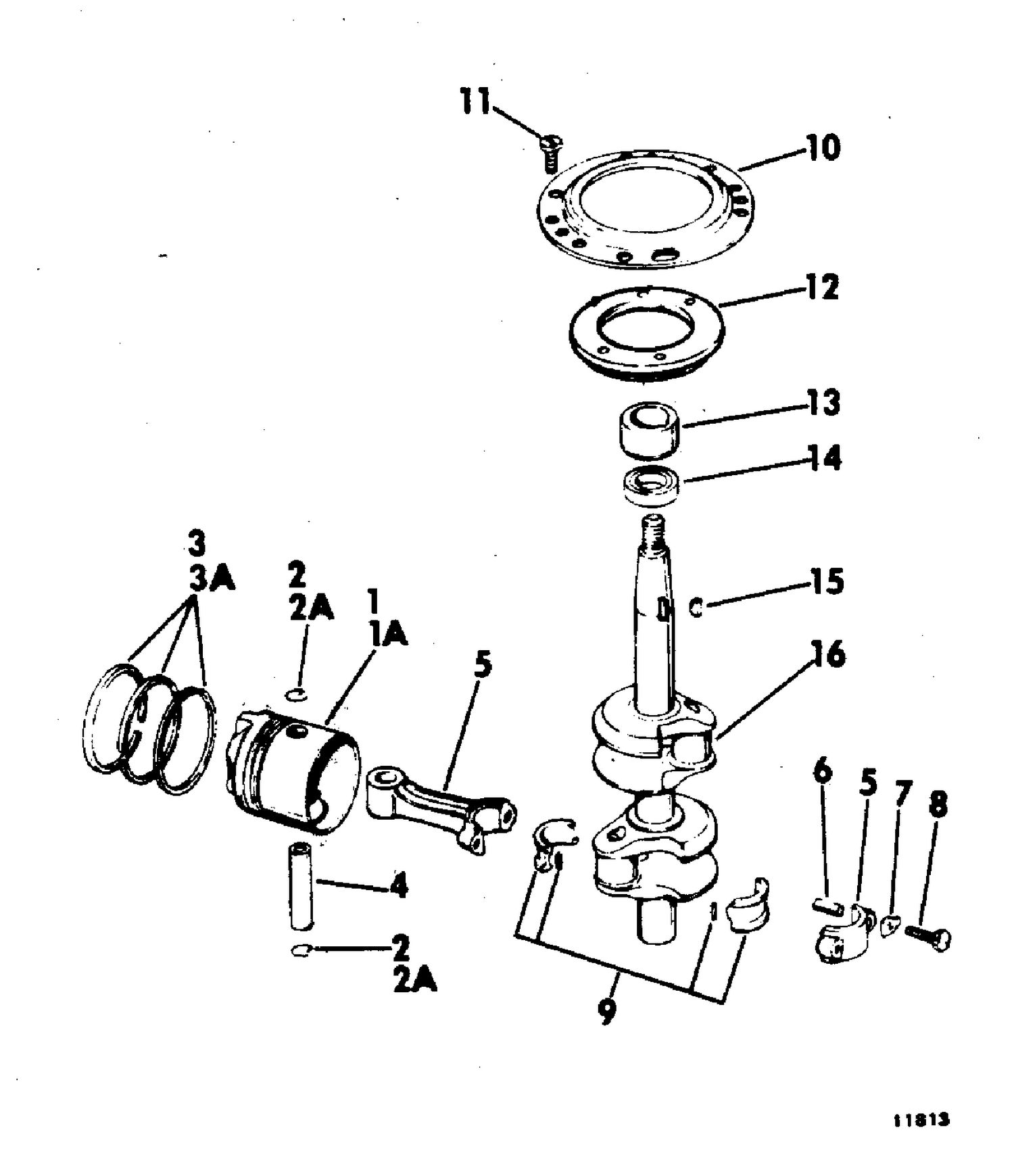

CRANKSHAFT AND PISTON
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0386692 | PISTON ASSY., Std This part replaces 0376994. |
| 1A | 0384335 | PISTON ASSY., .030 O.S. |
| 2 | 0120110 | RETAING RING |
| 2A | 0120110 | RETAING RING |
| 3 | 0378432 | RING SET , Std. |
| 3A | 0384336 | REING SET, .030 O.S. |
| 4 | 0303333 | PIN, Wrist |
| 5 | 0378280 | CONNECTING ROD ASSEMBLY |
| 6 | 0203319 | DOWEL CONNECTING ROD |
| 7 | 0307558 | LOCKPALTE,Cap screw |
| 8 | 0307560 | SCREW ROD CAP |
| 9 | 0378371 | LINDERS & NEEDLES, Rod |
| 10 | 0303278 | SUPORT, Armature plate |
| 11 | 0332070 | SCREW, Retaining plate This part replaces 0304442. |
| 12 | 0303277 | RETAINING RING |
| 13 | 0316583 | CAM, Magneto |
| 14 | 0312389 | OIL SEAL |
| 15 | 0120395 | KEY |
