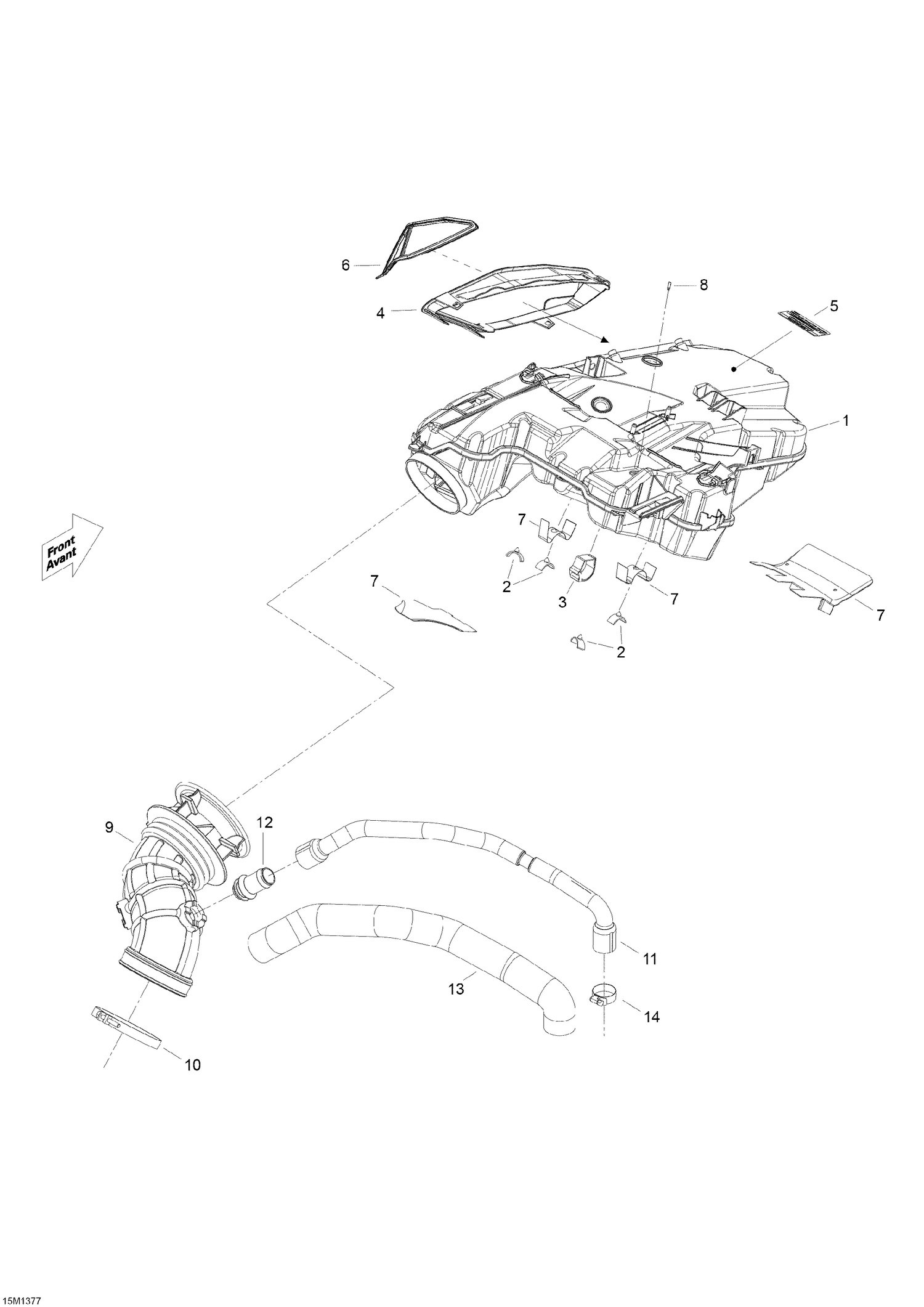

| Ref | Part Number | Description |
|---|
| 1 |
508000790 |
Chamber Ass'y This part replaces 508000690. |
| 2 |
508000537 |
Stopper |
| 3 |
508000820 |
Velcro Strip This part replaces 508000532. |
| 4 |
508001020 |
Adaptor This part replaces 508000756. |
| 5 |
516004651 |
Caution Label, Air Intake |
| 6 |
508000609 |
Air Filter |
| 7 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001. |
| 8 |
572092900 |
Cap |
| 9 |
508000719 |
HOSE-INTAKE - Call your local BRP dealership |
| 10 |
293650212 |
GEMI Clamp |
| 11 |
508000647 |
FORMED VENT HOSE - Call your local BRP dealership |
| 12 |
273000234 |
Breather Valve |
| 13 |
508000648 |
Tube Isolator |
