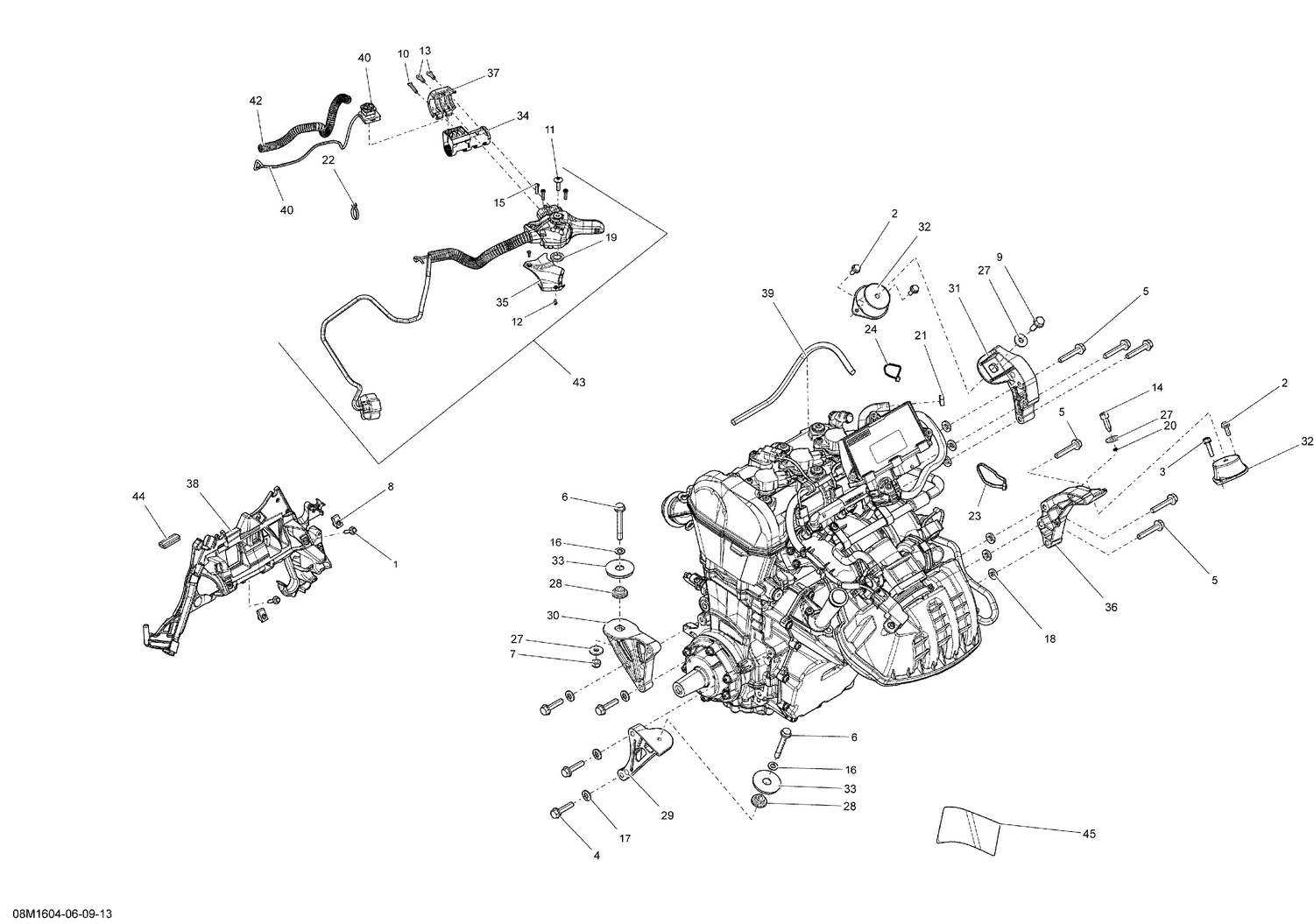

01- Engine - 900 ACE
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 3 | 207562534 | Hex. Flange Screw M6 X 25, Scotch Grip |
| 5 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip |
| 6 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 7 | 232581414 | Hex. Elastic Stop Nut M8 |
| 8 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 9 | 250000257 | Cone Screw, M8 X 30 |
| 10 | 250000263 | Torx Screw #8-18 |
| 11 | 250000528 | Torx Screw M5 X 20 |
| 12 | 250000623 | Torx Screw M2.9 x 9.5 |
| 13 | 250000632 | Torx Screw M5 X 14 |
| 14 | 250000639 | Cone Screw, M8 X 25 |
| 15 | 250000671 | Torx Screw |
| 16 | 250200008 | Flat Washer With Teflon 8 mm |
| 17 | 250200146 | Conical Spring Washer M8 |
| 18 | 250200157 | Conical Spring Washer M8 |
| 19 | Not | Available As Spare Part - Shaft Seal |
| 20 | 293300123 | O-Ring |
| 21 | 293650025 | Oetiker Gear Clamp |
| 22 | 293750002 | Tie Wrap 142 mm |
| 23 | 293750008 | Tie Wrap 368 mm |
| 24 | 414115200 | Tie-Rap 180 mm |
| 27 | 503183200 | Yellow, Washer |
| 28 | 512060285 | Spacer |
| 29 | 512061139 | Rear Support PTO This part replaces 512060660. |
| 30 | 512061140 | Front Support PTO This part replaces 512060661. |
| 31 | 512060663 | Front Support, MAG |
| 32 | 512060729 | Rubber Mount |
| 33 | 512061536 | Engine Stopper This part replaces 512060826. |
| 34 | 512061453 | Switch Support This part replaces 512060844. |
| 35 | 512060862 | Cap |
| 36 | 512061142 | Rear Support MAG This part replaces 512060894. |
| 37 | 512060987 | Front Housing |
| 38 | 512060994 | Module Support |
| 39 | 512061067 | Protector Tube |
| 40 | 515177362 | Emergency Stop Switch |
| 42 | 515177716 | Protector Tube |
| 43 | 512061607 | Housing Ass'y This part replaces 512061113. |
| 43a | 415130047 | Handle Ass'y kit |
| 44 | 219704354 | Trim 1000Mm Long |
