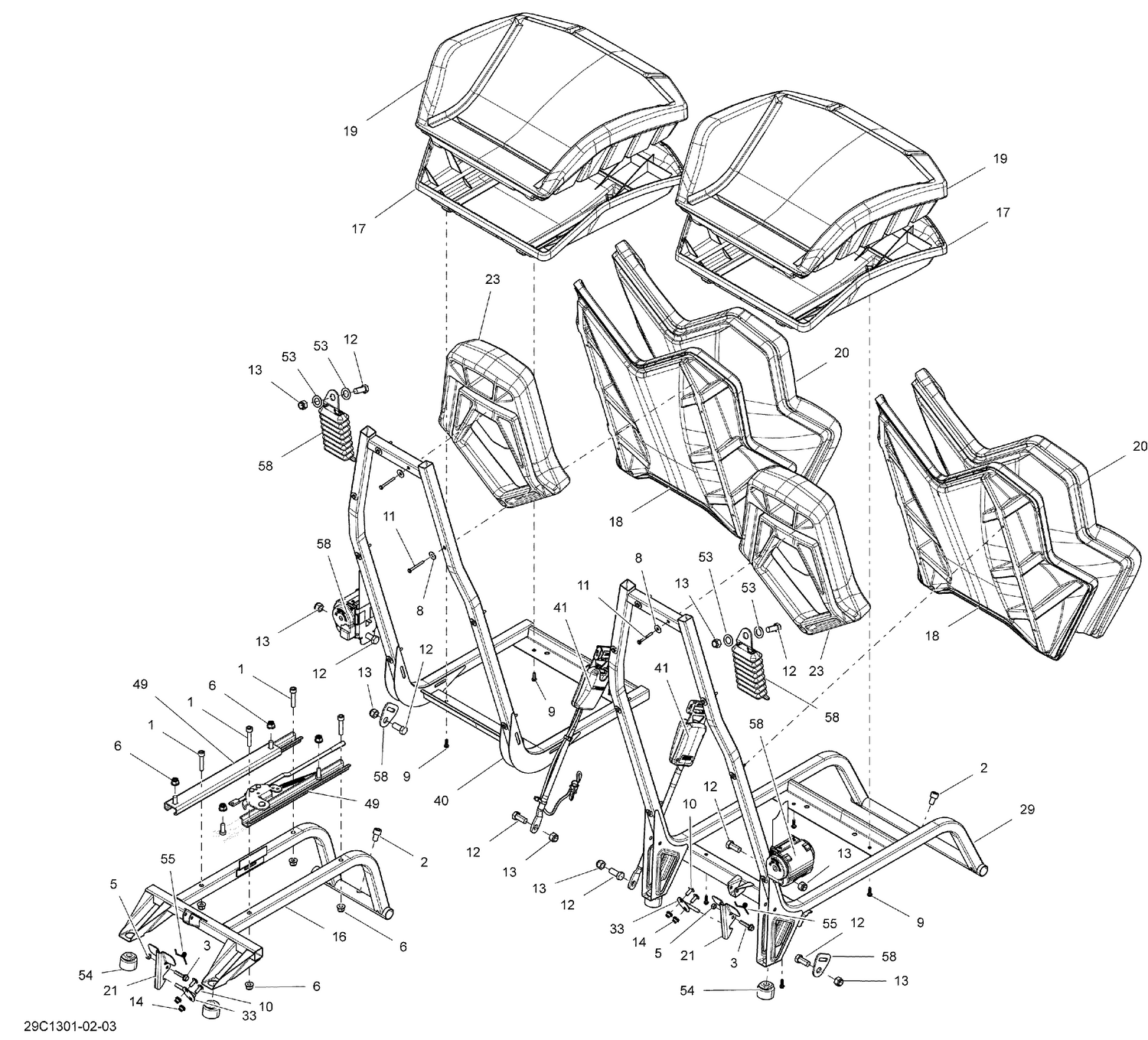

| Ref | Part Number | Description |
|---|
| 1 |
205084044 |
Socket Head Screw M8 X 1.25 X 40 |
| 2 |
205501644 |
Socket Screw M10 X 16 |
| 3 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 5 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 6 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
234062670 |
Stainless Steel Flat Washer |
| 9 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 10 |
250000223 |
Torx Screw M6 X 16 |
| 11 |
250000490 |
HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership This part replaces 250000490. |
| 12 |
250000521 |
Hex. Cap Screw 7/16'' X 1'' |
| 13 |
250100135 |
Nylon Insert Hex. Lock Nut 7/16-20 |
| 14 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 16 |
708000667 |
Seat Member |
| 17 |
703500943 |
Cushion Ass'y This part replaces 708001102. |
| 18 |
703500945 |
Backrest Ass'y This part replaces 708000669. |
| 19 |
708001103 |
Seat Cover |
| 20 |
708000675 |
Backrest Cover |
| 21 |
708001355 |
Seat Latch This part replaces 708000678. |
| 23 |
708000711 |
HEAD REST - Call your local BRP dealership |
| 29 |
708000690 |
Passenger Seat Frame |
| 33 |
708001238 |
RETAINING ROD - Call your local BRP dealership This part replaces 708000794. |
| 40 |
708000739 |
Driver Seat Frame |
| 41 |
708000844 |
Passenger Buckle Side |
| 41 |
708002061 |
Driver Buckle Side This part replaces 708000987. |
| 49 |
708000846 |
RH RAIL - Call your local BRP dealership |
| 49 |
708000848 |
LH Rail |
| 53 |
708000891 |
Position Washer |
| 54 |
708001671 |
Rubber Bumper This part replaces 708000899. |
| 55 |
708000921 |
Spring |
| 58 |
708001108 |
SAFETY BELT - Call your local BRP dealership |
