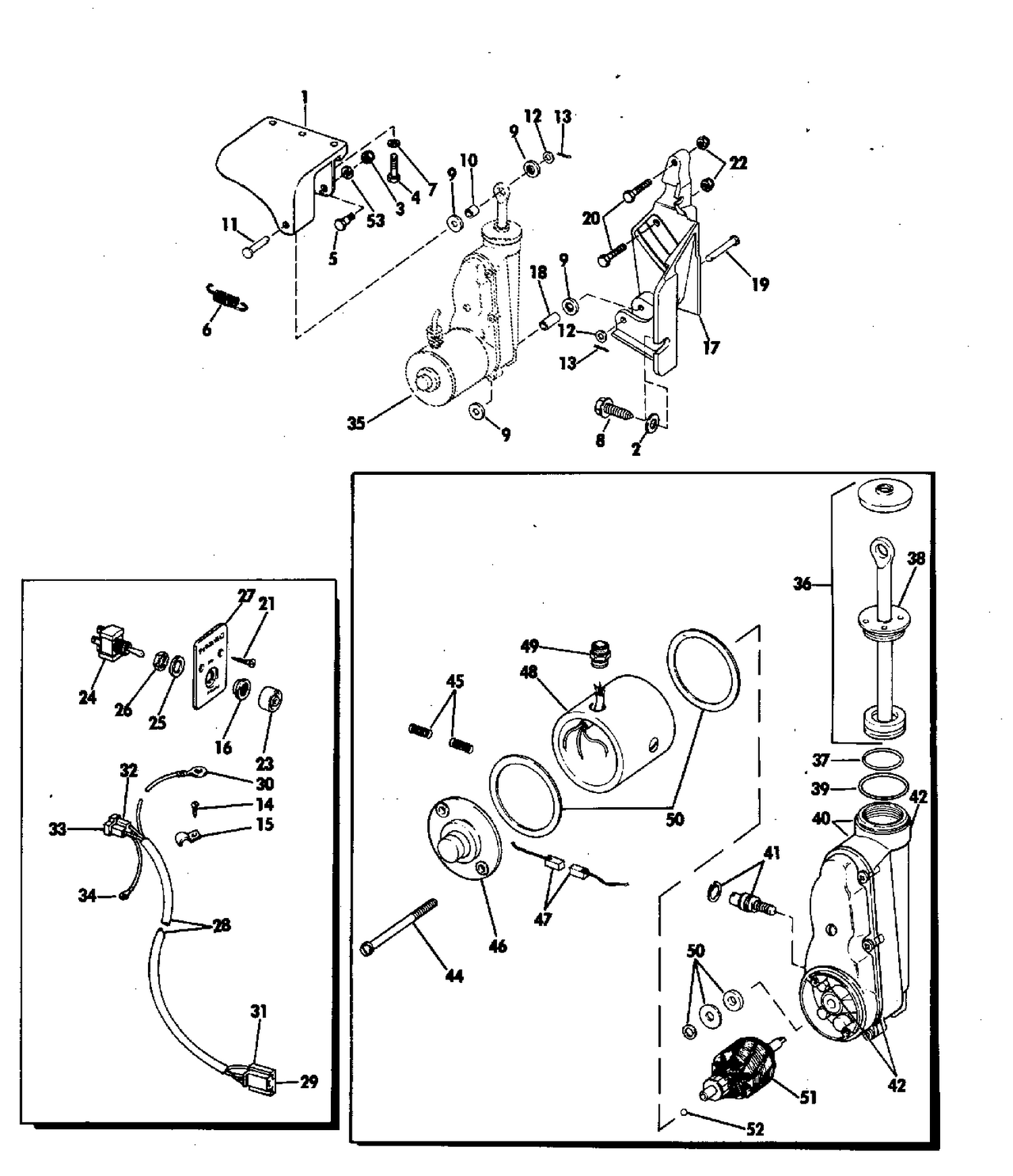

| Ref | Part Number | Description |
|---|
| 1 |
0122421 |
LIFTING LEVER |
| 4 |
0306503 |
SCREW, Short |
| 4 |
0902612 |
BOLT, Lifting lever, long |
| 5 |
0313849 |
SCREW, Stop lin to stern brkt. |
| 6 |
0318290 |
SPRING, Reverse lock |
| 8 |
0122013 |
LAB BOLT |
| 9 |
0121837 |
BUSHING, Upper pivot pin |
| 10 |
0121839 |
BUSHING Upper pivot pin |
| 11 |
0121840 |
PIN, Pivot, upper |
| 17 |
0122422 |
LOWER SUPPORT BRKT |
| 18 |
0121836 |
BUSHING, Lower pivot pin |
| 19 |
0121838 |
PIN, Lower pivot |
| 20 |
0306427 |
BOLT |
| 25 |
0900696 |
WASHER |
| 27 |
0311847 |
PLATE, Switch |
| 28 |
0172539 |
CABLE ASSEMBLY |
| 33 |
0825886 |
TERMINAL This part replaces 0510541. |
| 35 |
0173946 |
HYDRAULIC PUMP This part replaces 0172513. |
| 37 |
0121986 |
O RING ASSEMBLY |
| 40 |
0172158 |
VALVE BODY & GEARCASE ASSY |
| 42 |
0172409 |
GASKET PKG |
| 43 |
0122461 |
VALVE BODY |
| 0172510 |
0172510 |
POWER TILT KIT |
| 0172588 |
0173944 |
MOTOR ASSEMBLY This part replaces 0172588. |
