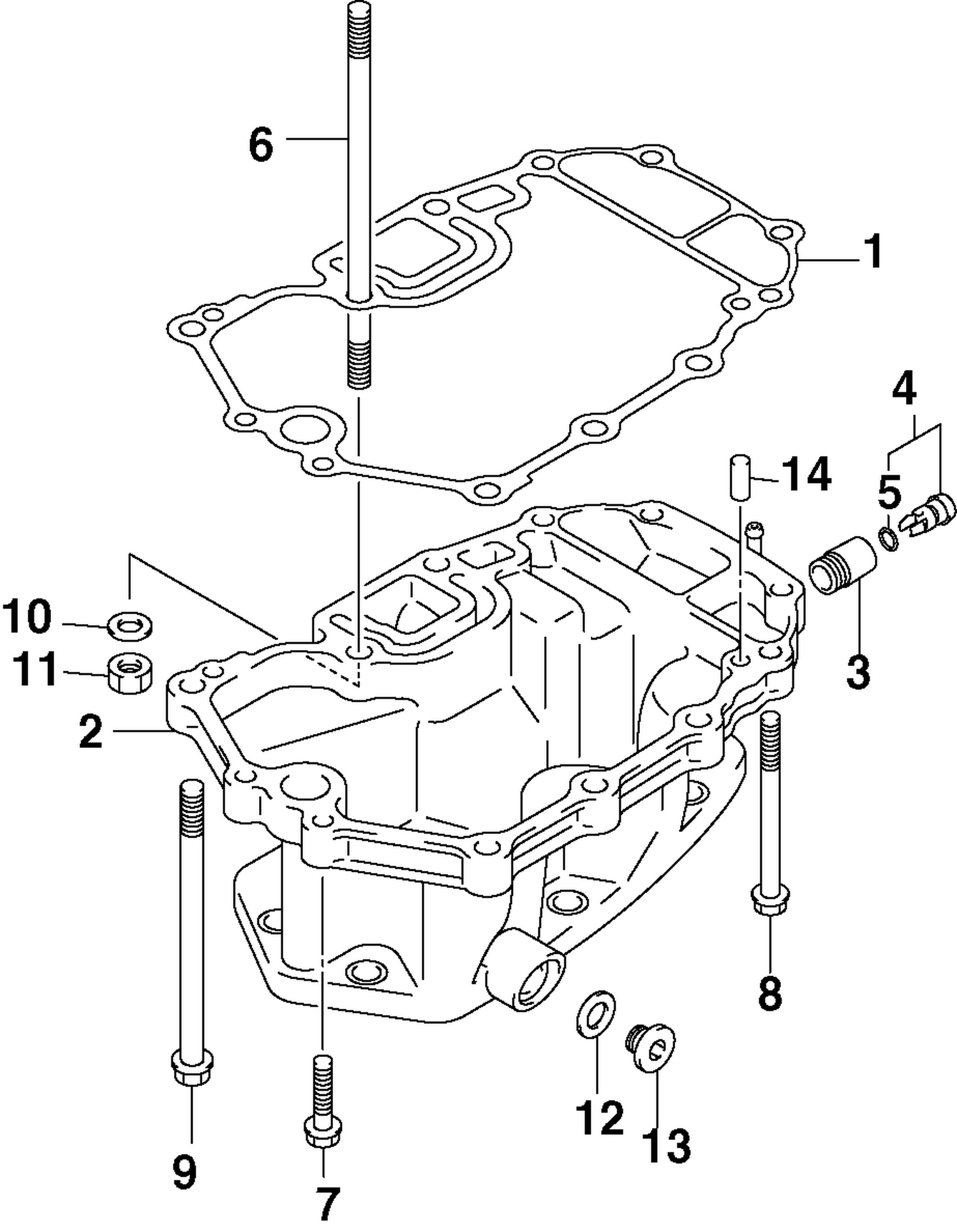

OIL PAN

OIL PAN

Parts (11)

Ref	Part Number	Description
2	5034437	PAN, OIL
3	5030929	TUBE, WATER INDICATOR
4	5030930	COVER
6	5031210	BOLT, STUD
7	5031212	BOLT
8	5031213	BOLT (8X95mm)
9	5031214	BOLT (10X150mm)
10	5030057	WASHER
11	5031219	NUT
12	5030465	GASKET
13	5034438	PLUG
