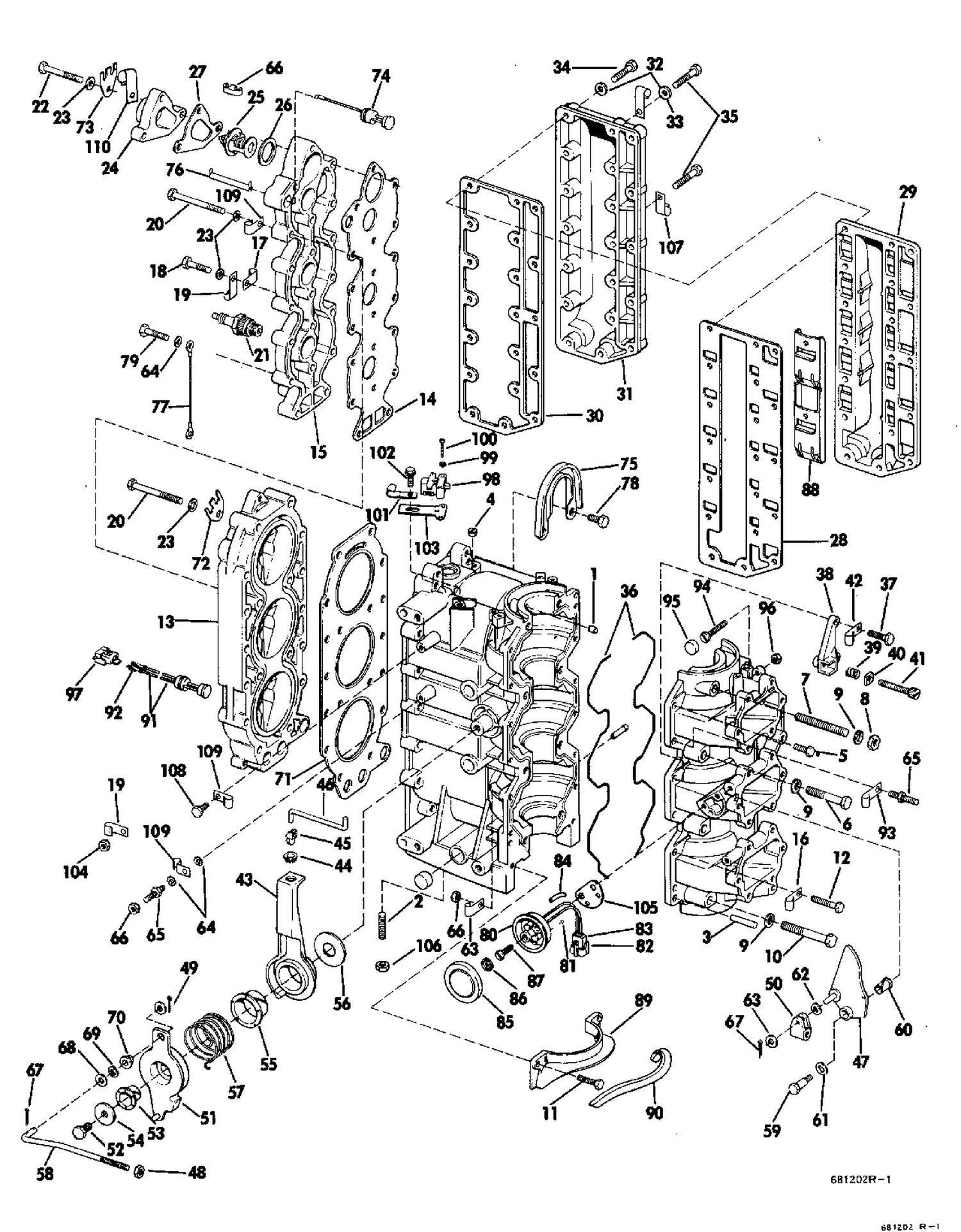

| Ref | Part Number | Description |
|---|
| 2 |
0304517 |
STUD, Cylinder |
| 5 |
0300646 |
VIS, ancrage |
| 11 |
0306418 |
VIS, ancrage |
| 12 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 13 |
0313412 |
CYLINDER HEAD |
| 14 |
0313414 |
GASKET, Cover |
| 15 |
0313415 |
COVER, Cylinder head |
| 16 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 17 |
0310441 |
CLAMP, CPS lead |
| 18 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 19 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 20 |
0305027 |
SCREW |
| 21 |
0381992 |
SPARK PLUG, AC V4 OFF |
| 21 |
0383181 |
SPARK PLUG, A-C V4 off |
| 22 |
0314907 |
SCREW, Cover |
| 23 |
0302471 |
W.ASHER, Plain |
| 24 |
0313418 |
COVER, Thermostat head |
| 25 |
0396987 |
THERMOSTAT & SEAL ASSY. This part replaces 0382385. |
| 26 |
0313416 |
GASKET, Thermostat |
| 27 |
0313417 |
GASKET, Thermostat cover |
| 28 |
0313404 |
GASKET, Exhaust cover |
| 29 |
0313406 |
COVER, Exhaust, inner |
| 30 |
0313405 |
GASKET, Exh. cover, inner |
| 31 |
0313407 |
COVER, Exhaust, outer |
| 32 |
0302471 |
W.ASHER, Plain |
| 33 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 34 |
0315071 |
SCREW |
| 35 |
0306493 |
SCREW, Regulator mounting |
| 36 |
SEAL, |
Cylinder to c/case |
| 37 |
0302288 |
BOLT |
| 38 |
0316664 |
BRACKET, Adjustment This part replaces 0314113. |
| 41 |
0312812 |
SCREW, Idle adjust |
| 42 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 43 |
0314092 |
LEVER, Spark advance |
| 44 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 45 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 46 |
0314165 |
LINK, Spark advance |
| 47 |
0394466 |
CAM & PIN ASSY., Throttle This part replaces 0382776. |
| 48 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0314442. |
| 50 |
0310524 |
YOKE |
| 51 |
0314093 |
LEVER, Throttle |
| 53 |
0314002 |
BUSHING |
| 54 |
0314099 |
RONDELLE, vis, pignon de distribution |
| 55 |
0314003 |
BSHING, Spark lever |
| 56 |
0314098 |
WASHER, Throttle lever |
| 57 |
0314094 |
LINK, Throttle lever to cam |
| 58 |
0329889 |
LINK Throttle lever to cam This part replaces 0314133. |
| 59 |
0314136 |
VIS, came de papillon |
| 61 |
0204445 |
BOW WASHER |
| 62 |
0204757 |
BOW WASHER |
| 63 |
0302474 |
WAHSER,Link |
| 66 |
0310445 |
RETAINER |
| 68 |
0302474 |
WAHSER,Link |
| 69 |
0204757 |
BOW WASHER |
| 71 |
0313413 |
GASKET, Cylinder head |
| 72 |
0313773 |
RETAINER (#1 & COIL) CYLINDER HEAD, STARBOARD |
| 73 |
0313771 |
RET.,Leads |
| 74 |
0378176 |
SWITCH TEM P |
| 75 |
0312050 |
BRACKET, Lift |
| 77 |
0376349 |
FIL, masse |
| 78 |
0306555 |
SCREW |
| 80 |
0383569 |
VACUUM SWITCH ASSY |
| 81 |
0314855 |
RETAINER VALVE |
| 84 |
0314786 |
SLEEVE |
| 85 |
0314237 |
DIAPHRAGM |
| 86 |
0314241 |
CONTACT WASHER, Switch |
| 87 |
0309330 |
SCREW, Vacuum switch |
| 88 |
0314499 |
DEFLECTOR, Exh. cover, inner |
| 89 |
0383252 |
SUPPORT & SEAL ASSY. |
| 90 |
0313485 |
SEAL, Support |
| 91 |
0382700 |
THERMO SWITCH ASSY |
| 93 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 94 |
0316101 |
SCREW, Advance This part replaces 0314415. |
| 95 |
0314416 |
BUMBER, Advance screw |
| 98 |
0386056 |
INTERRUPTEUR DE DÉMARRAGE AU POINT MORT This part replaces 0379542. |
| 99 |
0310498 |
WASHER |
| 100 |
0307922 |
SCREW |
| 101 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 102 |
0307608 |
SCREW |
| 103 |
0314000 |
BRACKET, Safety switch |
| 105 |
0314235 |
GASKET, Vac. switch |
| 106 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 107 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 108 |
0552062 |
SCREW, Clamp |
| 110 |
0310142 |
CLAMP, High tension lead |
| 0382502 |
0382502 |
CYLINDER & C/CASE ASSY. |
