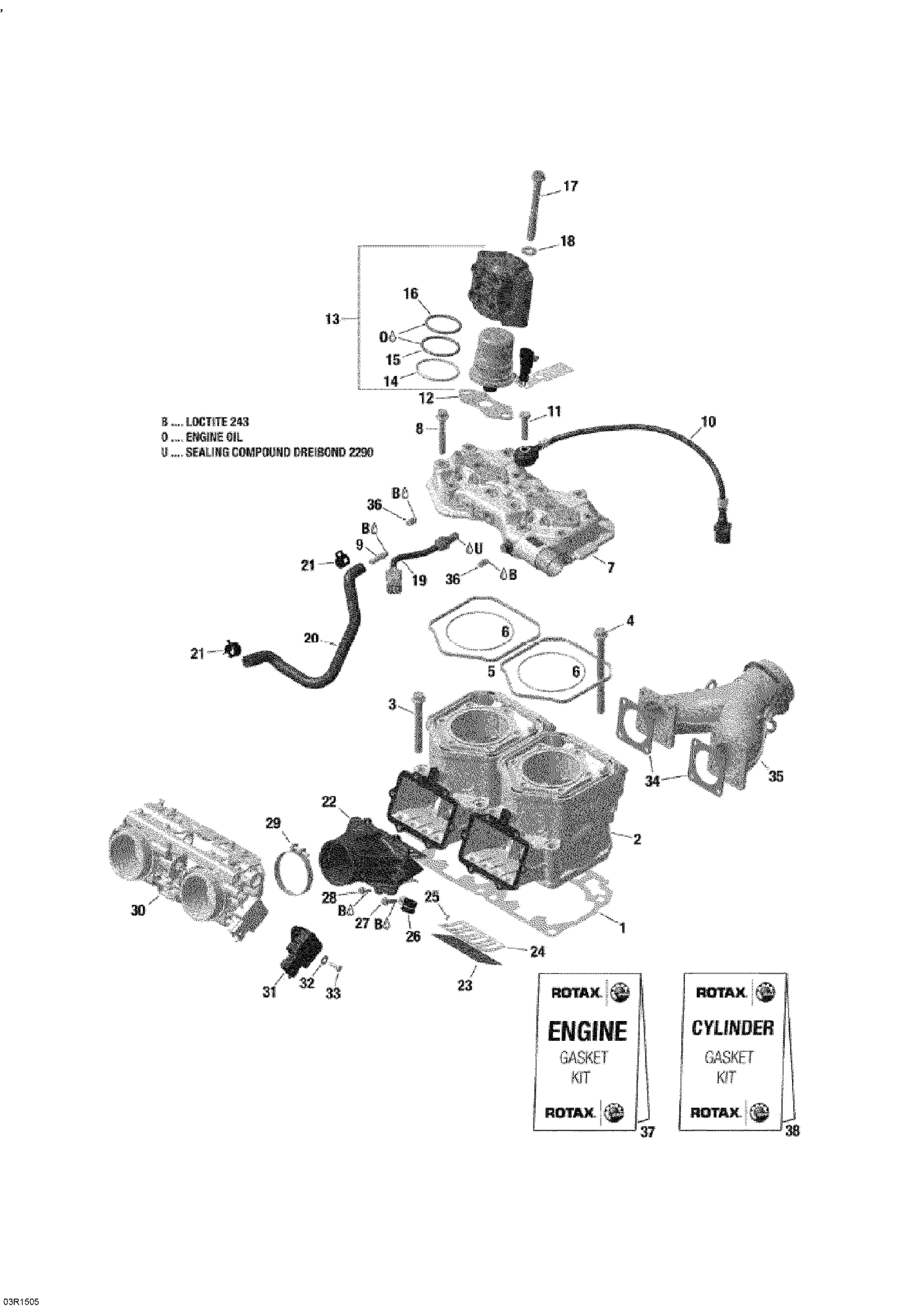

01- Cylinder And Injection System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10ml |
| O | Not | Available As Spare Part - Engine Oil |
| 2 | 420623263 | Cylinder |
| 7 | 420623299 | Head Cylinder Cover |
| 10 | 270000484 | Knock Sensor |
| 14 | 415129497 | Crush Ring |
| 15 | 415129498 | O-Ring |
| 16 | 415129499 | O-Ring |
| 17 | 420441187 | Flanged Torx Screw M10 X 90 -SW 13/T50 |
| 18 | 420927411 | Flat Washer M10 This part replaces 420927410. |
| 19 | 278000632 | Female Terminal |
| 19 | 420664509 | Temperature Senor This part replaces 515177813. |
| 19 | 515175670 | Female Housing, 2 Circuits |
| 20 | 420460867 | Molded Hose |
| 21 | 420853511 | Clamp |
| 23 | 420924680 | Reed Pedal |
| 24 | 420924695 | Reed Pedal Stop |
| 25 | 420941215 | Phillips Screw M3 x 5 |
| 26 | 420851250 | Clamp |
| 29 | 420851065 | Clamp |
| 30 | 420889201 | Throttle Body |
| 31 | 420866120 | Position Sensor |
| 32 | 234041600 | Flat Washer |
| 33 | 208641660 | Pan HD Screw M4 x 16 |
| 35 | 420673421 | Exhaust Manifold This part replaces 420673420. |
| 37 | 420889924 | Gasket Set, Engine |
| 38 | 420889928 | Gasket Set, Cylinder |
