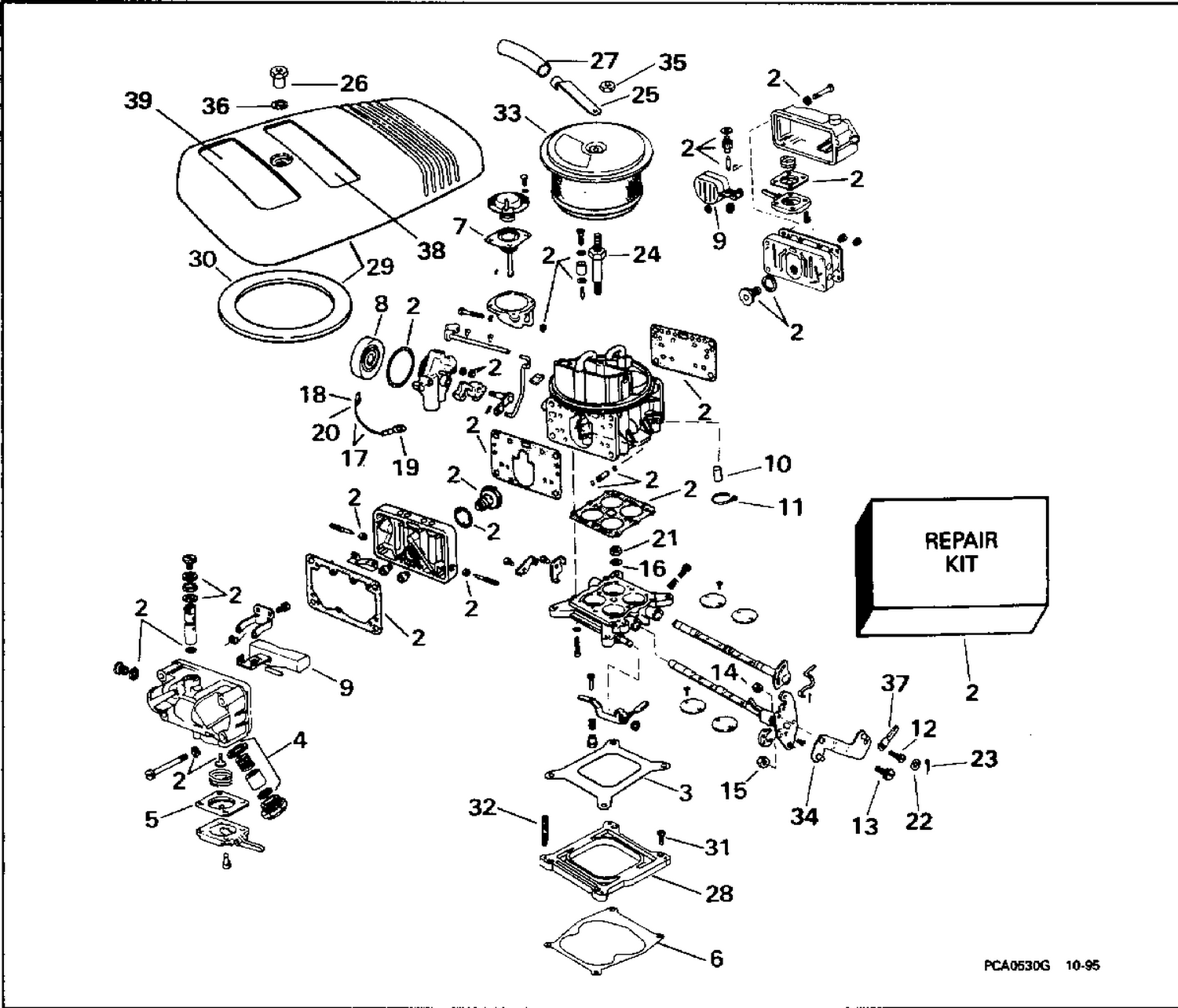

| Ref | Part Number | Description |
|---|
| 1 |
3855957 |
CARBURETOR ASSEMBLY This part replaces 3850994. |
| 2 |
3854105 |
REPAIR KIT |
| 3 |
3853451 |
GASKET, Carb. to adaptor |
| 4 |
3854019 |
FILTER |
| 5 |
3854257 |
DIAPHRAGM, Accelerator pump |
| 6 |
3853275 |
GASKET, Adapter to manifold |
| 7 |
3853991 |
SECONDARY DIAPHRAGM |
| 8 |
3854108 |
CHOKE THERMOSTAT |
| 9 |
3853575 |
FLOAT |
| 10 |
0309174 |
CAP This part replaces 3852082. |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 12 |
3854415 |
RETAINER, Adapter |
| 13 |
0319292 |
SCREW, Clamp This part replaces 3852154. |
| 14 |
3853758 |
NUT, Shift cable pin |
| 15 |
3852420 |
LOCKNUT, Throttle lever |
| 17 |
3853845 |
Lead Ay |
| 18 |
3854258 |
TERMINAL |
| 20 |
0914970 |
COVER, Terminal This part replaces 3854259. |
| 21 |
0316355 |
BUT, Carburetor mounting This part replaces 3852142. |
| 22 |
0329241 |
RONDELLE This part replaces 3852193. |
| 24 |
3853550 |
STUD, Flame arrestor |
| 25 |
3852695 |
CONNECTOR, Crankcase vent hose |
| 26 |
3852749 |
NUT, Cover |
| 27 |
3852435 |
HOSE Crankcase vent, 9" (229 mm) |
| 28 |
3853453 |
ADAPTER, Carburetor |
| 29 |
3850510 |
COVER, Flame arrestor |
| 30 |
3850458 |
PAD, Flame arrestor |
| 31 |
3852864 |
SCREW, Adapter to intake manifold |
| 32 |
3853373 |
STUD, Carb. to adaptor |
| 33 |
3854066 |
FLAME ARRESTOR |
| 34 |
3850217 |
THROTTLE LEVER & PIN |
| 35 |
3853561 |
NUT, Arrestor to carburetor |
| 37 |
3850950 |
ANCHOR, Cable |
| 38 |
3854987 |
DECAL, 7.4 GL |
