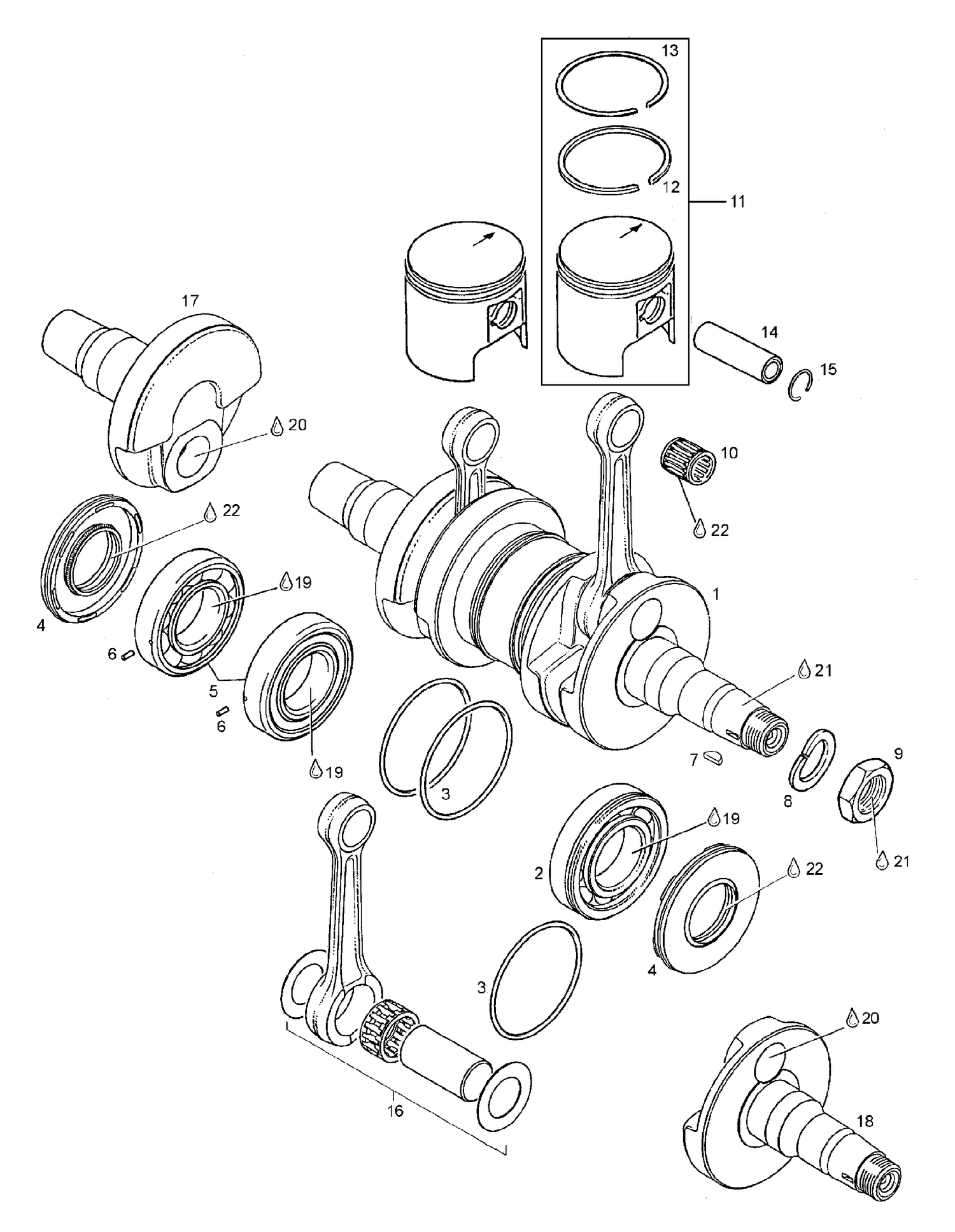

01- Crankshaft Assy — Parts Catalog

Ref	Part Number	Description
2	420832584	Bearing_Ball This part replaces 420832570.
3	293300022	O-Ring, 64 mm X 2 mm This part replaces 420250165.
4	420831952	Oil Seal This part replaces 420831950.
6	420929972	Drive Pin
7	420246055	Woodruff Key
8	420945759	Lock Washer
9	420842239	Hex. Nut, M22 X 1.5 This part replaces 420842230.
10	420932904	Needle cage
12	420915890	Piston ring 62.00 mm
12	420915891	Piston ring 62.25 mm
12	420915892	Piston ring 62.50 mm
13	420215210	Piston ring 62.00 mm
13	420215211	Piston ring 62.25 mm
13	420215212	Piston ring 62.50 mm
14	420916260	GUDGEON PIN - Call your local BRP dealership
15	420945735	Circlip
16	420996334	Rod repair kit
17	420818203	Crankhalf P.T.O side
18	420819010	MAG SIDE HALF-CRANK - Call your local BRP dealership This part replaces 420919979.
19	420297434	Loctite 76710
20	420897341	Loctite,14486/10cc
21	293800060	Loctite 243, 10 ml This part replaces 420899785.
