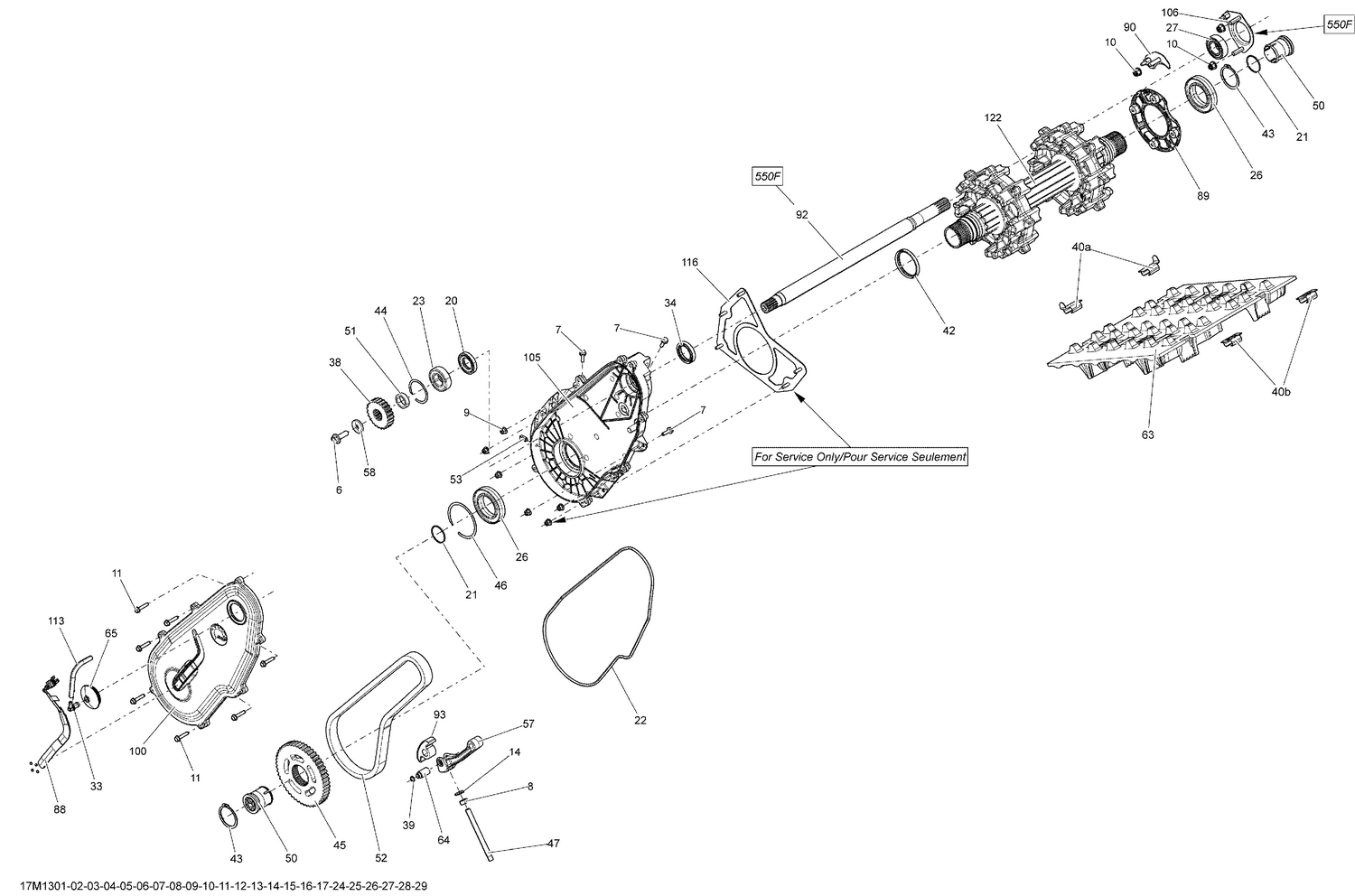

05- Drive System
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 7 | 207662034 | Hex. Flange Screw M6 X 20 |
| 8 | 232006414 | Hex. Nut M10 X 1.5 |
| 9 | 233261434 | Flange Elastic Nut M6 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 14 | 250200100 | Bonded Washer |
| 20 | XXX | Not Available As Spare Parts |
| 21 | 293300122 | O-Ring |
| 22 | 293300130 | Tight Seal |
| 23 | 293350115 | Ball Bearing This part replaces 293350055. |
| 26 | 293350059 | Ball Bearing |
| 27 | 293350074 | Ball Bearing |
| 33 | 414580700 | Male Connector |
| 34 | 293200158 | Oil Seal This part replaces 415049300. |
| 39 | 504152282 | Circlip |
| 42 | 293200159 | Oil Seal This part replaces 504152571. |
| 43 | 504152572 | Circlip |
| 44 | 504152576 | Circlip |
| 46 | 504152582 | Circlip |
| 47 | 504152602 | Adjustment Screw |
| 50 | 504152619 | Magnetic Cap |
| 51 | 504152628 | Shim |
| 53 | 504152636 | Magnetic Plug 1/8 - 27 NPTF |
| 57 | 504153429 | Tensioner chain This part replaces 504152685. |
| 58 | 504152784 | Spring Washer M10 |
| 63 | 504153015 | Track Ass'y 16" X 154" X 2.2"P |
| 63 | C9064M | Chenille 16X146*Track 16X146X2.25 This part replaces 504153014. |
| 64 | 504152841 | Tensioner Axle |
| 65 | 504152860 | Cap |
| 88 | 504152896 | Rotation Sensor |
| 89 | 504153886 | Retaining Ring This part replaces 504152949. |
| 90 | 504153418 | Bearing Housing Ass'y This part replaces 504152974. |
| 92 | XXX | Not Available As Spare Parts |
| 93 | 504152739 | Slider Chain |
| 100 | 504153147 | Chaincase Cover Ass'y |
| 105 | 504153181 | Chaincase |
| 106 | XXX | Not Available As Spare Parts |
| 113 | 219704410 | Polyurethane Hose 10000Mm Long |
| 116 | 518325816 | Plate |
| 122 | 504154054 | Drive Axle Ass'y This part replaces 504153083. |
