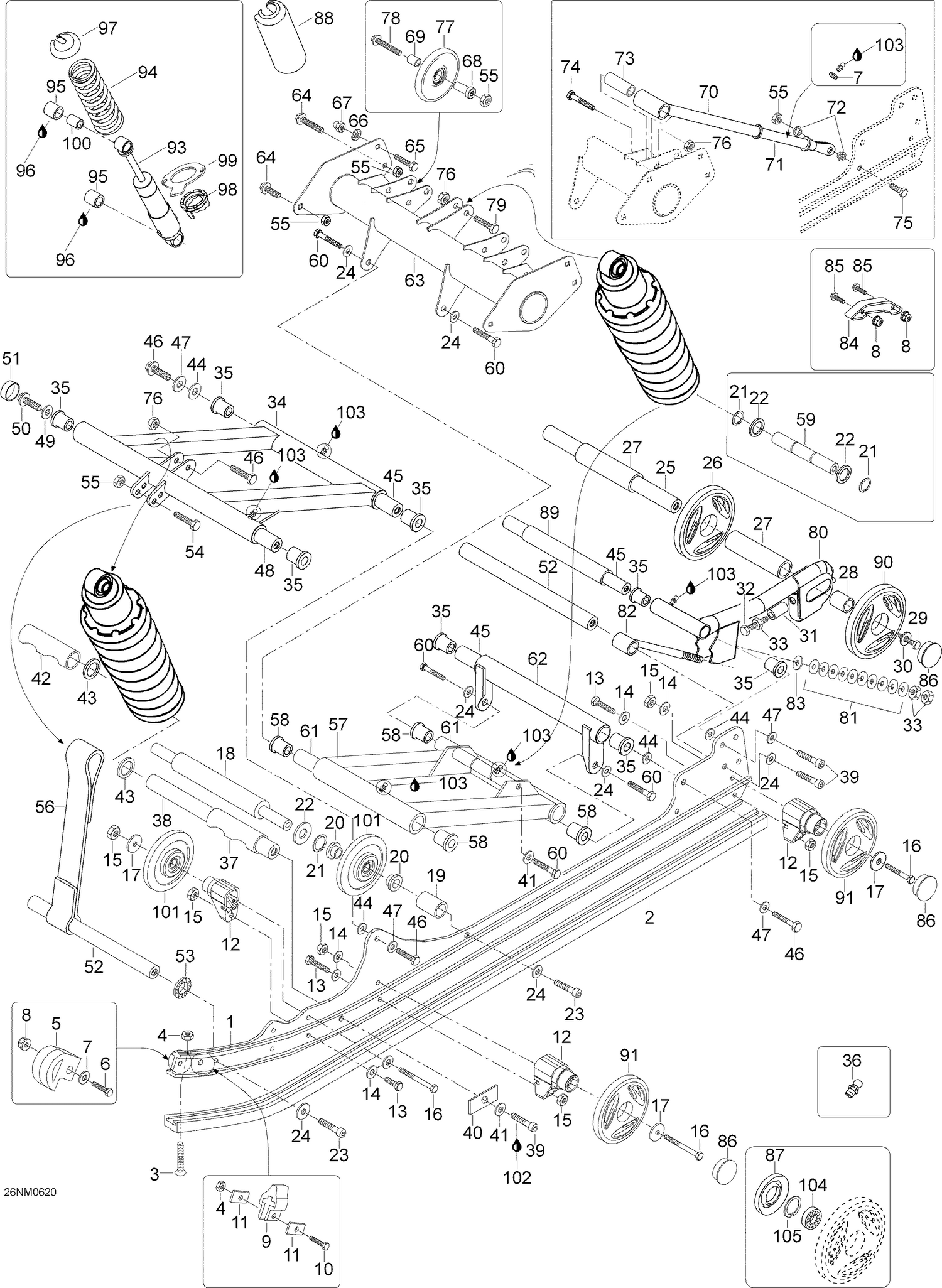

| Ref | Part Number | Description |
|---|
| 1 |
M5247224 |
RUNNER - Call your local BRP dealership |
| 2 |
605355362 |
Slide Shoe This part replaces M5347724. |
| 3 |
M40059 |
Screw M6X60 |
| 4 |
232561414 |
Elastic Stop Nut M6 |
| 5 |
605348954 |
Runner Protector |
| 6 |
207162544 |
Hex. Screw M6 X 25 |
| 7 |
234061410 |
Flat Washer 6 mm |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 9 |
M5448216 |
Rubber Stopper |
| 10 |
Not |
Available As Spare Part - Hex. screw M6 x 30 |
| 11 |
M548470 |
Plate |
| 12 |
605450182 |
SUPPORT - Call your local BRP dealership |
| 13 |
207182544 |
Hex. Screw M8 X 25 |
| 14 |
234081410 |
Flat Washer 8 mm This part replaces M20104. |
| 15 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 16 |
M40089 |
Screw |
| 17 |
503183100 |
Washer |
| 18 |
5347950 |
Shaft, supportwheel - Call your local BRP dealership This part replaces M5347950. |
| 19 |
5447951 |
Sleeve - Call your local BRP dealership This part replaces M5447951. |
| 20 |
503189534 |
Cushion |
| 21 |
293370056 |
Circlip 20X1.75 DIN471 This part replaces M31007. |
| 22 |
M31091 |
SHIM - Call your local BRP dealership |
| 23 |
40134 |
Screw Socket HD.DIN 912 This part replaces M40134. |
| 24 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 25 |
M5343284 |
SHAFT - Call your local BRP dealership |
| 26 |
503189478 |
Thin Wheel 165 |
| 27 |
5444096 |
Sleeve This part replaces M5444096. |
| 28 |
M5444098 |
Sleeve L=29 |
| 29 |
M40050 |
Hex. Screw With Nylon Patch |
| 30 |
503183300 |
Washer |
| 31 |
605633002 |
Spacer This part replaces 605452332. |
| 32 |
M40239 |
SCREW - Call your local BRP dealership |
| 33 |
232006414 |
Hex. Nut M10 X 1.5 |
| 34 |
5147672 |
Front arm - Call your local BRP dealership This part replaces M5147672. |
| 35 |
31024 |
Cushion This part replaces M31024. |
| 36 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011. |
| 37 |
5347718 |
Limiter - Call your local BRP dealership This part replaces M5347718. |
| 38 |
5347726 |
Shaft This part replaces M5347726. |
| 39 |
40134 |
Screw Socket HD.DIN 912 This part replaces M40536. |
| 40 |
5447940 |
Support plate This part replaces M5447940. |
| 41 |
20068 |
Lock Washer D10 This part replaces M20068. |
| 42 |
M5346649 |
SLEEVE - Call your local BRP dealership |
| 43 |
31013 |
Shim Ring This part replaces M31013. |
| 44 |
20116 |
Shim This part replaces M20116. |
| 45 |
5347713 |
Lower Shaft, Front Arm This part replaces M5347713. |
| 46 |
207004544 |
Hex. Screw M10 X 45 |
| 47 |
512056700 |
Lock Washer |
| 48 |
5347719 |
Upper Shaft This part replaces 605348606. |
| 49 |
M20090 |
Conical Spring Washer |
| 50 |
M40243 |
Screw M12 X 60 |
| 51 |
M5448025 |
Cap |
| 52 |
5347717 |
Shaft This part replaces M5347717. |
| 53 |
M4181158 |
Washer |
| 54 |
207084544 |
Hex. Screw M8 X 45 |
| 55 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 56 |
5447919 |
STOPPER STRAP - Call your local BRP dealership This part replaces M5447919. |
| 57 |
605349313 |
Rear Arm Weld Light |
| 58 |
31027 |
Flange Bearing (Cushion) This part replaces M31027. |
| 59 |
605451897 |
REARSHOCK SHAFT - Call your local BRP dealership |
| 60 |
207004044 |
Hex. Screw M10 X 40 |
| 61 |
5346865 |
SHAFT - Call your local BRP dealership This part replaces M5346865. |
| 62 |
M5347668 |
Welded Rear Arm |
| 63 |
605249988 |
UPPER ARM - Call your local BRP dealership |
| 64 |
207782044 |
Carriage Bolt, M8 X 20 This part replaces M40058. |
| 65 |
M40056 |
Screw |
| 66 |
M20072 |
Lock Washer |
| 67 |
M33044 |
Nut |
| 68 |
605450372 |
FLANGED SLEEVE - Call your local BRP dealership |
| 69 |
605450373 |
SLEEVE - Call your local BRP dealership |
| 70 |
5347851 |
Poker tube This part replaces M5347851. |
| 71 |
M5347852 |
Axe *Shaft |
| 72 |
M5447853 |
Insert |
| 73 |
5447848 |
Bearing sleeve - Call your local BRP dealership This part replaces M5447848. |
| 74 |
207186044 |
Hex. screw M8 x 60 |
| 75 |
207103544 |
Hex. Screw M10 X 35 |
| 76 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 77 |
M46027 |
Idler Wheel |
| 78 |
M40088 |
Hex. Screw M8 X 70 |
| 79 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 80 |
605251781 |
LH Extension |
| 80 |
605251782 |
RH Extension |
| 81 |
25004 |
Cup Spring This part replaces M25004. |
| 82 |
5447373 |
Eye bolt adjuster This part replaces M5447373. |
| 83 |
234002410 |
Flat Washer 10 mm This part replaces M20011. |
| 84 |
503192731 |
SLIDING PAD - Call your local BRP dealership This part replaces M5343191. |
| 85 |
207764044 |
BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064. |
| 86 |
570063600 |
Wheel Cap |
| 87 |
572089000 |
LABYRINTH SEAL - Call your local BRP dealership |
| 88 |
M5346754 |
Shock Protector |
| 89 |
605448429 |
Sleeve |
| 90 |
503190856 |
Wheel 165 mm |
| 91 |
503190796 |
WHEEL 139 MM ASS'Y, FULL MOON - Call your local BRP dealership |
| 93 |
23152 |
Shock, rear arm This part replaces M23152. |
| 93 |
M23204 |
Center Shock |
| 94 |
25065 |
SPRING, FRONT ARM - Call your local BRP dealership This part replaces M25065. |
| 94 |
M230079 |
Rear Spring |
| 95 |
31094 |
Cushion This part replaces M31094. |
| 96 |
M320006 |
Loctite 641, 50 ml |
| 97 |
230076 |
Spring Seat This part replaces M230076. |
| 98 |
M230078 |
CAM - Call your local BRP dealership |
| 99 |
605348748 |
ARM ADJUSTING ASS'Y - Call your local BRP dealership |
| 100 |
5446652 |
Bushing This part replaces M5446652. |
| 101 |
503190798 |
Wheel 139 mm Ass'y |
| 102 |
293800060 |
Loctite 243, 10 ml |
| 103 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 104 |
293350115 |
Ball Bearing This part replaces 503190795. |
