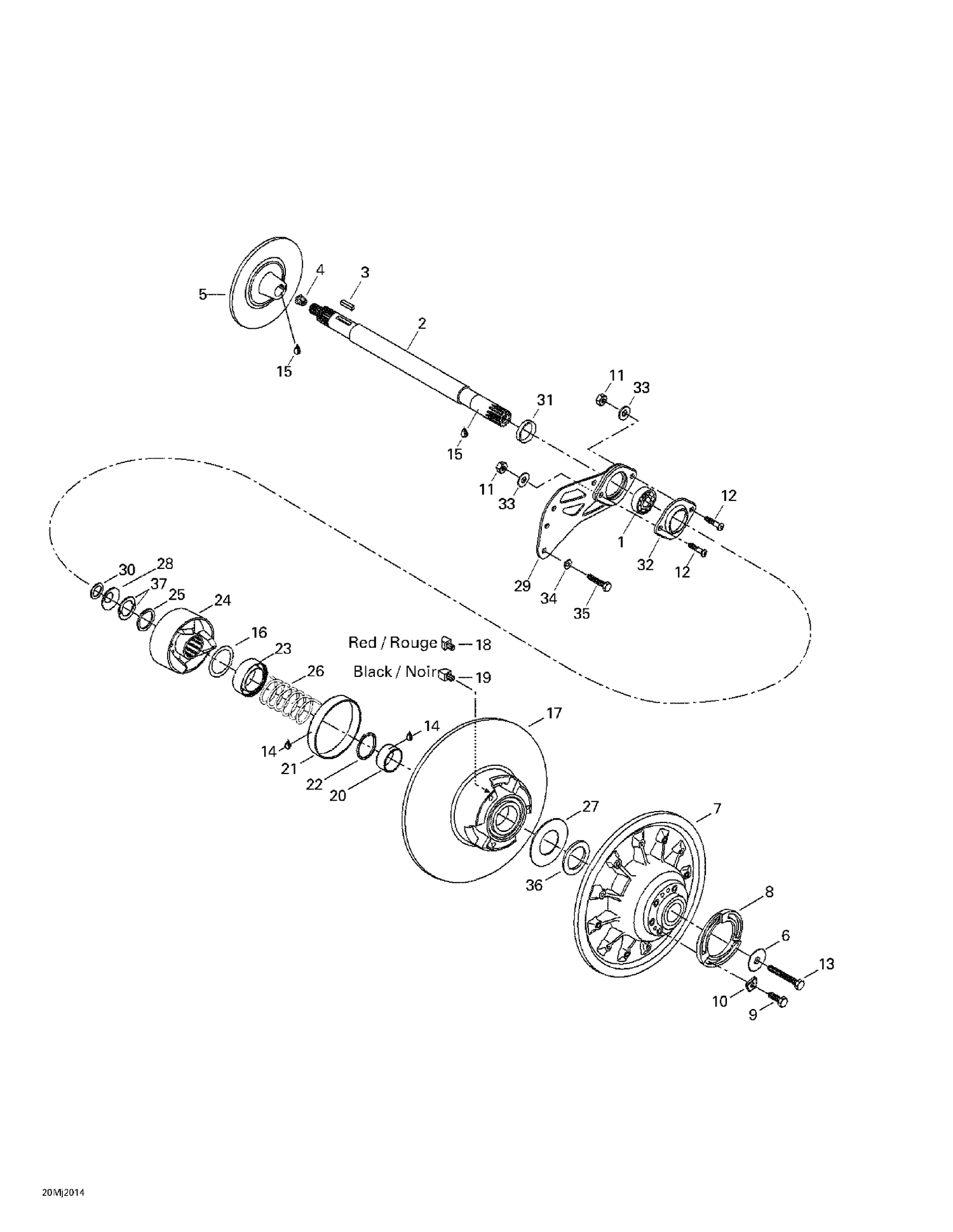

| Ref | Part Number | Description |
|---|
| 1 |
405408200 |
BALL BEARING - Call your local BRP dealership |
| 2 |
501026300 |
COUNTER SHAFT - Call your local BRP dealership |
| 3 |
507021300 |
KEY - Call your local BRP dealership |
| 4 |
414784800 |
CORK - Call your local BRP dealership |
| 5 |
507031300 |
BRAKE DISK - Call your local BRP dealership |
| 6 |
517302322 |
Strength Washer |
| 8 |
415005800 |
Adjustment Ring |
| 9 |
207162544 |
Hex. Screw M6 X 25 |
| 10 |
415005900 |
Adjustment Shim |
| 11 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 12 |
205483046 |
SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership |
| 13 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 14 |
413703100 |
Loctite 609, 10 ml |
| 15 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 16 |
417126322 |
SWIVEL ABUTMENT - Call your local BRP dealership |
| 18 |
417126373 |
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 19 |
417126374 |
Front Cam Slider Shoe, Black |
| 20 |
Not |
Available As Spare Part - Bushing |
| 21 |
417126902 |
BUSHING - Call your local BRP dealership This part replaces 414978100. |
| 22 |
371911200 |
CIRCLIP - Call your local BRP dealership |
| 23 |
417126381 |
GUARD - Call your local BRP dealership |
| 24 |
417126385 |
Cam Ass'y |
| 25 |
417126375 |
Spacer |
| 26 |
414978300 |
Release Spring, Purple |
| 27 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 28 |
417300055 |
Protector |
| 29 |
080039300 |
Spacer (Casting) |
| 30 |
417300265 |
Spacer This part replaces 417300054. |
| 31 |
504149100 |
Spacer |
| 32 |
504153089 |
BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900. |
| 33 |
234081410 |
Flat Washer 8 mm |
| 34 |
234161471 |
Lock Washer M6, Black |
| 35 |
207161844 |
Hex. Screw M6 X 18 |
| 36 |
504112300 |
SHIM - Call your local BRP dealership |
| 207162244 |
HEX. |
SCREW M6 X 22 - Call your local BRP dealership 207162244 |
| 207162244 |
Vis |
Hex. M6 X 22 - Appelez votre concessionnaire BRP local 207162244 |
