Home / BRP / 2013 / EXPEDITION / EXPEDITION SE 600HOE, REV XU, 2013 000SGDE00 / 03- Magneto

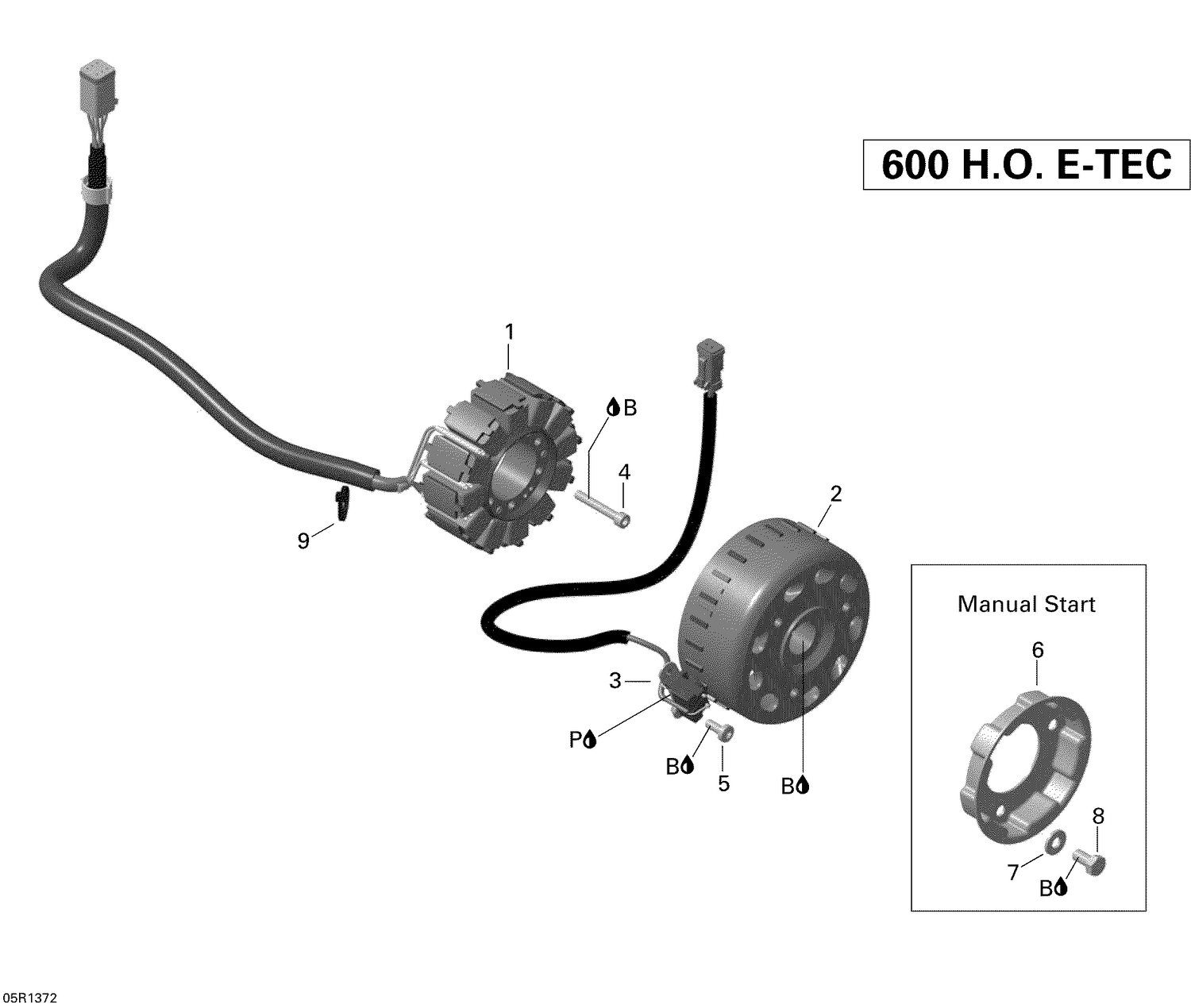

03- Magneto

03- Magneto

Parts (7)

RefPart NumberDescription
B 293800060 Loctite 243, 10 ml
1 420665435 Stator Plate
2 420665442 Flywheel
3 410922969 Pick-Up Ass'y
4 420241816 SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
5 420640324 Torx Screw M6 X 16
9 420866714 Tie Rap
