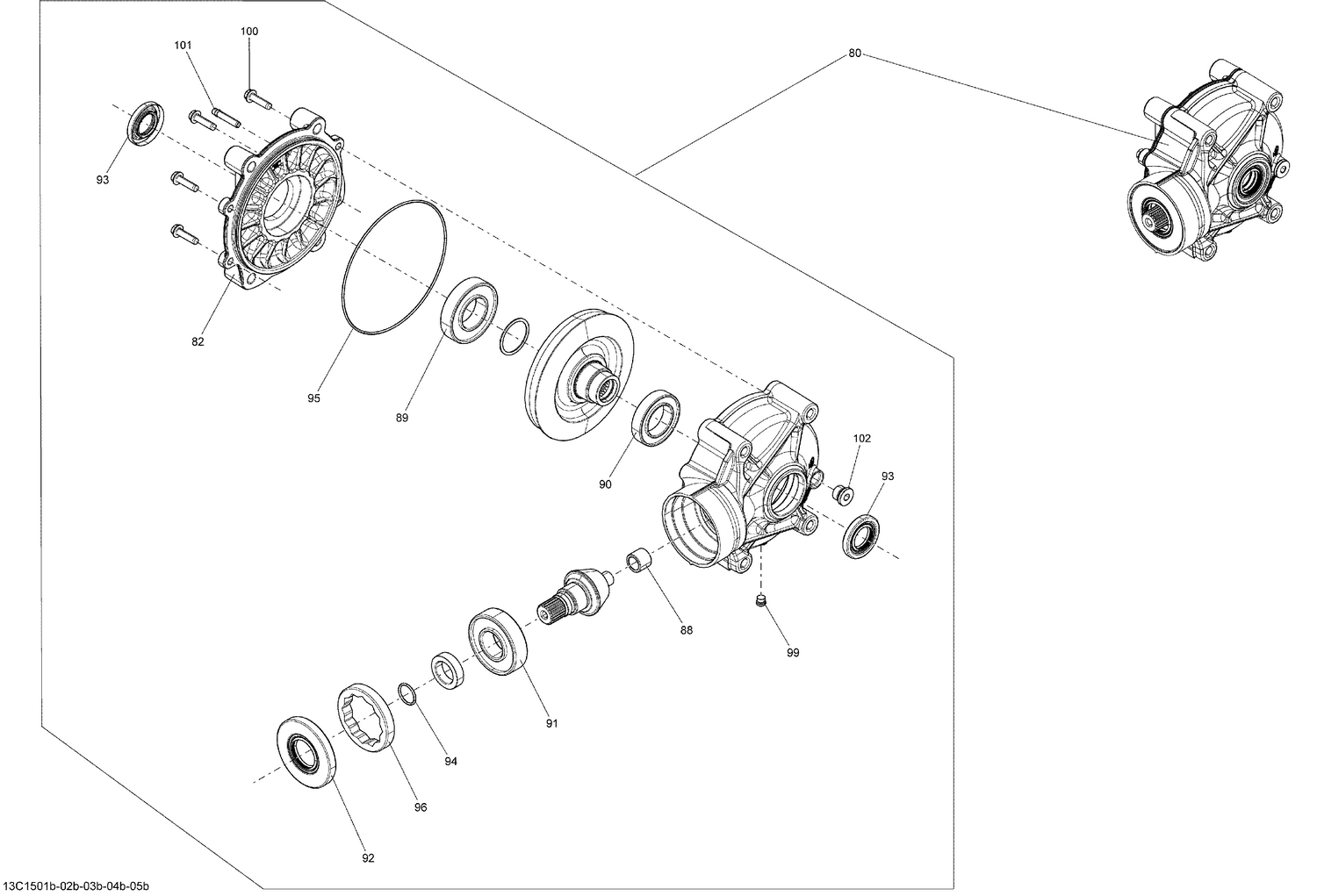

08- Drive System, Rear _Differential_13C1503b
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 705502517 | Final Drive Unit This part replaces 705502096. |
| 82 | 705502519 | Pinion Cover This part replaces 705501869. |
| 88 | 705501874 | Needle Bearing |
| 89 | 705501875 | Ball Bearing |
| 90 | 705501876 | Ball Bearing |
| 91 | 705501877 | Ball Bearing |
| 92 | 705501878 | Oil Seal |
| 93 | 705502110 | Oil Seal |
| 94 | 705501880 | Oil Seal |
| 95 | 705501881 | Oil Seal iDIA 6.737 oDIA 6.943 |
| 96 | 705501882 | Nut |
| 99 | 705501885 | Drain Plug |
| 100 | 705501886 | Bolt |
| 101 | 705501887 | Vent Valve |
