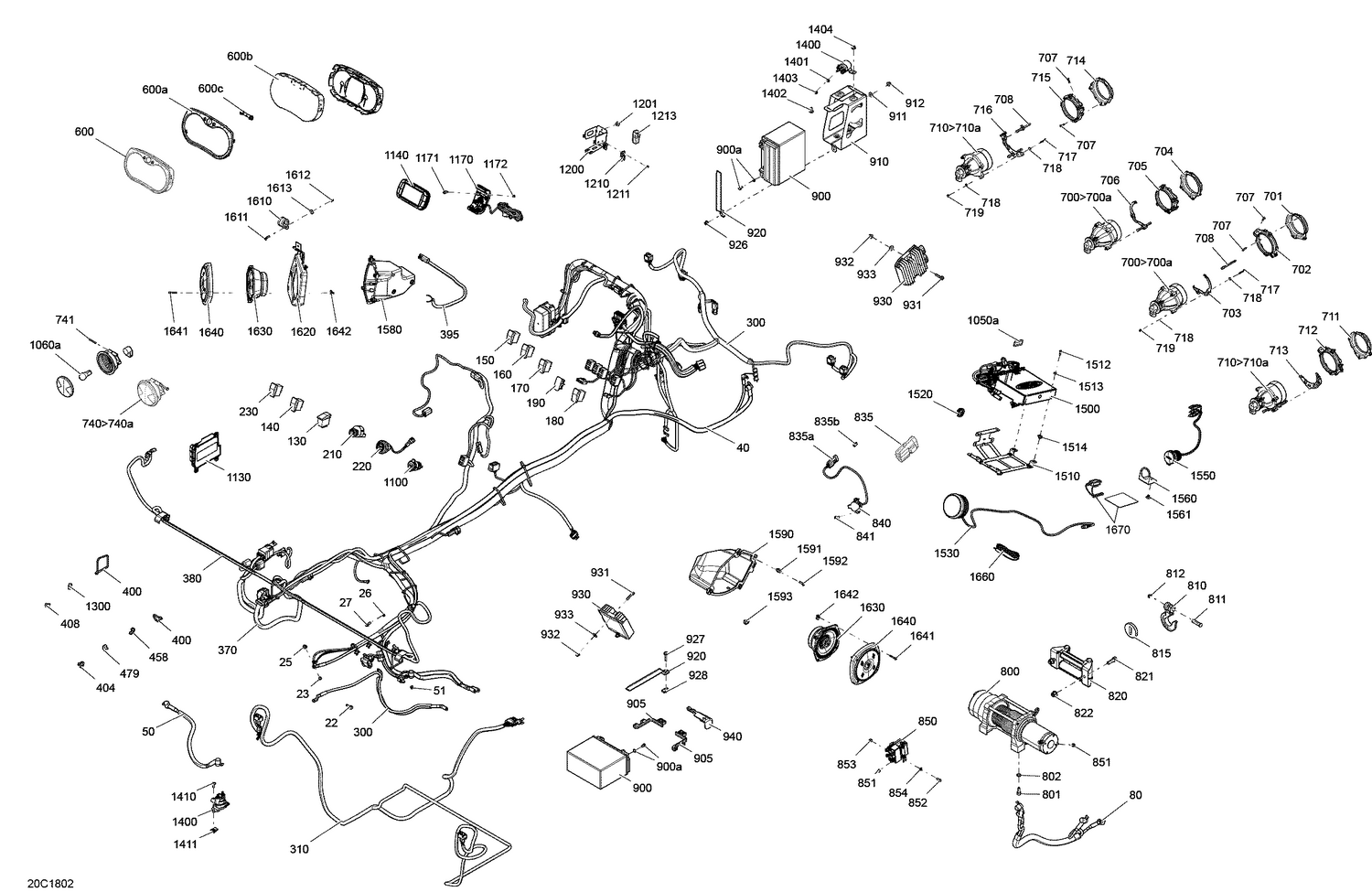

10- Electrical System Commander - Package LTD
Parts (111)
| Ref | Part Number | Description |
|---|---|---|
| 23 | 234461608 | External Serrated Lock Washer 6 mm |
| 25 | 233061414 | Hex. Flange Nut M6 |
| 26 | 234461608 | External Serrated Lock Washer 6 mm |
| 27 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 51 | 232561414 | Elastic Stop Nut M6 |
| 80 | 710004387 | Electrical Winch Cable |
| 130 | 710002053 | Switch, Over ride |
| 140 | 710001725 | Hi/Low Switch |
| 150 | 710001737 | Interrupteur 4X4 |
| 160 | 710003541 | Switch PPS Sport |
| 170 | 710001781 | Switch DPS |
| 180 | 710002052 | Switch Winch |
| 190 | 710007173 | Plug Carling This part replaces 710001999. |
| 210 | 710008400 | Ignition Switch This part replaces 710003847. |
| 220 | 710002594 | Engine Start Button |
| 310 | 710004681 | Rear Harness |
| 380 | 710004339 | Radio Harness |
| 395 | 710004340 | Speaker Harness |
| 400 | 293750008 | Tie Wrap 368 mm |
| 400 | 414115200 | Tie-Rap 180 mm |
| 408 | 293730040 | Mount Dart |
| 600a | 415129348 | Gauge Ring |
| 600b | 415129349 | Lens |
| 600c | 415129355 | Speedometer Button |
| 700a | 415129249 | Halogen Bulb |
| 701 | 710001081 | RH Low Front Housing |
| 702 | 710001082 | RH Low Rear Housing |
| 703 | 710001094 | RH Low Light Support |
| 704 | 710001083 | LH Low Front Housing |
| 705 | 710001084 | LH Low Rear Housing |
| 706 | 710001037 | LH Low Light Support |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 708 | 710001147 | Setting Screw |
| 710a | 415129249 | Halogen Bulb |
| 711 | 710001085 | RH High Front Housing |
| 712 | 710001086 | RH High Rear Housing |
| 713 | 710001115 | RH High Light Support |
| 714 | 710001087 | LH High Front Housing |
| 715 | 710001088 | LH High Rear Housing |
| 716 | 710001036 | LH High Light Support |
| 717 | 207142544 | Hex. Screw M4 X 25 |
| 718 | 234051410 | Flat Washer M5 |
| 719 | 232541414 | Elastic Stop Nut M4 |
| 740a | 520000758 | Bulb |
| 741 | 241154540 | Hex. Screw K50 X 45 |
| 800 | 710007030 | Winch_Electric This part replaces 710005732. |
| 801 | 205082044 | Socket Head Screw M8 X 20 |
| 802 | 234181401 | Lock Washer 8 mm |
| 810 | 705014949 | Winch Hook Kit This part replaces 715003523. |
| 811 | 705014949 | Winch Hook Kit This part replaces 715003523. |
| 812 | 705014949 | Winch Hook Kit This part replaces 715003523. |
| 815 | 710007028 | Stopper This part replaces 710005142. |
| 820 | 710007082 | Fairlead Roller This part replaces 710004822. |
| 821 | 205003044 | Socket Screw M10 x 30 |
| 822 | 233201414 | Hex. Flange Elastic Nut M10 |
| 835a | 278000281 | Female Terminal Housing, 3 Circuits |
| 835b | 710000992 | Clip |
| 840 | 710007053 | Wiring Harness_Switch Winch This part replaces 710005258. |
| 841 | 250000720 | Torx Screw K50 X 16 |
| 850 | 710006991 | Solenoid This part replaces 703500947. |
| 851 | 232561434 | Elastic Stop Nut M6 |
| 852 | 207151644 | Hex. Screw M5 X 16 |
| 853 | 233251494 | Elastic Flange Nut M5 |
| 854 | 234051410 | Flat Washer M5 |
| 900a | 250000282 | Battery Bolt Kit |
| 920 | 710001916 | Battery Holder |
| 930 | 710005842 | Voltage Regulator This part replaces 710005568. |
| 931 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 932 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 933 | 234062670 | Stainless Steel Flat Washer |
| 1050a | 710003269 | Cap Protector |
| 1060a | 219800128 | Bulb |
| 1100 | 710001248 | DC Outlet |
| 1140 | 710005034 | GPS |
| 1170 | 710003210 | GPS Support This part replaces 710002545. |
| 1171 | 250000797 | Torx Head Screw M4 X 16 |
| 1172 | 232541484 | Elastic Stop Nut M4 |
| 1200 | 710003335 | Fuse Holder |
| 1201 | 293150103 | Pop Rivet 3/16" |
| 1210 | 270000141 | Clip |
| 1211 | 390402400 | Pop Rivet 3/16" |
| 1213 | 710003006 | Housing |
| 1300 | 414227300 | Clip |
| 1401 | 234161601 | Lock Washer Helical M6 |
| 1403 | 232061600 | Hex. Nut M6 |
| 1500 | 710005442 | Amplifier |
| 1510 | 710002556 | Amplifier Support |
| 1512 | 250000750 | Torx Screw M4 X 16 |
| 1513 | 234042600 | Flat Washer 4 mm, Stainless |
| 1514 | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 1520 | 710002926 | Grommet Boot |
| 1530 | 710002549 | Radio Interface |
| 1550 | 710002551 | USB Extension |
| 1560 | 710002731 | USB Extension Support |
| 1561 | 293150103 | Pop Rivet 3/16" |
| 1580 | 705012294 | LH Speaker HSG |
| 1590 | 705012293 | RH Speaker HSG |
| 1591 | 250000958 | Panel Nut M5 X 0.8 |
| 1592 | 250000724 | Torx Screw M5 X 20 |
| 1593 | 414227300 | Clip |
| 1610 | 709200036 | Hose Anchor |
| 1611 | 250000724 | Torx Screw M5 X 20 |
| 1612 | 233251494 | Elastic Flange Nut M5 |
| 1613 | 250200025 | Washer M5 |
| 1620 | 710002789 | Speaker Box Plate |
| 1630 | 710003233 | Front Speaker |
| 1640 | 710002790 | Speaker Cover |
| 1641 | 205042560 | Socket Head Screw M4 X 25 |
| 1642 | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 1660 | 710002810 | Antenna |
| 1670 | 710005958 | BlueTooth Module |
