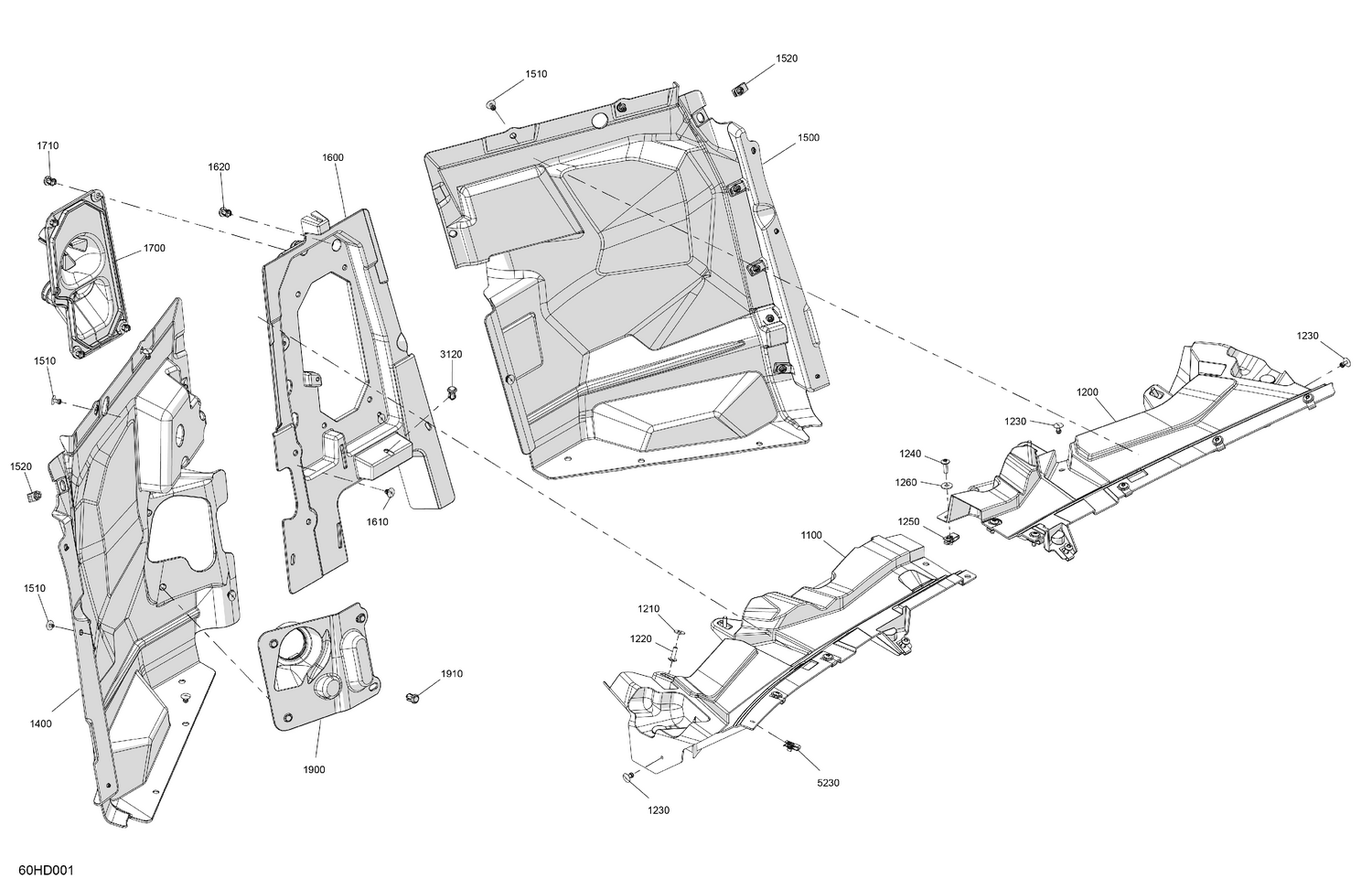

07- Cab Interior - Firewall
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1100 | 707900337 | LH Front Upper Deflector |
| 1200 | 707900338 | RH Front Upper Deflector |
| 1210 | 234062670 | Stainless Steel Flat Washer |
| 1220 | 250000722 | Torx Screw M6 X 20 |
| 1230 | 293150104 | Pop Rivet 3/16" |
| 1240 | 250000722 | Torx Screw M6 X 20 |
| 1250 | 250100198 | Panel Nut M6 X 1.0 |
| 1260 | 234062670 | Stainless Steel Flat Washer |
| 1400 | 707901349 | Front Seperation Panel This part replaces 707900930. |
| 1500 | 707900931 | RH Front Bulkhead |
| 1510 | 293150104 | Pop Rivet 3/16" |
| 1520 | 250100198 | Panel Nut M6 X 1.0 |
| 1600 | 707900407 | Front Bulkhead Panel |
| 1610 | 293150104 | Pop Rivet 3/16" |
| 1620 | 293150230 | Tuflok Plastic Rivet |
| 1700 | 707900701 | Grommet |
| 1710 | 293150230 | Tuflok Plastic Rivet |
| 1900 | 707900754 | Steering Column Cover |
| 1910 | 293150230 | Tuflok Plastic Rivet |
| 3120 | 293150230 | Tuflok Plastic Rivet |
