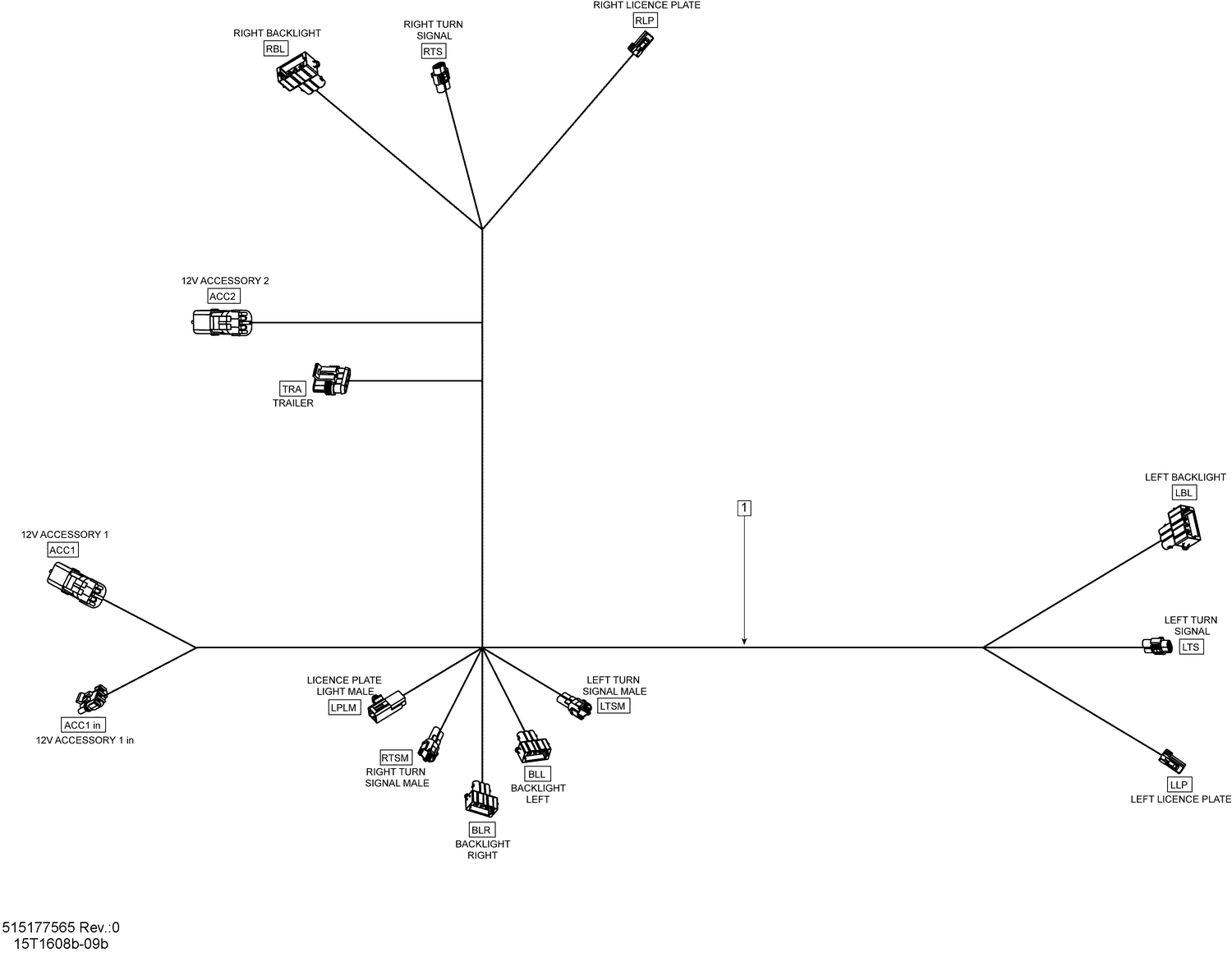

10- Electrical Harness _Rear Harness
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| ACC1 | 278000217 | Female Housing, 2 Circuits |
| ACC1 | 278000222 | Male Terminal |
| ACC1 | 278001065 | Wire Seal |
| ACC1 | 409004300 | Male Terminal |
| ACC1 | 710000992 | Clip |
| ACC2 | 278000217 | Female Housing, 2 Circuits |
| ACC2 | 278000222 | Male Terminal |
| ACC2 | 278001065 | Wire Seal |
| ACC2 | 409004300 | Male Terminal |
| ACC2 | 710000992 | Clip |
| BLL | Not | Available As Spare Part - Housing |
| BLR | Not | Available As Spare Part - Housing |
| LBL | 415128501 | Seal |
| LBL | 710003139 | HOUSING - Call your local BRP dealership |
| LLP | 515175231 | Female Terminal |
| LLP | 515175658 | Female Housing, 2 Circuits |
| LPLM | 515175232 | Male Terminal |
| LPLM | 710000667 | Male Housing, 2 Circuits |
| LTS | 409012100 | Female Terminal |
| LTS | 710000402 | Wire Seal |
| LTS | Not | Available As Spare Part - Female Housing |
| LTSM | 409011300 | Male Terminal |
| LTSM | Not | Available As Spare Part - Male Housing, 2 Circuits |
| RBL | 415128501 | Seal |
| RBL | 710003139 | HOUSING - Call your local BRP dealership |
| RLP | 515175231 | Female Terminal |
| RLP | 515175658 | Female Housing, 2 Circuits |
| RTS | 409012100 | Female Terminal |
| RTS | 710000402 | Wire Seal |
| RTS | Not | Available As Spare Part - Female Housing |
| RTSM | 409011300 | Male Terminal |
| RTSM | Not | Available As Spare Part - Male Housing, 2 Circuits |
| TRA | 278001013 | Wire Seal |
| TRA | 278001014 | Female Terminal |
| TRA | 515176621 | Wire Seal |
| TRA | 710000780 | Connector |
| 1 | 515177565 | Rear Light Harness |
