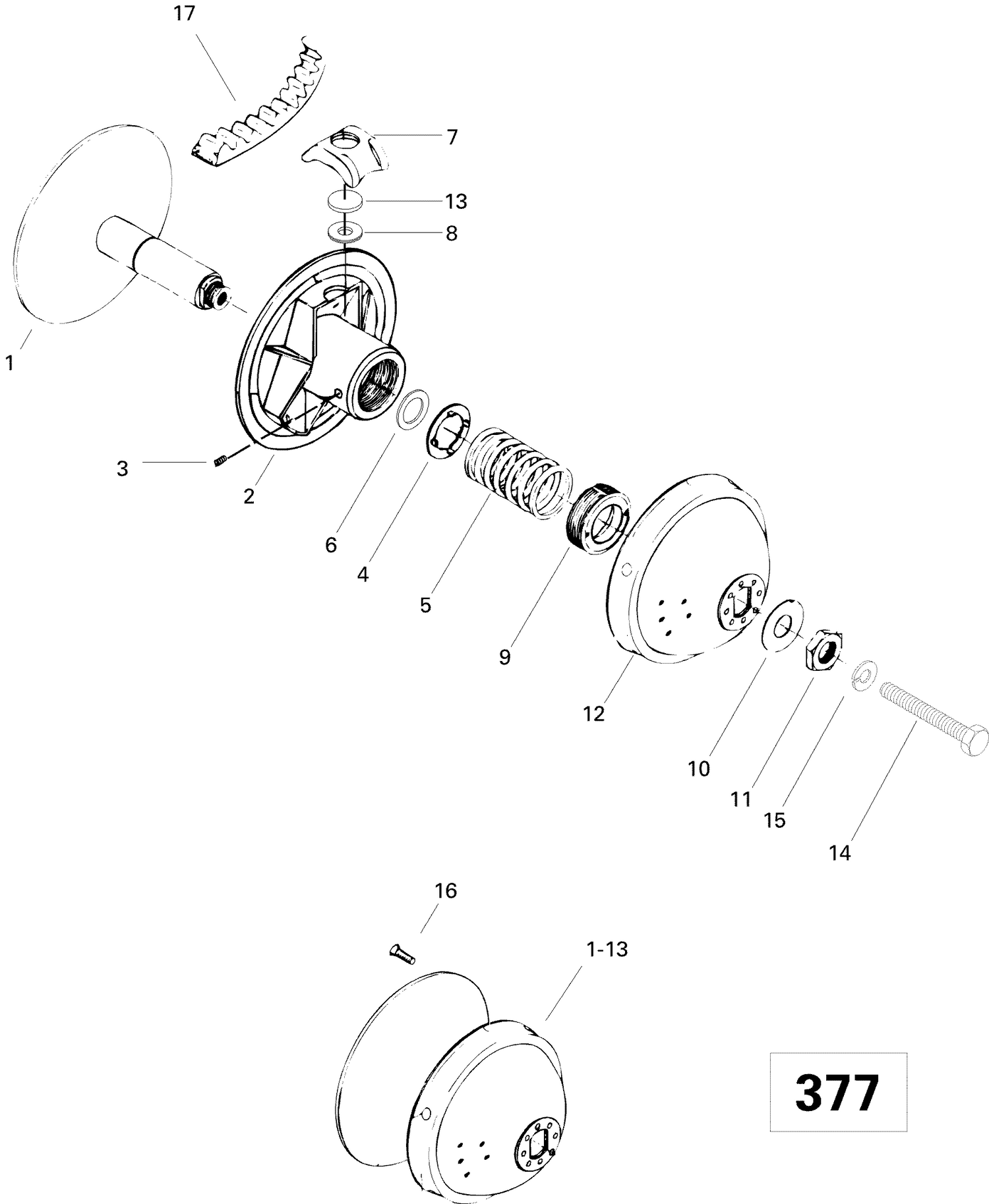

05- Drive Pulley E
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417120200 | Inner Half |
| 2 | 417120300 | Outer Half |
| 3 | 417116800 | Locking Screw |
| 4 | 417116200 | Guide Washer |
| 5 | 417118400 | Spring (Red/Blue) |
| 6 | 417116100 | Circlip |
| 7 | 417118100 | CENTRIFUGE BLOCK - Call your local BRP dealership |
| 8 | 417120400 | ADJUSTMENT WEIGH - Call your local BRP dealership |
| 9 | 417117300 | Bushing Support |
| 10 | 417116500 | Retainer Washer |
| 11 | 417118300 | NUT - Call your local BRP dealership |
| 12 | 417118600 | Cap |
| 13 | 417114500 | CAPSULE - Call your local BRP dealership |
| 14 | 417113800 | BOLT - Call your local BRP dealership |
| 15 | 392002800 | WASHER-LOCK HELICAL SPRING - Call your local BRP dealership |
| 16 | 732600021 | Screw M6 x 16 |
