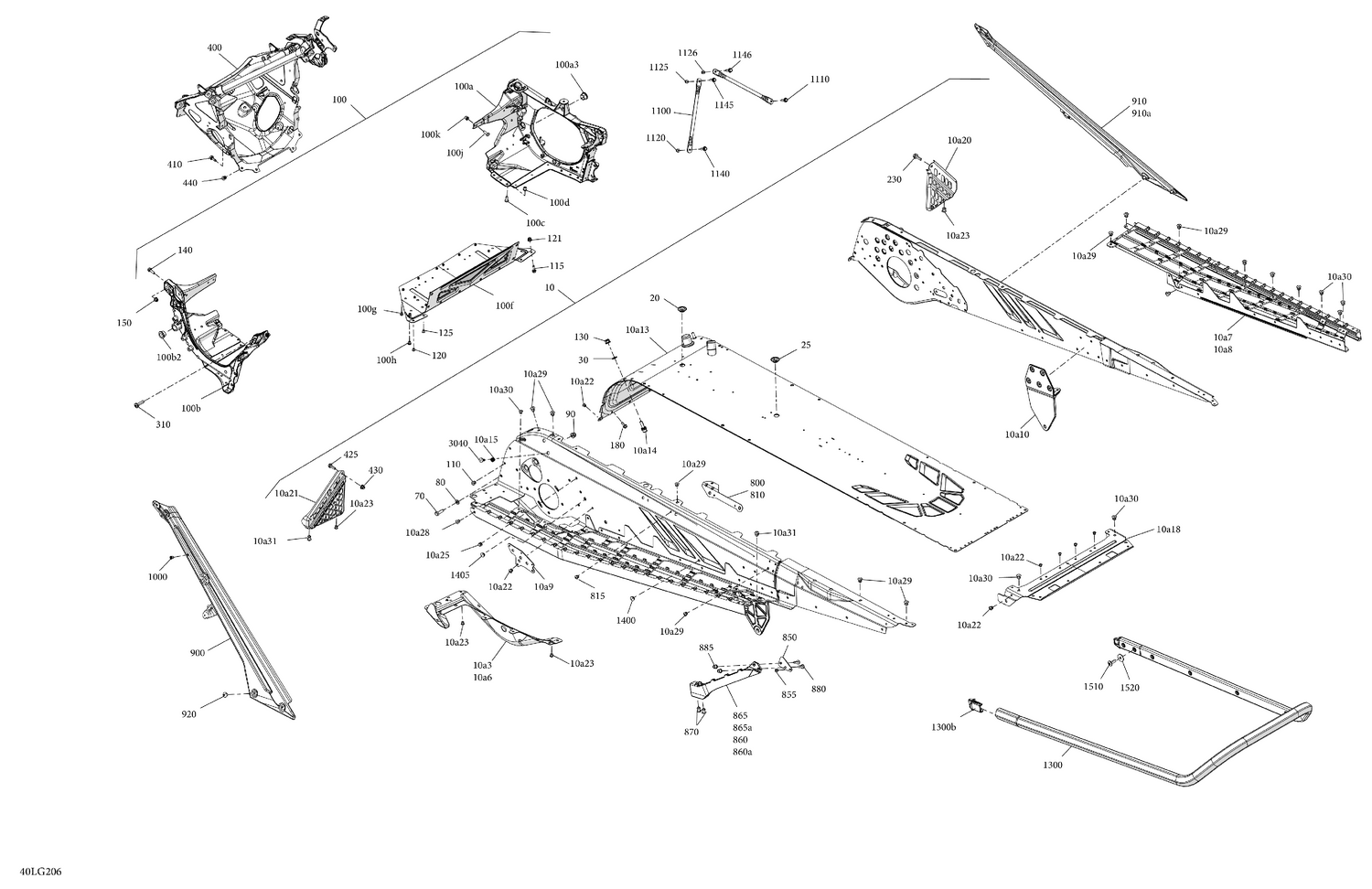

| Ref | Part Number | Description |
|---|
| 10 |
415131195 |
Deep Black, Chassis Tunnel Module 154 |
| 10a10 |
518335935 |
Rear Arm Suppport |
| 10a13 |
518335750 |
Radiator Tunnel 154 |
| 10a14 |
250300652 |
Protruding Stud M8 x 22 |
| 10a15 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 10a18 |
518335940 |
Plate Rear |
| 10a20 |
518332462 |
RH Footrest |
| 10a21 |
518332463 |
LH Footrest |
| 10a22 |
293150312 |
Rivet Ornit 4,8 X 11,3 |
| 10a23 |
293150313 |
Rivet Ornit 4,8 X 8,8 |
| 10a25 |
293150245 |
Henrob Rivet |
| 10a28 |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10a29 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10a3 |
518332455 |
Footrest Reinforcement |
| 10a30 |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 10a31 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10a6 |
518332456 |
Footrest Reinforcement |
| 10a7 |
518336179 |
RH Footstep |
| 10a8 |
518336180 |
LH Footstep |
| 10a9 |
518337274 |
Front Suspension Arm Reinforcement |
| 20 |
293730052 |
Black, Plug |
| 25 |
293730052 |
Black, Plug |
| 30 |
234081410 |
Flat Washer 8 mm |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505073317 |
Leg Cushion |
| 100b2 |
505073317 |
Leg Cushion |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332716 |
Bottom Plate |
| 100g |
293150312 |
Rivet Ornit 4,8 X 11,3 |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100k |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 115 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 120 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 121 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 125 |
293150268 |
Rivet Ornit 6,5 X 18.5 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 400 |
518334460 |
Chassis Suspension Module |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 425 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 430 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 440 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 800 |
518331744 |
LH Under Chassis Reinforcement |
| 810 |
518331745 |
RH Under Chassis Reinforcement |
| 815 |
293150312 |
Rivet Ornit 4,8 X 11,3 |
| 850 |
518337064 |
Rear Chassis Reinforcement |
| 855 |
293150312 |
Rivet Ornit 4,8 X 11,3 |
| 860a |
518335936 |
RH Roller Link |
| 865a |
518335937 |
LH Roller Link |
| 870 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 880 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 885 |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 900 |
518337561 |
Mineral Blue, LH Rear Diagonal Cross Member |
| 910a |
518336216 |
RH Rear Diagonal Cross Member |
| 920 |
250001376 |
Screw-Torx Truss M8 X 12 |
| 1000 |
293450267 |
Insert M5 - 0.8 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1125 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1126 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1145 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1146 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1300b |
520001612 |
Cap |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1405 |
293730060 |
Black Dart 10 Mm |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 3040 |
293730079 |
Dart |
