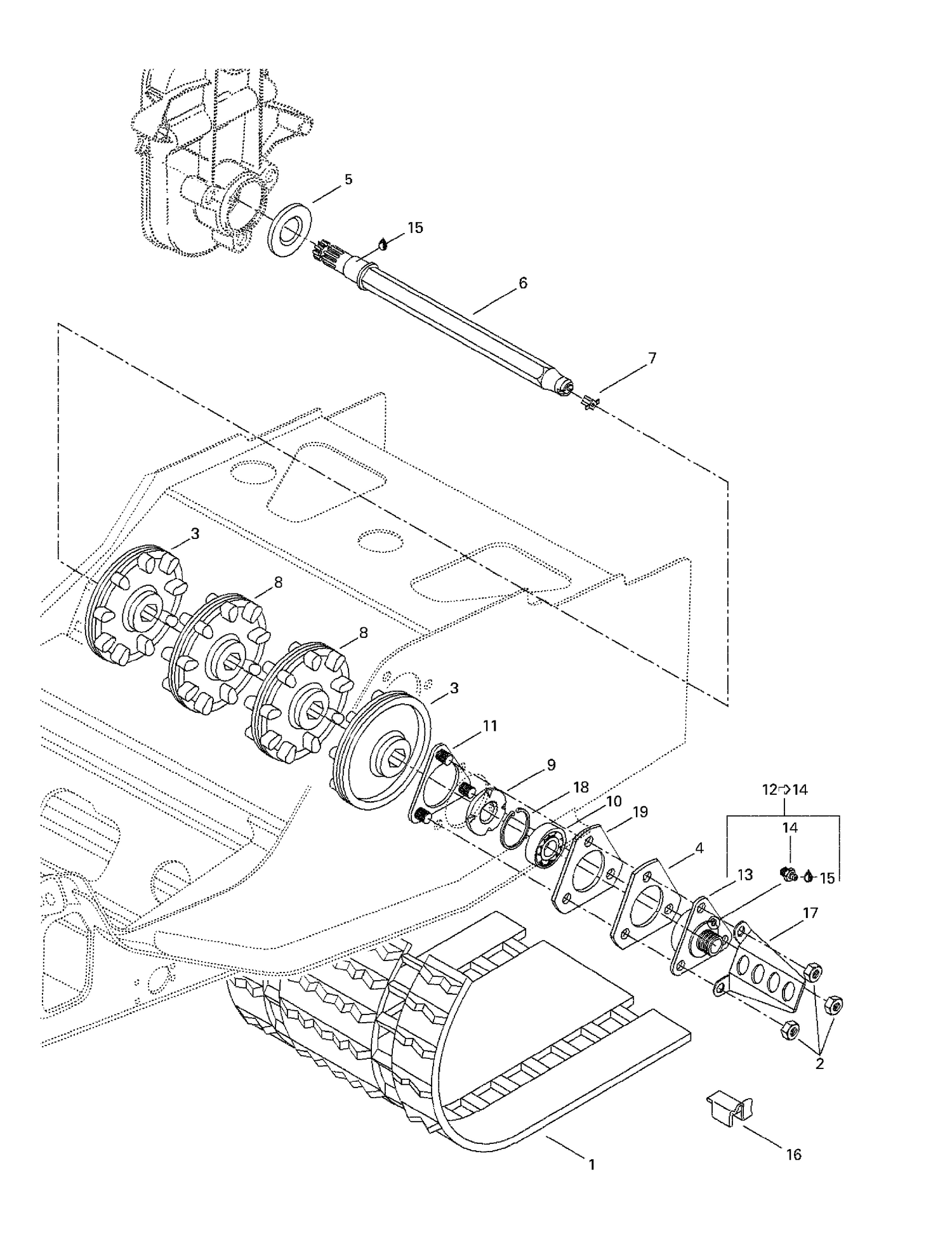

| Ref | Part Number | Description |
|---|
| 2 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 4 |
501022200 |
Spacer |
| 5 |
504151925 |
OIL SEAL - Call your local BRP dealership This part replaces 581056500. |
| 6 |
501025500 |
Drive Axle |
| 7 |
572010100 |
SPEEDO DRIVE INSERT - Call your local BRP dealership |
| 9 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 10 |
293350115 |
Ball Bearing This part replaces 405404400. |
| 11 |
501024100 |
Retainer Ring |
| 13 |
501017500 |
Ball Bearing Housing |
| 14 |
408200700 |
Grease Fitting |
| 15 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 16 |
415129528 |
Track Guide This part replaces 500003400. |
| 18 |
371910200 |
CIRCLIP - Call your local BRP dealership |
