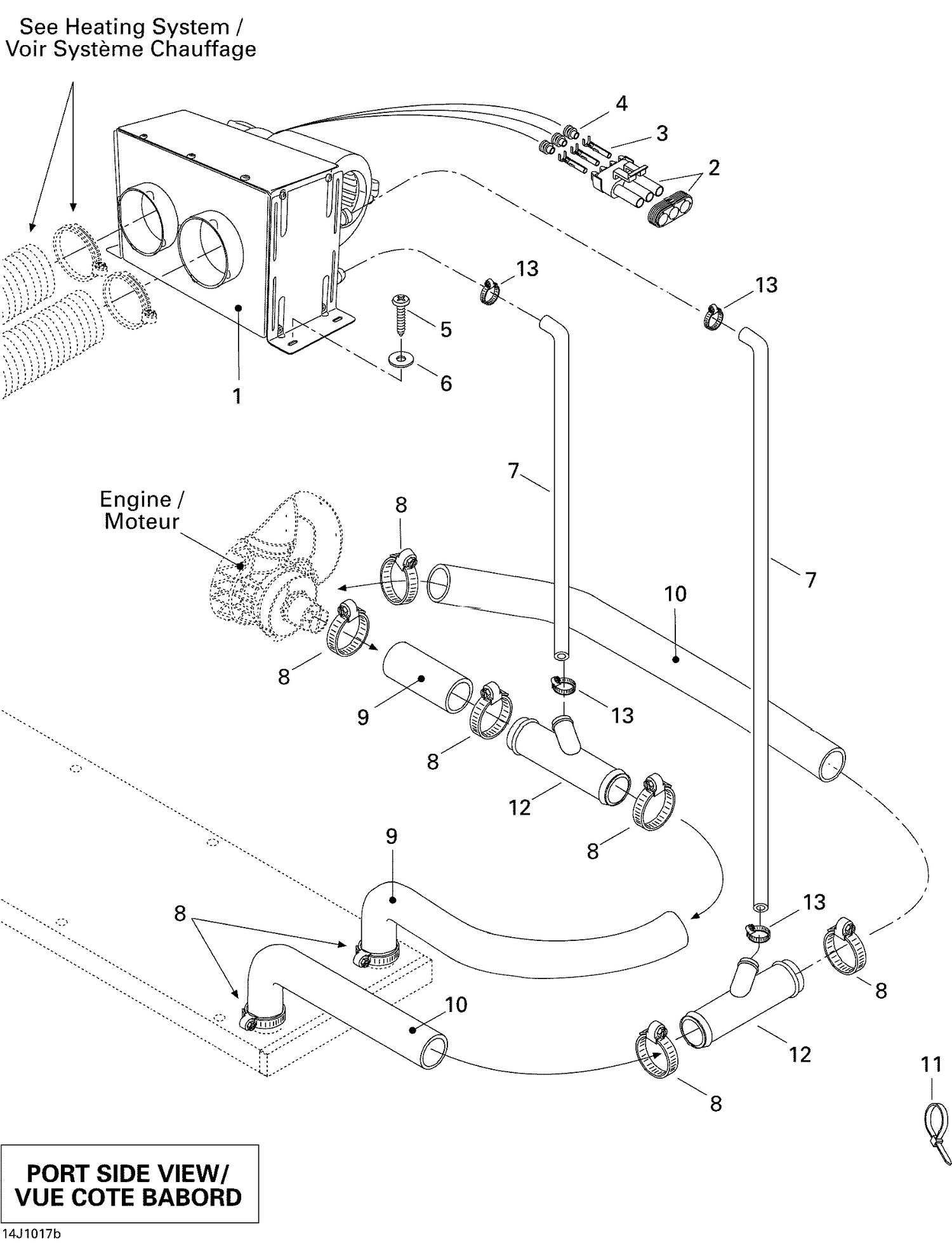

01- Cooling System
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204300198 | HEATER UNIT - Call your local BRP dealership |
| 2 | 278000273 | Male Housing, 3 Circuits |
| 3 | 278000223 | Female Terminal |
| 4 | 278000218 | Wire Seal |
| 5 | 211000021 | PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership |
| 6 | 234052600 | Flat Washer 5 mm, Stainless |
| 7 | 204300204 | HOSE 16 MM - Call your local BRP dealership |
| 8 | 293650045 | Tridon Gear Clamp |
| 9 | 423465057 | Formed Hose This part replaces 204300171. |
| 10 | 423465058 | Ride Plate Hose This part replaces 204300172. |
| 11 | 414115200 | Tie-Rap 180 mm |
| 12 | 204130174 | Y-Fitting |
