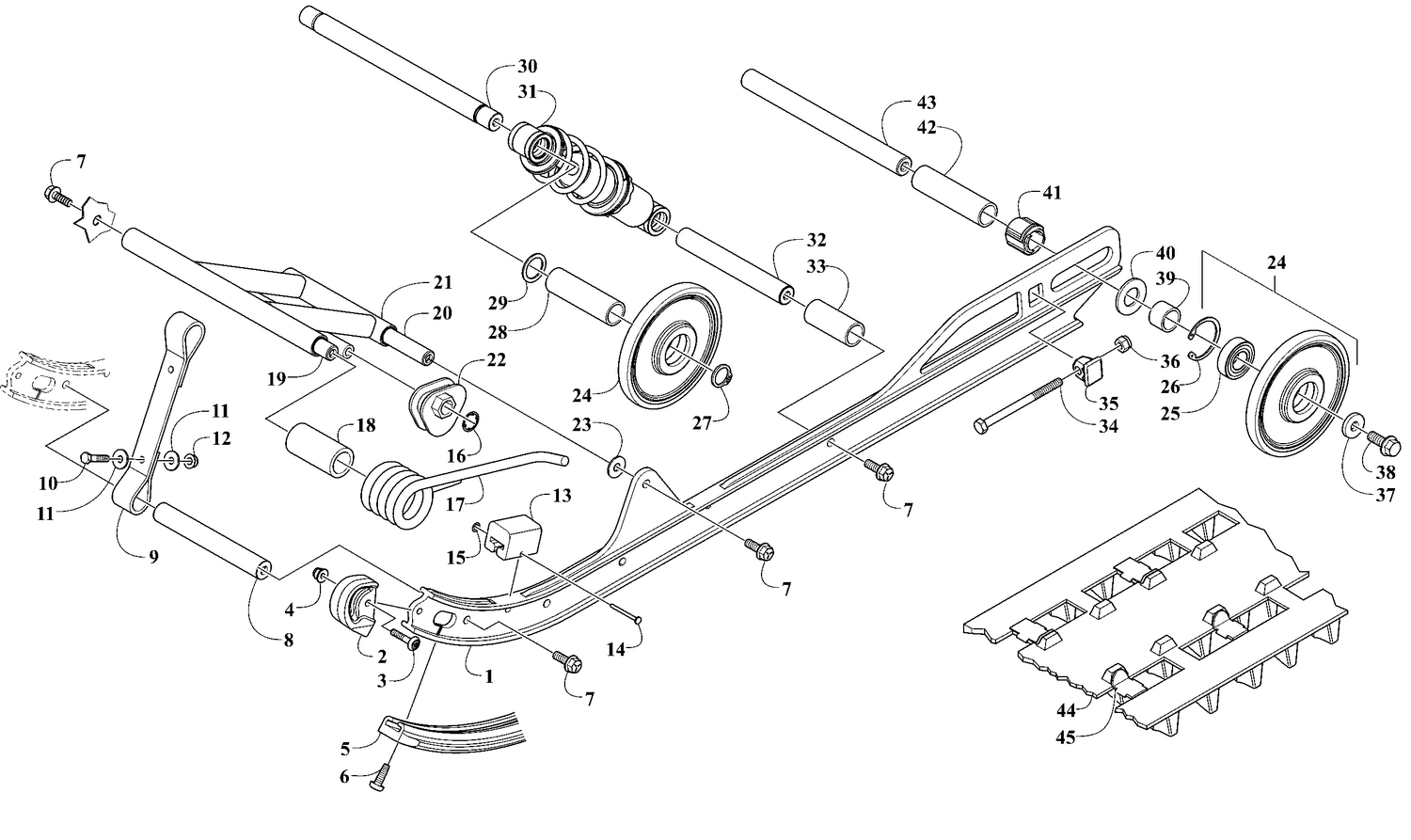

Rear Suspension — Parts Catalog

Ref	Part Number	Description
1	4604-563	Rail
2	4604-093	Slide Rail End Cap
3	8476-630	Machine Screw M6X1.0
4	8427-602	Hex Flange Elastic Nut M6X1.0
5	4604-554	Black, Wearstrip
6	2623-315	Machine Screw
7	1623-566	Cap Screw 5/16-18
8	4604-276	Axle Cross Brace
9	4604-442	LImiter Strap
10	8002-043	Cap Screw 1/4-20 X1.125
11	8050-222	Flat Washer 1/4 X .734 X .063
12	8047-366	Elastic Stop Nut 1/4-20
13	0104-631	Shock Pad
14	0123-767	Rivet 1/8 X 1.50
15	0423-090	Nut Press On (Pushnut) - 1/8 Stud
16	0623-138	Retaining Ring
17	3704-172	RH Suspension Spring
17	3704-173	LH Suspension Spring
18	3602-236	Spacer
19	3604-605	Axle
20	4604-482	Axle Lower Arm
21	3704-655	Front Arm
22	1604-204	Black, RH Block Spring Adjuster
22	1604-205	Black, LH Block Spring Adjuster
23	8050-252	Flat Washer 5/16 X .875 X .063
24	4604-355	Idler Wheel
25	3604-033	Bearing
26	0623-946	Retaining Ring
27	1423-110	Retaining Ring
28	4604-258	Rear Wheel Spacer
29	0623-912	Flat Washer
30	4604-370	Axle
31	4703-355	Shock / Spring Ass'y
32	4604-369	Axle
33	4604-275	Lower Shock Spacer
34	1623-682	Cap Screw M8 X 1.25 X 100
35	3604-647	Track Adjuster
36	8422-802	Elastic Locking NutM6X1.0
37	0623-664	Flat Washer 1.00X.390X.164
38	1623-427	Cap Screw 3/8-16X1
39	4604-484	Rear Wheel Spacer 17.87
40	0623-921	Flat Washer
41	3604-934	Rear Wheel Spacer
42	4604-483	Rear Wheel Spacer
43	3604-542	Rear Axle
44	3602-035	Track Ass'y
