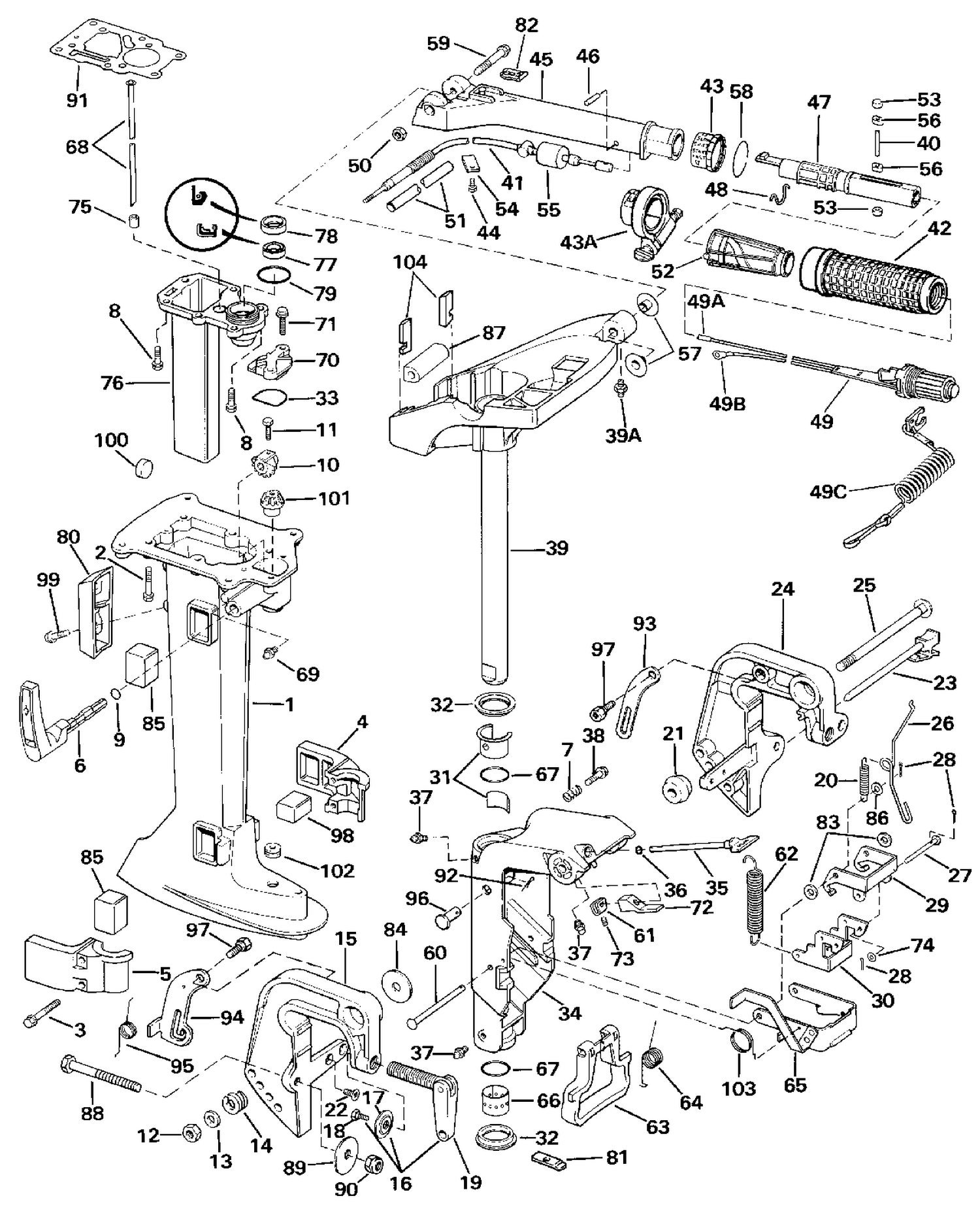

| Ref | Part Number | Description |
|---|
| 1 |
0431969 |
EXHAUST HOUSING ASSY. This part replaces 0328458. |
| 3 |
0325115 |
SCREW, Oil tank/EMM mount |
| 4 |
0324596 |
BRACKET, Lower mount, port |
| 5 |
0324597 |
BRACKET, Lower mount, stbd. |
| 6 |
0397702 |
HANDLE, Gearshift This part replaces 0389569. |
| 10 |
0324608 |
GEAR, Shift, shaft |
| 11 |
0327794 |
SCREW, Base to carburetor |
| 13 |
0309335 |
WASHER |
| 14 |
0302051 |
SPRING Tilting bolt |
| 15 |
0329910 |
STERN BRACKET ASSY., Stbd. This part replaces 0394163. |
| 16 |
0391421 |
CLAMP SCREW & HANDLE |
| 16 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0388347. |
| 20 |
0202021 |
SPRING, Link to shallow water drive |
| 21 |
0301983 |
CONICAK WASHER,Stern brkt |
| 22 |
0901889 |
SCREW |
| 23 |
0432453 |
KNOB & TILT PIN ASSY. This part replaces 0390441. |
| 24 |
0329909 |
STERN BRKT. ASSY., Port This part replaces 0394162. |
| 25 |
0326134 |
BOLT, Tilting |
| 26 |
0324588 |
LINK , Reverse lock arm |
| 27 |
0324582 |
PIN, Link locking lever |
| 29 |
0324580 |
LINK, Reverse lock |
| 30 |
0324581 |
LEVER, Reverse lock |
| 31 |
0392319 |
FRICTION PLATE, Pad & bushing |
| 32 |
0324576 |
WASHER, Thrust, seal & pivot tube |
| 34 |
0434024 |
SWIVEL BRACKET Assy This part replaces 0394568. |
| 35 |
0434050 |
TILT KNOB KIT This part replaces 0394598. |
| 38 |
0324603 |
SCREW, Cover to base |
| 39 |
0394059 |
STEERING BRACKET |
| 41 |
0397004 |
THROTTLE CABLE ASSY |
| 42 |
0395240 |
GRIP ASSY ., |
| 43A |
0394522 |
THROTTLE FRICTION CONTROL |
| 44 |
0909676 |
SCREW |
| 45 |
0398736 |
HANDLE, Steering |
| 49 |
0398692 |
IDLE STOP SWITCH ASSY. |
| 52 |
0329882 |
GRIP&HELIX AY |
| 54 |
0324952 |
CLAMP |
| 57 |
0335426 |
BUSHING, Handle to bracket This part replaces 0324594. |
| 58 |
0325101 |
SPRING, Throttle friction |
| 59 |
0324602 |
VIS, barre |
| 60 |
0324583 |
PIN, Reverse lock |
| 61 |
0324586 |
LEVER, Reverse lock release |
| 62 |
0324591 |
SPRING, Carrying handle |
| 63 |
0394907 |
CARRYING HANDLE |
| 65 |
0391317 |
LINK, Shallow water drive |
| 65 |
0392180 |
LINK & LEVER ASSY |
| 66 |
0334360 |
BUSHING, Lower, swivel bracket This part replaces 0324573. |
| 68 |
0331330 |
WATER TUBE Std. |
| 68 |
0331331 |
WATER TUBE Long |
| 68 |
0331332 |
WATER TUBE (SRL Only) |
| 70 |
0324610 |
COVER, Exhaust housing |
| 72 |
0324584 |
SPACER, Reverse lock release |
| 73 |
0324967 |
VIS |
| 76 |
0395214 |
EXHAUST TUBE, Inner |
| 78 |
0330550 |
GASKET, Housing |
| 79 |
0330551 |
O-RING |
| 80 |
0325936 |
EXHAUST BAFFLE |
| 81 |
0330062 |
SPACER, Auxilary motor bracket |
| 84 |
0304278 |
WASHER |
| 85 |
0318997 |
LATERAL MOUNT, Lower |
| 85 |
0326278 |
RUBBER MOUNT |
| 86 |
0303887 |
WASHEER, Pin to swivel bracket |
| 87 |
0327499 |
SEAL, Lower engine cover |
| 88 |
0432294 |
SCREW & NUT ASSEMBLY This part replaces 0313966. |
| 91 |
0330564 |
GASKET, Exhaust housing |
| 93 |
0328998 |
ARM, Tilt lock port. |
| 94 |
0328999 |
ARM, Tilt lock starboard |
| 95 |
0329002 |
SPRING, Tilt lock link |
| 96 |
0329531 |
PIN, Tilt arm |
| 97 |
0328895 |
SCREW, Tilt lock |
| 98 |
0326302 |
START BUTTON, Inner This part replaces 0324968. |
| 100 |
0327030 |
SILENCING PAD |
| 101 |
0324607 |
PINION, Shift rod |
| 102 |
0552360 |
PASSE-FILS, tige de commande de sens de marche |
| 103 |
0324355 |
SPRING, Shallow water drive |
