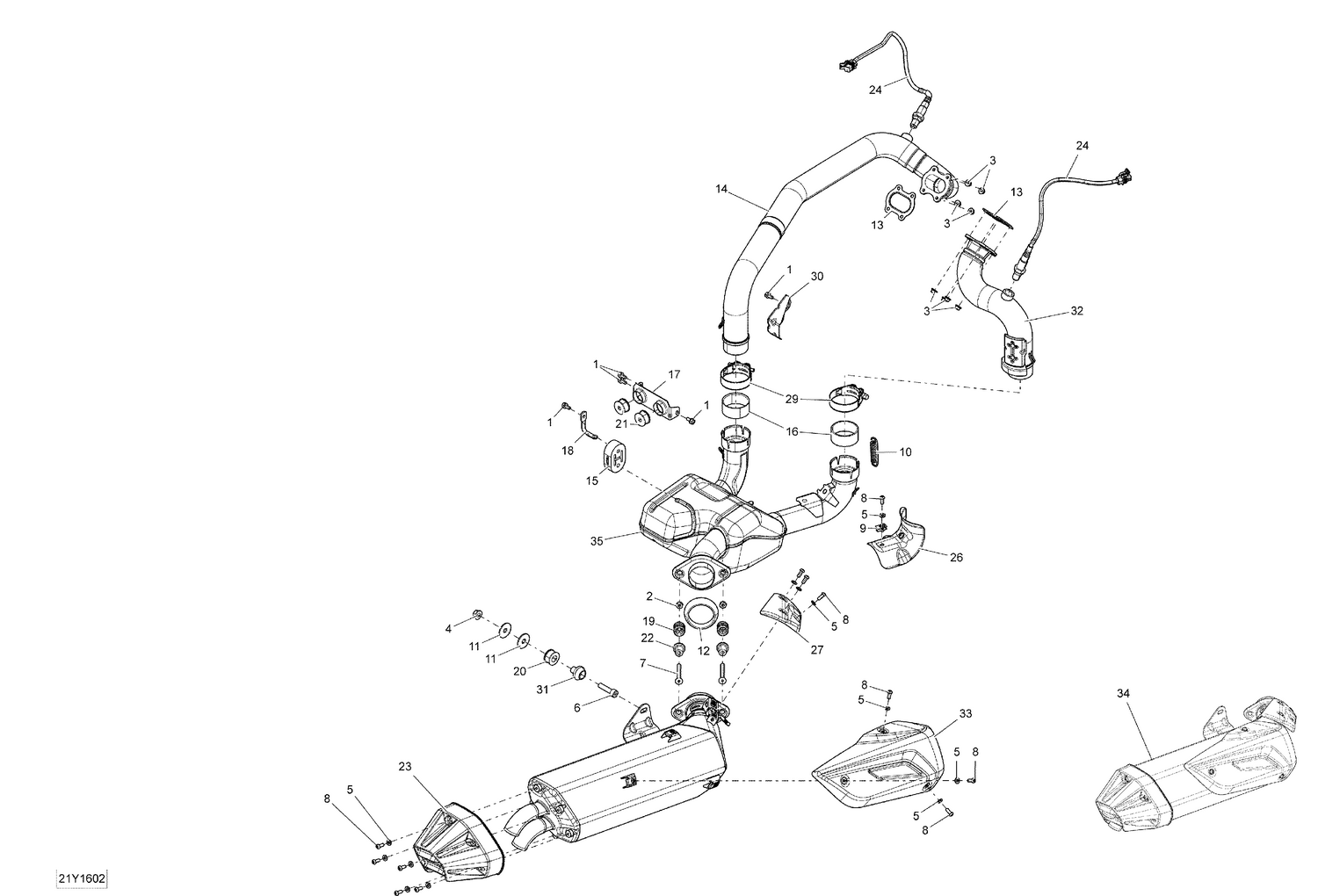

| Ref | Part Number | Description |
|---|
| 1 |
210261250 |
Hex. Flange Screw M6 X 12 |
| 2 |
232581600 |
Hex. Elastic Nut M8 |
| 3 |
233061414 |
Hex. Flange Nut M6 |
| 4 |
233101600 |
Hex. Flange Nut M10 |
| 5 |
234061600 |
Stainless Flat Washer M6 |
| 5 |
234061670 |
Black, Flat Washer 6 mm |
| 6 |
244004060 |
Hex. Screw M10 X 40, Scotch Grip |
| 7 |
250000404 |
SOCKET SCREW, M8 X 75 S. GRIP - Call your local BRP dealership |
| 8 |
250000437 |
Stainless, Socket Screw, M6X16 S.Grip |
| 8 |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 9 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 10 |
415107100 |
Spring |
| 11 |
506150000 |
Washer 10 mm |
| 12 |
514053677 |
Exhaust Gasket |
| 13 |
707600296 |
Seal |
| 14 |
707600634 |
PIPE_EXHAUST IN WELD - Call your local BRP dealership |
| 15 |
707600638 |
Rubber Bumper |
| 16 |
707600650 |
Pipe Slip Joint |
| 17 |
707600661 |
Front Bracket |
| 18 |
707600666 |
RETAINING ROD - Call your local BRP dealership |
| 19 |
707600682 |
Spring |
| 20 |
707603323 |
Vibration Damper This part replaces 707600701. |
| 21 |
707600702 |
Anti-Vibration Rubber |
| 22 |
707600750 |
Bushing |
| 23 |
707601995 |
Carbon Black, RH Rear Muffler Trim This part replaces 707601048. |
| 24 |
707600872 |
Oxygen Sensor |
| 26 |
707601042 |
Heat Shield |
| 27 |
707601054 |
Carbon Black, Heat Shield |
| 29 |
707601249 |
COLLAR - Call your local BRP dealership |
| 30 |
707601251 |
DEFLECTOR - Call your local BRP dealership |
| 31 |
707601276 |
BUSHING - Call your local BRP dealership |
| 32 |
707601367 |
REAR EXHAUST TUNED PIPE - Call your local BRP dealership |
| 33 |
707601381 |
Carbon Black, Heat Shield |
| 34 |
707601706 |
MUFFLER_EXHAUST ASSY - Call your local BRP dealership |
