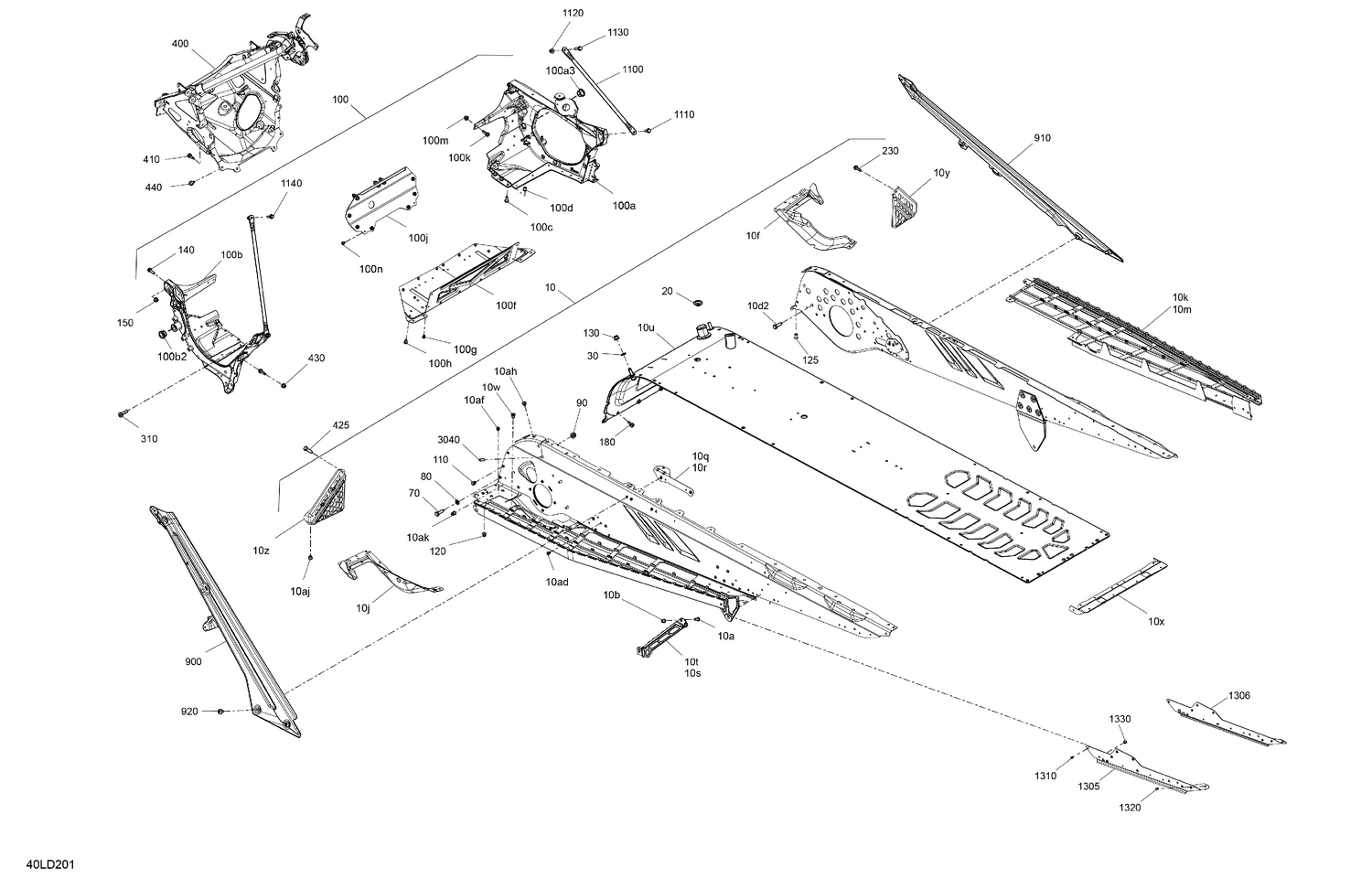

| Ref | Part Number | Description |
|---|
| 10a |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 10ad |
390909100 |
Avex Rivet |
| 10af |
390909200 |
Avex Rivet |
| 10ah |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10aj |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 10ak |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10b |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 10d2 |
250300027 |
Clinch Stud M6 X 20 |
| 10f |
518332455 |
Footrest Reinforcement |
| 10j |
518332456 |
Footrest Reinforcement |
| 10k |
518335186 |
RH Footrest |
| 10m |
518335187 |
LH Footrest |
| 10q |
518331744 |
LH Under Chassis Reinforcement |
| 10r |
518331745 |
RH Under Chassis Reinforcement |
| 10s |
518334614 |
RH Roller Link |
| 10t |
518334615 |
LH Roller Link |
| 10u |
518334488 |
Radiator Tunnel 137 Ass'y |
| 10w |
605636003 |
Clinch Nut M6 Hexsert |
| 10x |
518333637 |
Rear Plate |
| 10y |
518332462 |
RH Footrest |
| 10z |
518332463 |
LH Footrest |
| 20 |
293730052 |
Black, Plug |
| 30 |
250200146 |
Conical Spring Washer M8 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505072690 |
Leg Bushing |
| 100b2 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332716 |
Bottom Plate |
| 100g |
390909100 |
Avex Rivet |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j |
518330100 |
Front Member |
| 100k |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100m |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100n |
390909100 |
Avex Rivet |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 120 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 125 |
293150268 |
Rivet Ornit 6,5 X 18.5 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 400 |
518334460 |
Chassis Suspension Module |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 425 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 430 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 440 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 900 |
518334726 |
Platinum Silver, LH Diagonal Cross Member Ass'y |
| 910 |
518334727 |
Platinum Silver, RH Rear Diagonal Cross Member |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1305 |
518334759 |
Platinum Silver, LH Rear Tunnel Reinforcement 146 |
| 1306 |
518334760 |
Platinum Silver, RH Rear Tunnel Reinforcement 146 |
| 1310 |
390909200 |
Avex Rivet |
| 1320 |
390909100 |
Avex Rivet |
| 1330 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
