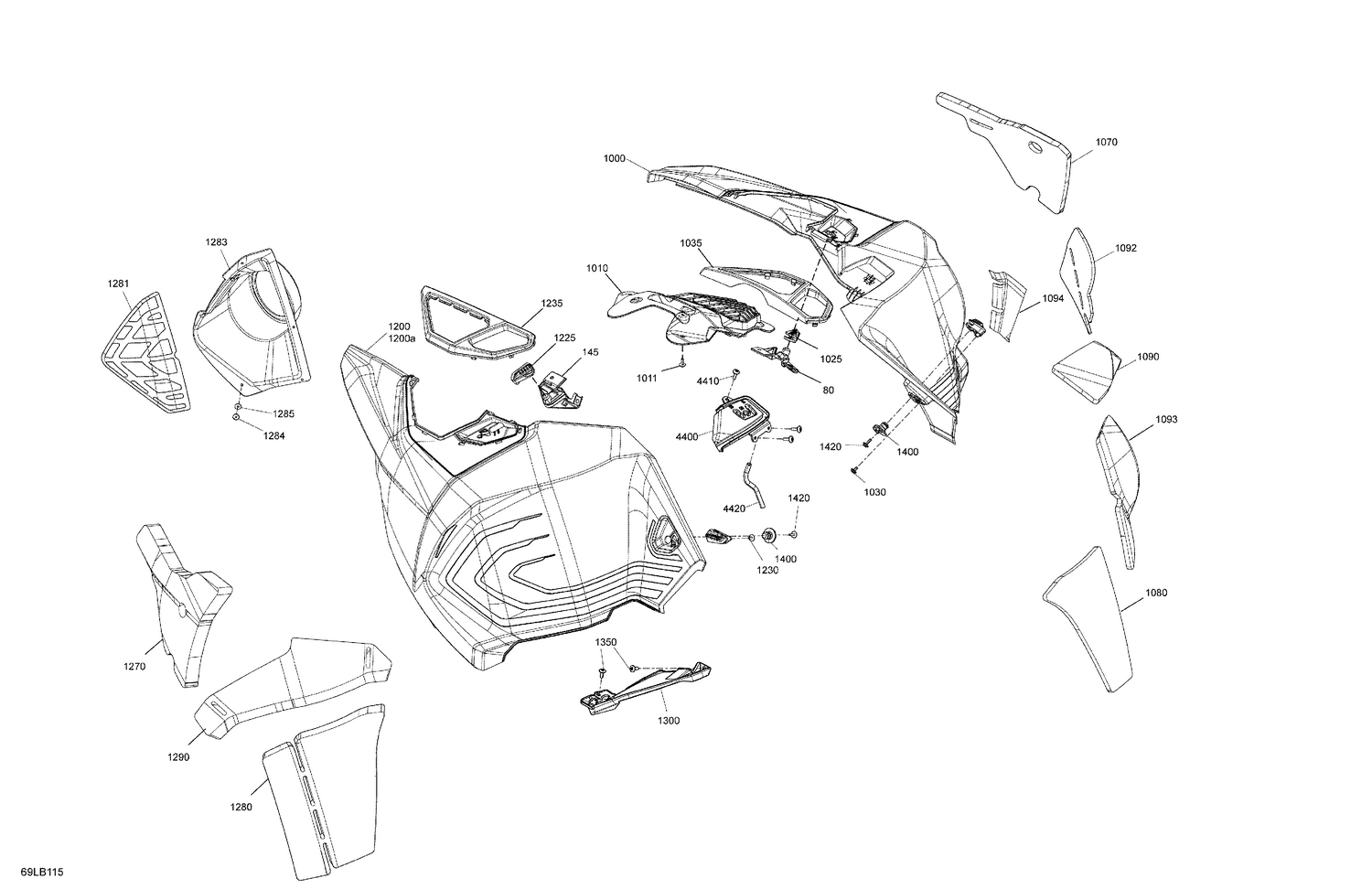

07- Body - Side Panels
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 517307422 | RH Knob Part 24" |
| 145 | 517307423 | LH Knob Part 24" |
| 1000 | 517306817 | RH Side Panel 24" With Gearbox |
| 1010 | 517307408 | RH Grille |
| 1011 | 250000725 | Screw M4 X 16 |
| 1025 | 517305773 | RH Rear Latch |
| 1030 | 250000805 | Plastite Screw M4 X 10 |
| 1035 | 517307906 | White, RH Large Trim |
| 1070 | XXX | Not Available As Spare Parts |
| 1080 | XXX | Not Available As Spare Parts |
| 1090 | XXX | Not Available As Spare Parts |
| 1092 | XXX | Not Available As Spare Parts |
| 1093 | XXX | Not Available As Spare Parts |
| 1094 | 517307903 | RH Side Panel Heat Shield |
| 1200a | 517307250 | LH Side Panel 24" |
| 1225 | 517305774 | LH Rear Latch |
| 1230 | 250000805 | Plastite Screw M4 X 10 |
| 1235 | 517307907 | Whitem LH Large Trim |
| 1270 | XXX | Not Available As Spare Parts |
| 1280 | 517308034 | LH Rear Side Panel Foam |
| 1281 | 508001181 | Air Filter |
| 1283 | 517308018 | Ventilation Duct |
| 1284 | 293150104 | Pop Rivet 3/16 |
| 1285 | 517124300 | Washer |
| 1290 | XXX | Not Available As Spare Parts |
| 1300 | 517307449 | LH Snow Deflector 24" |
| 1350 | 250000721 | Torx Truss Screw M6 X 16 |
| 1400 | 517305985 | Rear Stud |
| 1420 | 250000725 | Screw M4 X 16 |
| 4400 | 517306818 | Shift Lever Grille |
| 4410 | 250000528 | Torx Screw M5 X 20 |
