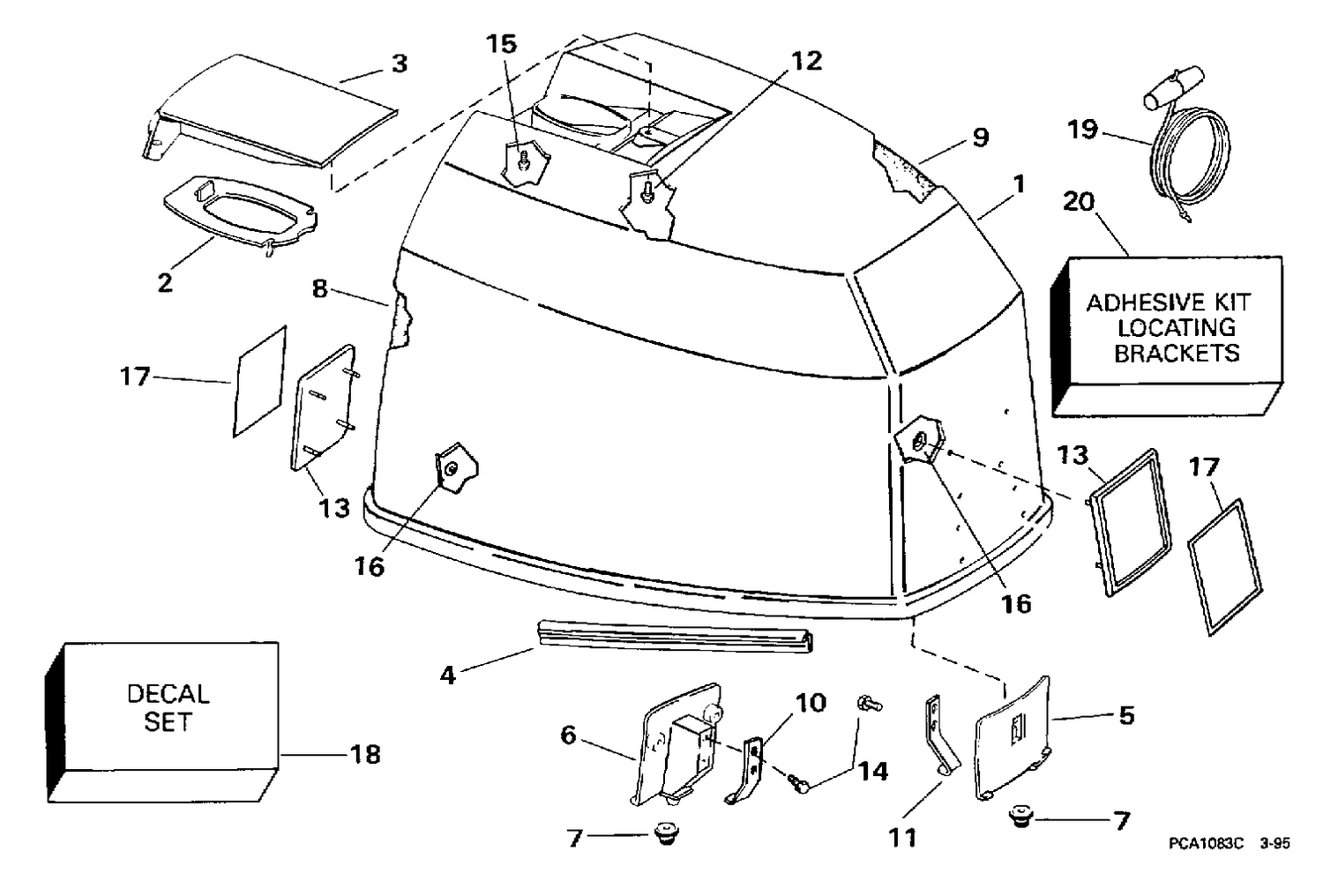

ENGINE COVER -- JOHNSON
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438775 | ENGINE COVER ASSY., 90 |
| 1 | 0438776 | ENGINE COVER ASSY., 115 |
| 1 | 5000344 | Cover Ay This part replaces 0438782. |
| 4 | 0329548 | SEAL |
| 5 | 0336991 | BRACKET, Locating, front |
| 6 | 0336992 | BRACKET, Locating, rear |
| 8 | 0341534 | SOUND BLANKET, Side |
| 9 | 0341535 | SOUND BLANKET, Top |
| 11 | 0323175 | HOOK , Motor Cover, Front |
| 13 | 0331856 | APPLIQUE, Front |
| 17 | 0343683 | PLATE, Front & rear, 90 |
| 17 | 0343684 | PLATE, Front & rear, 115 |
| 18 | 0437766 | DECAL SET |
| 18 | 0438779 | DECAL SET, 90 |
| 18 | 0438780 | DECAL SET, 115 |
| 19 | 0378347 | CORDE DE LANCEUR |
