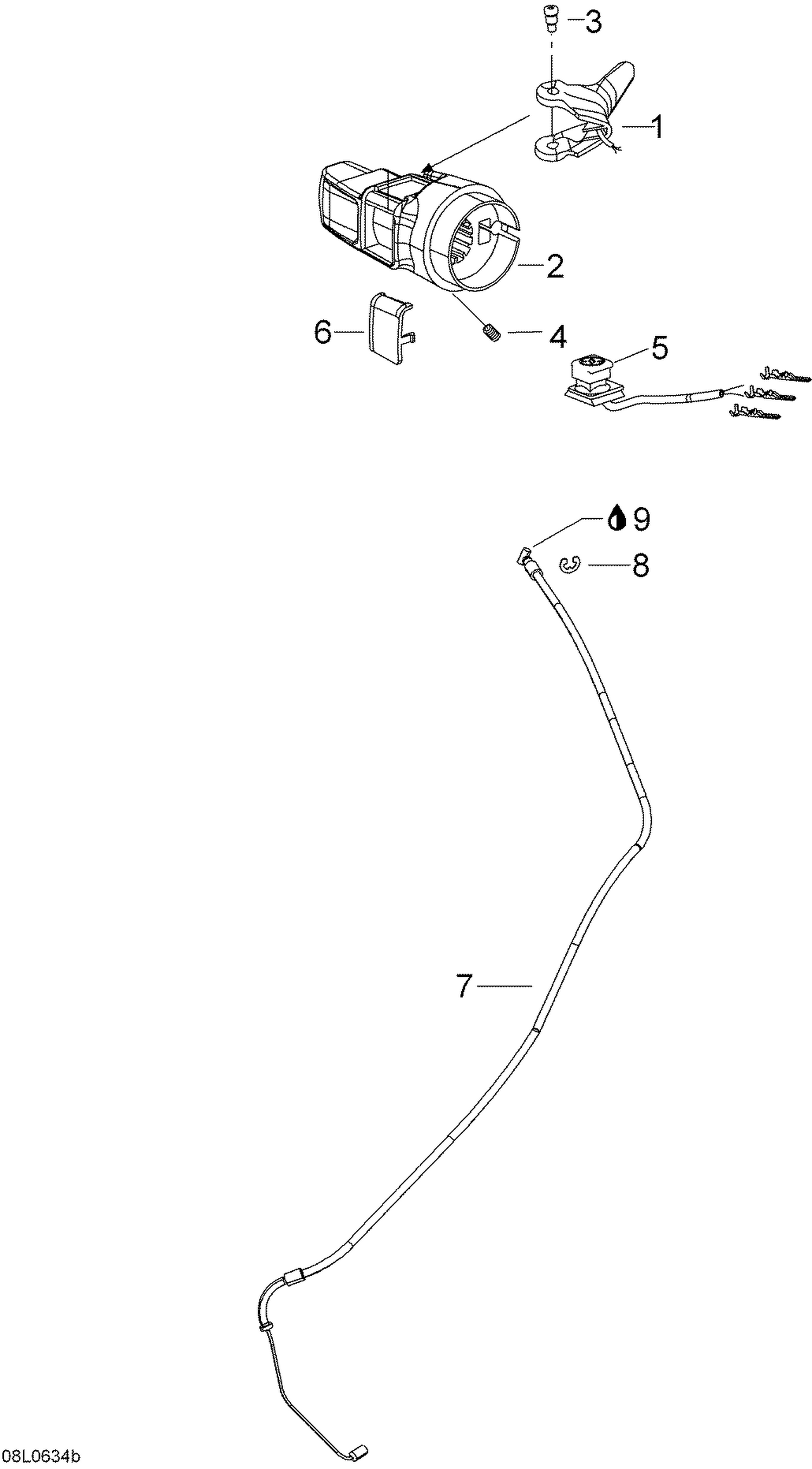

01- Throttle Handle And Housing
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512059481 | Throttle Handle This part replaces 512059107. |
| 2 | 512059763 | THROTTLE HOUSING - Call your local BRP dealership |
| 3 | 732601143 | Screw |
| 4 | 414440800 | Socket Set Screw M8 X 10 |
| 5 | 515175410 | Emergency switch |
| 6 | 572100901 | Cover |
| 7 | 605352663 | Throttle cable |
| 8 | 31038 | Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
