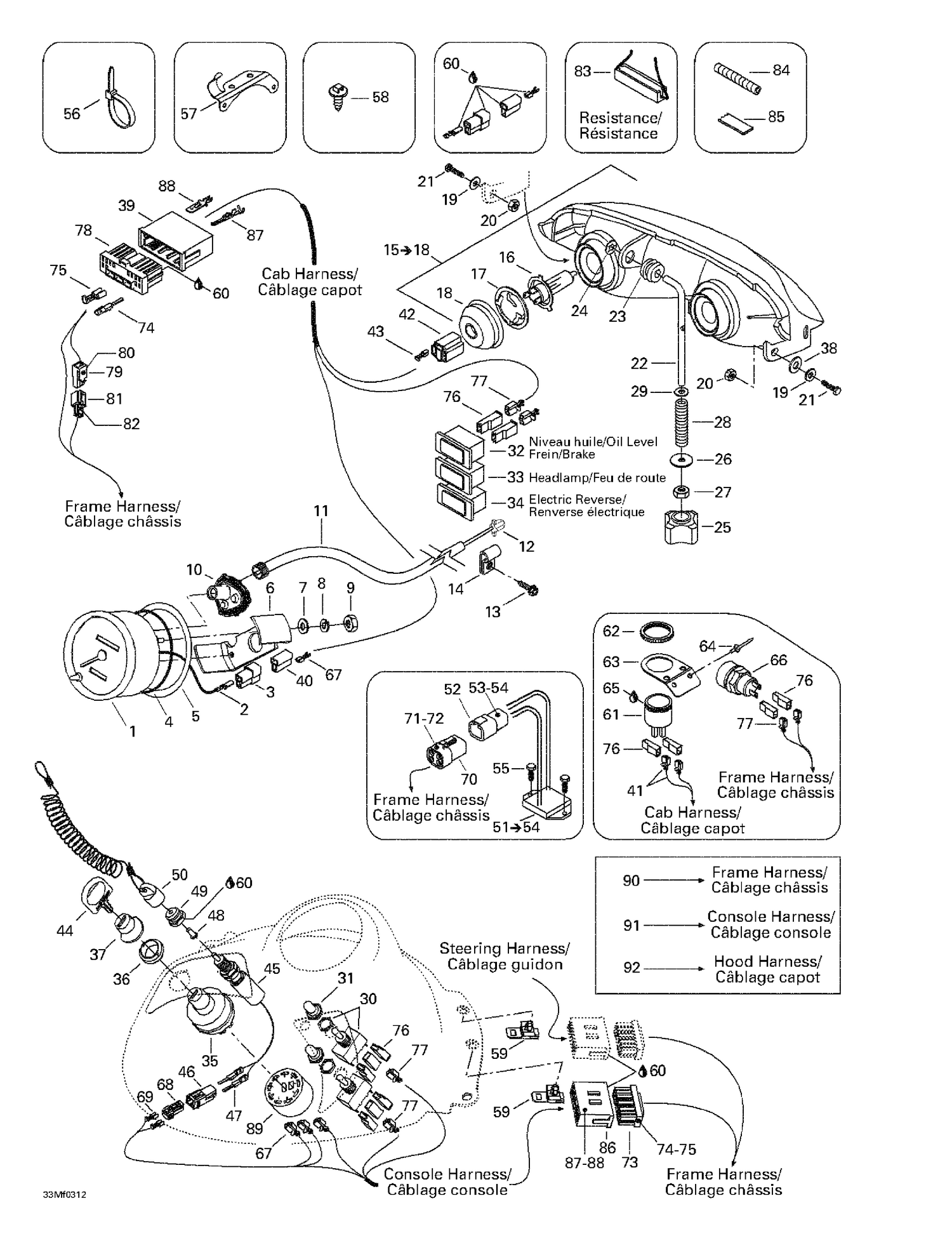

| Ref | Part Number | Description |
|---|
| 1 |
515175335 |
Speedometer, Kmh |
| 2 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 3 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| 4 |
414807100 |
O-Ring |
| 5 |
517258500 |
Washer |
| 6 |
414806500 |
Case Holder |
| 7 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 8 |
414806700 |
Lock Washer |
| 9 |
414806900 |
Nut |
| 10 |
515175400 |
Drive Angle |
| 11 |
415101500 |
Speedometer Cable |
| 12 |
572010100 |
SPEEDO DRIVE INSERT - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - Hex. Tapping Screw |
| 14 |
414176000 |
Open Clamp |
| 16 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410504401. |
| 17 |
515176385 |
BULB HOLDER - Call your local BRP dealership This part replaces 515175910. |
| 18 |
515175911 |
COVER - Call your local BRP dealership |
| 19 |
234051410 |
Flat Washer M5 |
| 20 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 21 |
207053544 |
Hex. Screw M5 X 35 |
| 22 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 23 |
415100800 |
Grommet - Call your local BRP dealership |
| 24 |
732610072 |
Push Nut |
| 25 |
515175548 |
Handle - Call your local BRP dealership |
| 26 |
224060251 |
Washer |
| 27 |
232561414 |
Elastic Stop Nut M6 |
| 28 |
415100600 |
SPRING - Call your local BRP dealership |
| 29 |
234061410 |
Flat Washer 6 mm |
| 30 |
410107300 |
Switch (Heating Grip) |
| 31 |
515175281 |
Switch Cover |
| 32 |
515175728 |
PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership |
| 33 |
515175726 |
PILOT LAMP, HEADLAMP - Call your local BRP dealership |
| 34 |
410113400 |
PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership |
| 35 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113602. |
| 36 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 37 |
570013700 |
Switch Boot |
| 38 |
234001410 |
Flat Washer 10 mm |
| 39 |
515175720 |
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 40 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 41 |
409010600 |
FEMALE TERMINAL - Call your local BRP dealership |
| 42 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 43 |
515175320 |
FEMALE TERMINAL - Call your local BRP dealership |
| 44 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 45 |
515175653 |
Brake Switch |
| 46 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 47 |
515175232 |
Male Terminal |
| 48 |
570151100 |
Plunger Cap |
| 49 |
515145900 |
Switch Nut |
| 50 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 52 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 53 |
515175568 |
Male Terminal |
| 54 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 55 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 56 |
293750001 |
Tie Wrap 94 mm |
| 57 |
515175254 |
Cable Support |
| 58 |
293730040 |
Mount Dart This part replaces 293730018. |
| 59 |
515175283 |
Housing Support |
| 60 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 61 |
515176035 |
HORN - Call your local BRP dealership This part replaces 515175931. |
| 62 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 63 |
515175688 |
PLATE - Call your local BRP dealership |
| 64 |
390402200 |
Pop Rivet 3/16" |
| 65 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 66 |
415130372 |
Push Button This part replaces 415101200. |
| 67 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 68 |
515175658 |
Female Housing, 2 Circuits |
| 69 |
515175231 |
Female Terminal |
| 70 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 71 |
278001474 |
Female Lock, 4 Circuits |
| 72 |
515175567 |
Female Terminal |
| 73 |
515175349 |
FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 74 |
515175231 |
Female Terminal |
| 75 |
515175282 |
Female Terminal |
| 76 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 77 |
409010100 |
Female Terminal |
| 78 |
515175719 |
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 79 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 80 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 81 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 82 |
515175282 |
Female Terminal |
| 83 |
515175241 |
Resistance |
| 84 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 85 |
293740005 |
Tape |
| 86 |
515175351 |
MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership |
| 87 |
515175232 |
Male Terminal |
| 88 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 89 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 90 |
515175841 |
Frame Harness, Not Shown |
| 91 |
515175623 |
Console Harness, Not Shown |
| 293750002 |
Tie |
Wrap 142 mm 293750002 |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
| 515175336 |
Indicateur |
De Vitesse, Mph 515175336 |
| 515175336 |
Speedometer, |
Mph 515175336 |
