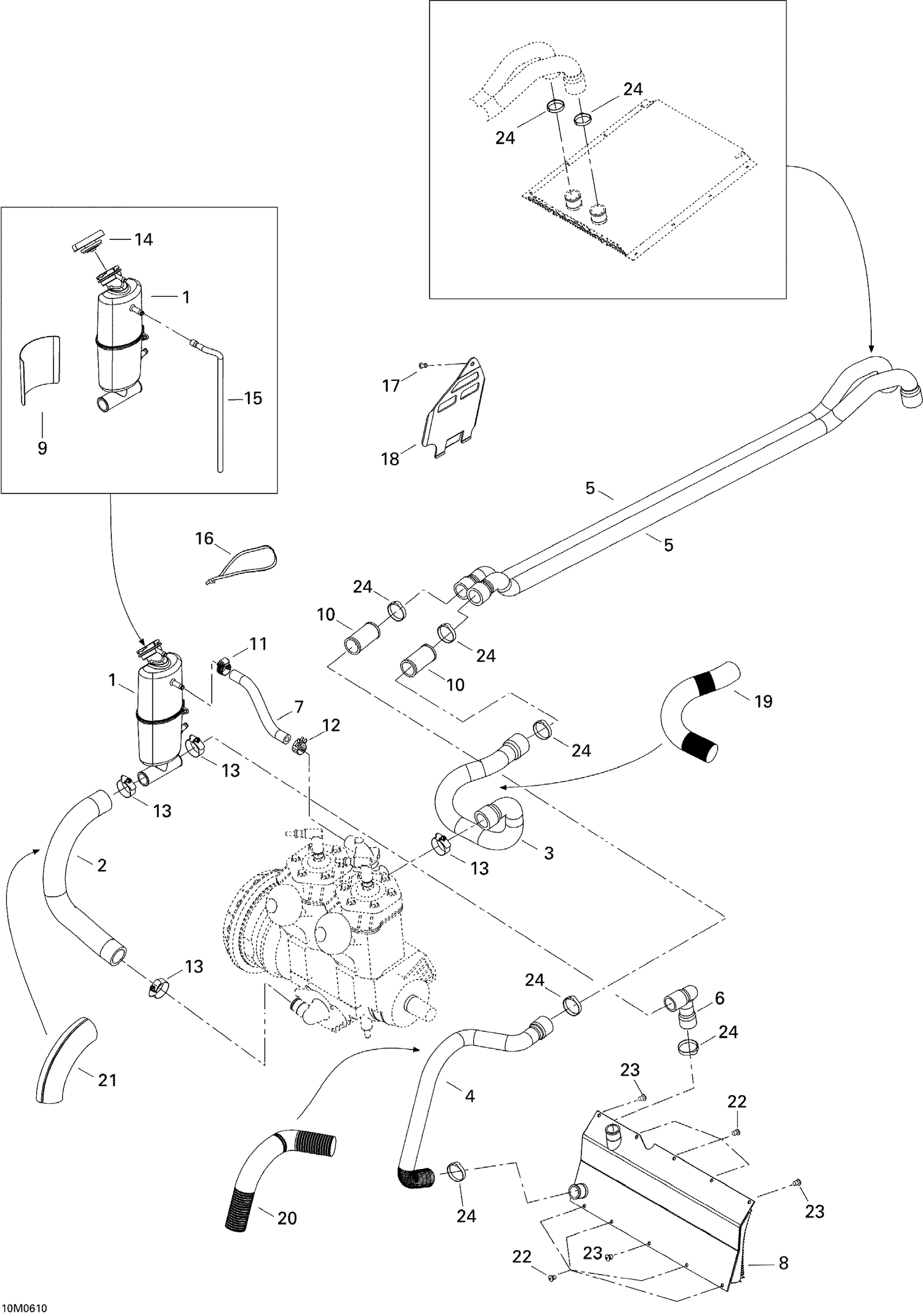

01- Cooling System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000402 | COOLANT TANK - Call your local BRP dealership |
| 2 | 509000135 | ENGINE INLET HOSE - Call your local BRP dealership |
| 3 | 509000220 | FRONT ENGINE HOSE OUTLET - Call your local BRP dealership |
| 4 | 509000222 | FRONT RADIATOR HOSE INLET - Call your local BRP dealership |
| 5 | 509000223 | REAR RADIATOR HOSE INLET - Call your local BRP dealership |
| 6 | 509000266 | RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 7 | 509000093 | Hose 8 mm |
| 8 | 509000391 | Front Radiator |
| 9 | 509000190 | REFECTIVE SHEET - Call your local BRP dealership |
| 10 | 509000224 | Fitting |
| 11 | 293650170 | Tridon Gear Clamp |
| 12 | 414655700 | Spring Clamp |
| 13 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 14 | 509000187 | Pressure Cap |
| 15 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 16 | 293750008 | Tie Wrap 368 mm |
| 17 | 390909200 | Avex Rivet |
| 18 | 509000257 | DEFLECTOR - Call your local BRP dealership |
| 19 | 219704402 | Tubing 25 MM 1000MM Long |
| 20 | 219704402 | Tubing 25 MM 1000MM Long |
| 21 | 219704428 | Tubing 35 MM 1000MM Long |
| 22 | 390402200 | Pop Rivet 3/16" |
| 23 | 390909100 | Avex Rivet |
